SONY CCD sensor is adopted for better service life, reliability and stability.

DSP digital signal processing technology makes the image clearer, clearer and more contrast.

Excellent elimination of interference ultrasound in the signal, high quality image and high sensitivity

Use 3D digital noise reduction system to obtain clearer color images

Automatic gain control: advanced digital backlight compensation function

Compact structure, compact appearance, low power consumption, can provide camera module,Size:32X32(mm)

Product characteristics
1SONY CCD sensor is adopted for better service life, reliability and stability.
2DSP digital signal processing technology makes the image clearer, clearer and more contrast.
3. Excellent elimination of interference ultrasound in the signal, high quality image and high sensitivity
4Use 3D digital noise reduction system to obtain clearer color images
5. Automatic gain control: advanced digital backlight compensation function
6. Compact structure, compact appearance, low power consumption, can provide camera module,Size: 32x32 (mm)
The image is clear, the color is true, and the sense of hierarchy is strong. lt is the best choice for industrial cameras used in industrial instruments.
【Application field】
Industrial inspection, industrial measurement, medical imaging, image recognition, positioning, industrial monitoring, instrumentation, machine vision and other industrial automation fields.

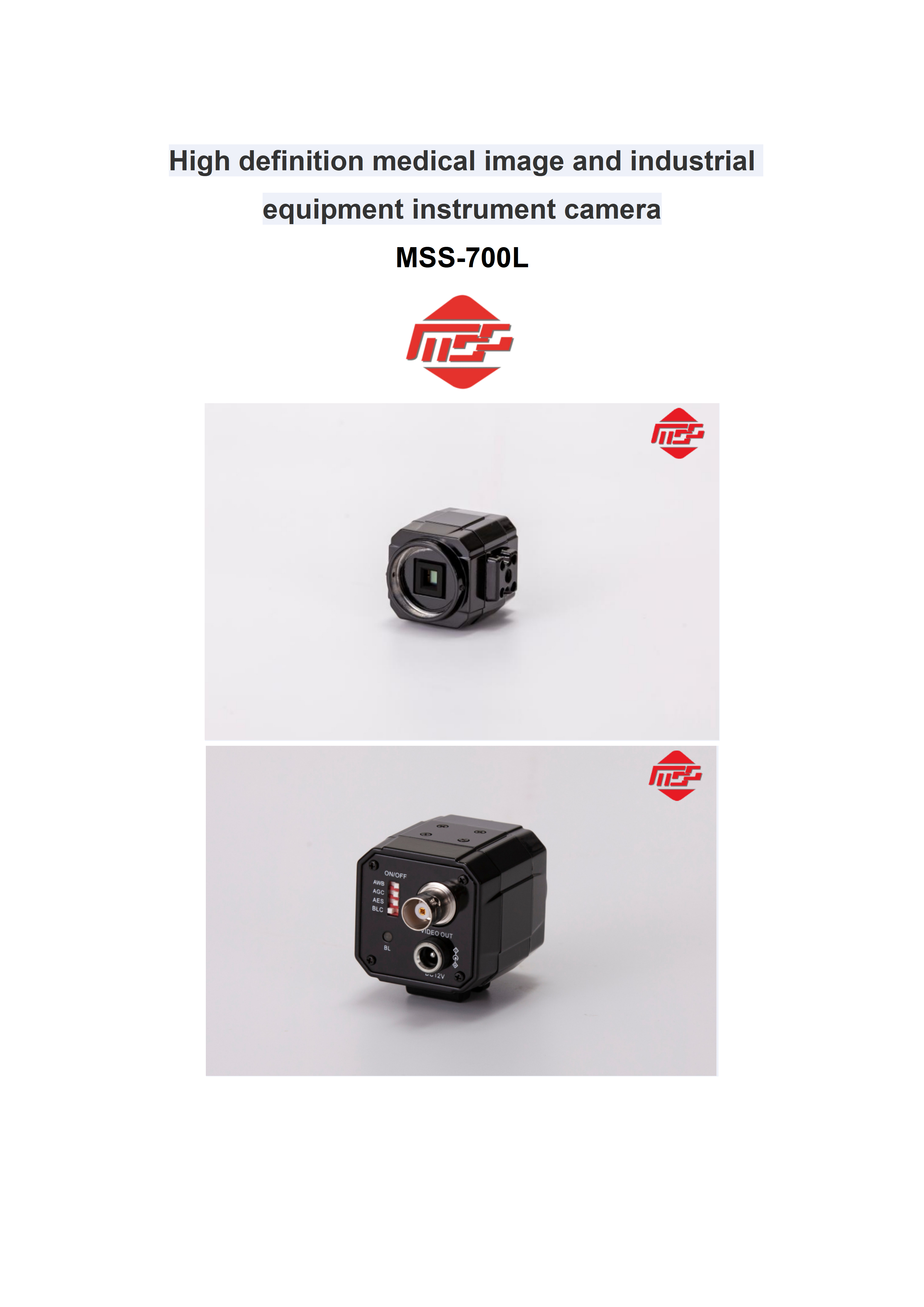

MODEL MSS-700L(color)
Image Sensor Device 1/3" SONY EXview HAD CCD II
Effective Pixels PAL: 976×494
System of Signal PAL
Horizontal Resolution 700 LINE
Minimum illumination 5LUX
S/N Ratio > 60db
Auto White Balance ON/OFF (Switchable)
Automatic Gain Control ON:1/OFF:0 (Switchable)
Electronics Shutter Control OFF:1 / 60sec; ON: (Switchable) 1/60-1/100,000/sec Automatic adjustment
Backlight Compensation ON/OFF (Switchable)
Lens mounting C
Video output 1.0Vp-p,75Ω
Power Supply DC12V
Operating Temperature -20C-+50
Dimension(mm) 43(W)×47(H)×66(D)
Weight(g) About 135g
