Specifications
Color :
Customized
Use :
Warehouse Rack
Material :
Q235B Steel
Scale :
Heavy Duty
Surface treatment :
Powder coating
Brand Name :
Shitong
Model Number :
Gravity Rack
Certification :
CE, TUV, ISO9001, IS014001
Place of Origin :
China
MOQ :
1000kg
Price :
$0.6-$1/kg
Payment Terms :
T/T,L/C
Supply Ability :
150tons/day
Delivery Time :
1-3 weeks
Packaging Details :
All goods packed with plastic wrap and fix with steel tape.
Product name :
Gravity pallet flow rack
Description
Customized Heavy Duty Gravity Pallet Flow Racking Q235B Steel Pallet Storage Shelves

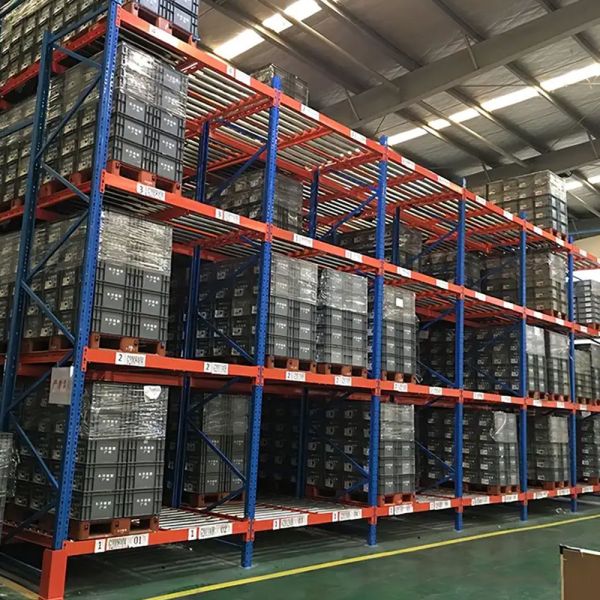

High-throughput distribution facilities require efficient storage layouts that facilitate rapid inventory rotation while utilizing vertical space. Our customized heavy-duty pallet flow racking is engineered specifically to address these demands through a semi-automated, non-electrical design. Known as a dynamic Gravity Racking System, this setup relies on gravity to glide loaded pallets along a slight incline from the loading side to the opposite picking face. Forklifts are confined to separate loading and unloading ends, preventing cross-traffic collisions in forklift picking aisles. This continuous sliding movement relies on durable steel roller tracks integrated within reinforced lanes, ensuring efficient first-in, first-out (FIFO) logistics without electrical energy consumption.
Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage
Setup
The structural frame is manufactured from roll-formed Q235B steel structures to ensure high structural stability and resistance under dynamic loads up to 1,500 kg per pallet.
  • Incline and Flow Regulation: The inclined roller conveyor is set at a 2% to 4% slope to control flow speed, adjusted using integrated mechanical speed controllers/dampers to prevent pallets from accelerating excessively.
  • Component Assembly: The system comprises structural upright frames and load beams, frame protectors, row spacers, heavy-duty rollers, and secure pallet guide plates to prevent pallet misalignment during transit.
  • Separation Mechanism: An automatic pallet separator mechanism is installed at the unloading face to isolate the front pallet from the rear line, allowing operators to pick the lead pallet safely without back-pressure.
Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage
Segments
Integrating this heavy-duty Gravity Racking System is ideal for sectors handling uniform inventory sizes with fast stock turnaround times:
  • Food and Beverage Logistics: Supports high-turnover grocery lines and perishable items where strict FIFO control prevents stock expiration.
  • Chemical & Raw Material Storage: Organizes heavy industrial chemical drums and raw materials safely in dense, deep-lane gravity flow lanes.
  • Heavy Manufacturing: Provides stable storage for standardized machinery parts, steel components, and assembly materials.
  • Cold Storage Warehouses: Ideal for refrigerated zones where maximizing high density pallet storage directly reduces cooling energy costs per pallet position.
Customization
Nanjing Shitong Racking operates a 30,000-square-meter manufacturing plant. Every component is produced under strict quality checks, backed by verified CE and ISO certifications (ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018).
Technical FAQ for B2B Buyers
  • How do we determine the right flow rack dimensions?
    The structure is fully custom-built. To generate a complimentary custom CAD layout, we require your exact pallet dimensions (Length x Width x Height), maximum pallet weight, forklift reach height, and available warehouse area.
  • Are there specific pallet material requirements?
    Yes. Steel and heavy-duty plastic pallets operate most reliably on a gravity-driven flow rack. Standard wooden pallets are also acceptable, provided the bottom base is flat and free of broken boards that could obstruct smooth roller flow.
  • What is the maximum depth per lane?
    We typically design gravity flow tracks up to 20 meters deep, accommodating 10 to 15 pallets per lane depending on load weight and speed dampening requirements.
Every customized Gravity Racking System we manufacture is securely wrapped in industrial plastic wrap and secured with steel strapping to prevent damage during sea shipment from Nanjing or Shanghai ports within a 3-week lead time.
Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage
Applicable Industries
Metals, machinery parts, chemical drums, HVAC equipment, building supplies, and heavy industrial warehousing.
Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage Customized Heavy Duty Q235B Steel Gravity Pallet Flow Racking System for Warehouse Storage
