Overview

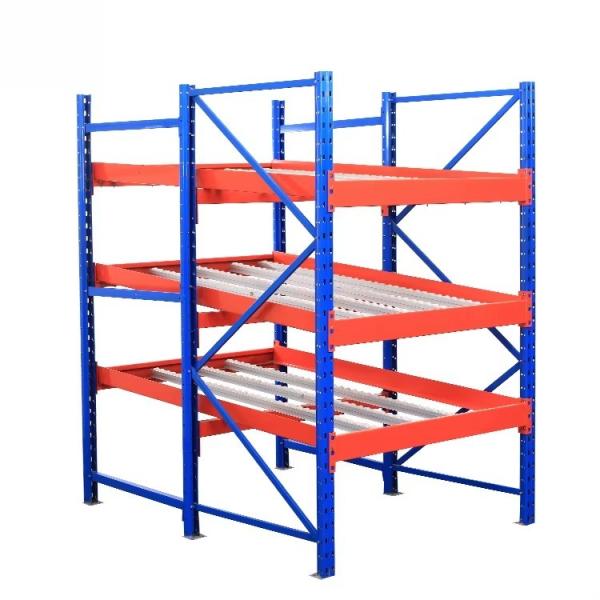

Designed for large cartons and heavy cases, Shitong Heavy Duty Gravity Carton Flow Racking ensures safe, controlled movement of bulky goods. It combines robust steel rollers and reinforced frames for long service life under high-throughput conditions.

How It Works
Heavy cartons are loaded into the rear lanes and roll gently toward the picking face on reinforced gravity rollers. Brake rollers and impact trays absorb the load, preventing damage and maintaining smooth flow.

Key Features

• Handles carton loads from 50 kg to 100 kg per lane position.

• Thick-gauge steel rollers for high durability.

• Reinforced frames with anti-skew devices for palletized cases.

• Corrosion-resistant finish for humid or demanding environments.

Customer Value

• Reduces forklift handling and increases warehouse safety.

• Lowers product damage during movement.

• Long service life reduces total cost of ownership.

Applications
Beverage distribution, industrial parts, canned goods, hardware and construction supplies.

FAQ:

1. How many parts does carton flow racking have?
Main parts include upright frame, beam, roller track or wheel bed, separator, roller support rail, and carton stop plate.
Optional parts include frame protector, upright protector, lane divider, and pick-to-light accessories.

2. How to control the speed of cartons on carton flow racking?
The flow speed depends on the lane incline and roller type. By adjusting the angle (usually 3–5°) or using brake rollers, the cartons will flow smoothly without impact.

3. What is the load capacity per carton?
Typically, each lane position can carry 20–50 kg per carton, depending on the roller system. Per lane capacity can reach 200–400 kg.

4. Will cartons get stuck when they flow down?
No, proper debugging will eliminate this. Correct roller spacing, lane angle, and carton base quality ensure smooth flow.

5. How long can a carton flow lane be?
Standard lanes are 6–12 cartons deep, but Shitong has manufactured lanes up to 20 cartons deep. Longer designs can be customized if required.

6. What are the main characteristics of carton flow racking?

• High density storage and picking efficiency

• Goods flow automatically by gravity, First In First Out

• Continuous replenishment from the rear, convenient picking in the front

• Suitable for fast-moving SKUs with large quantity but small variety

• Improves ergonomics and reduces picker walking distance
