Shitong’s High-Density Live Pallet Flow Rack System is engineered to deliver fast, efficient First-In-First-Out (FIFO) storage with minimal forklift movement. Ideal for high volume load-in/load-out environments where goods need to flow smoothly and reliably.

How It Works

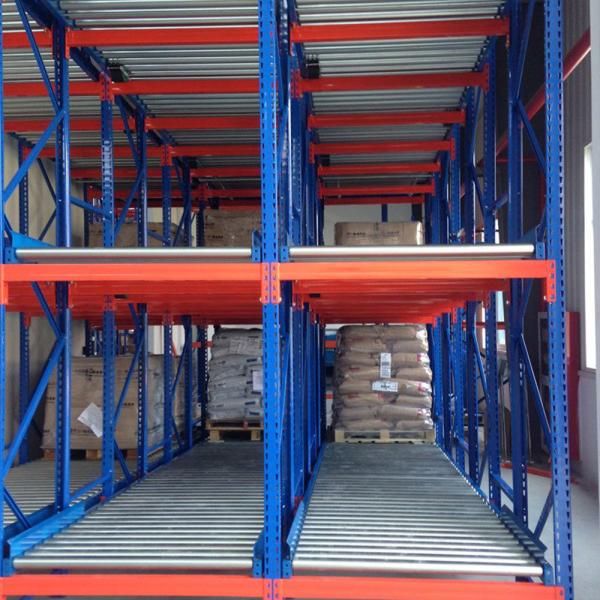

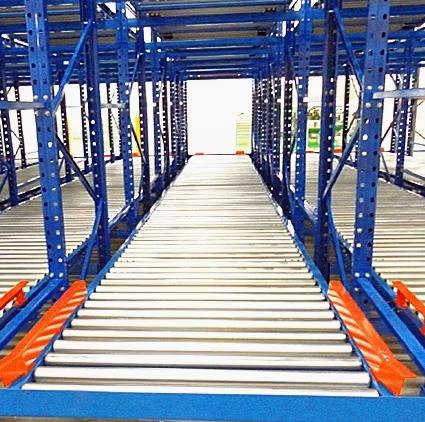

Pallets are loaded at the back or top of inclined lanes and roll forward on gravity rollers or wheeled tracks until they reach the picking or unloading face. The system maintains controlled speed via brake rollers to prevent impact.

Technical Specifications

• Lane inclination: typically 3–5°, adjustable per application.

• Load per pallet: 800–2,500 kg depending on lane width and roller strength.

• Roller material: steel or phenolic rollers (depending on weight and noise requirements).

• Depth: up to 20+ pallets per lane; width: lanes customizable for single or multiple pallets side by side.

Design Features

• Brake or speed-regulating rollers to ensure smooth, safe flow of pallets.

• Side guides and railings to prevent shifting or skew during movement.

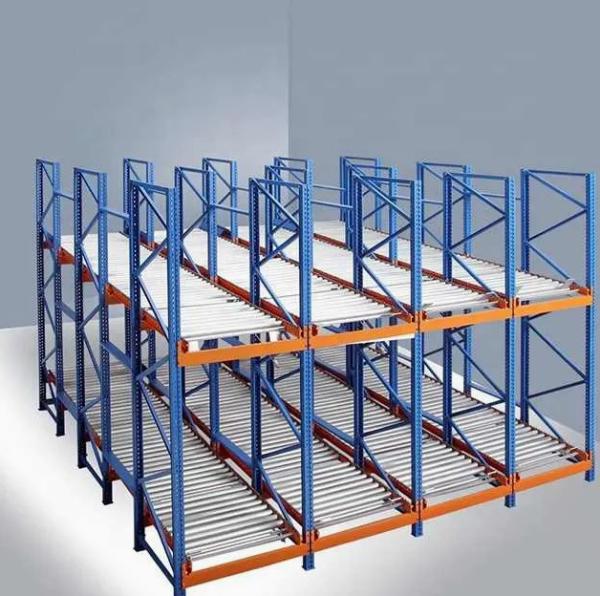

• Modular frames to allow future expansion lane by lane.

• Compatible with standard pallet sizes or customized dimensions.

Customer Benefits

• Speeds up loading/unloading by reducing forklift travel.

• FIFO flow ensures older stock is used first—important for perishable or date-sensitive goods.

• Reduces risk of damage from forklift congestion.

• High throughput per square meter; better space utilization.

Applicable Industries
Food & beverage, grocery, bakery, pharmaceuticals, cosmetics, any warehouse dealing with perishable goods or frequent SKU rotation.1.How many parts pallet flow racking has?

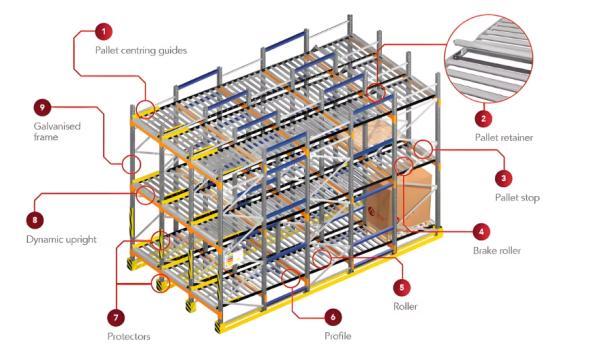

Main parts include upright frame, beam, spacer, roller, damper, separator, roller support rail, rail tie pallet guide plate.Optional part include frame protector, upright protector, forklift stopper.

FAQ:
1.How many parts pallet flow racking has?
Main parts include upright frame, beam, spacer, roller, damper, separator, roller support rail, rail tie pallet guide plate.Optional part include frame protector, upright protector, forklift stopper.

2. How to control speed of pallet when it work on pallet flow racking?
The speed is controled by damper,when the speed is fast than needed,fasten the damper screw, then you will get speed suit.

3.What is the load it can carry?
Usually the load for one pallet is within 1500kgs.

4.Will the pallet diflect when it flow down?
No,it will not.Debugging will eliminate the situation.

5. How long the pallet flow racking could be?
For the time being, the longest we did is 20m, if you need longer,we don't think there is problem.


6.What is the characteristics of pallet flow racking?
-Very high density storage capability
-Goods first in,first out
-Convenient
-Suitable for goods in small species and large quantity.Usually one tunnel for one goods type.
-High cost

7. How can i know which pallet flow racking size suit?
The rack is customized according to client's needs.You just let us know the following information.
-Palletized product size and forklift entry side
-Maximum weight of palletized product
-Available storage area
-Forklift reach height
-Other special requirement

8. Does pallet flow racking has any requirement on pallet structure?
Yes.Steel and plastic pallet suit better,wooden pallet is also ok.Pallet base should easily flow down without obstruction.
