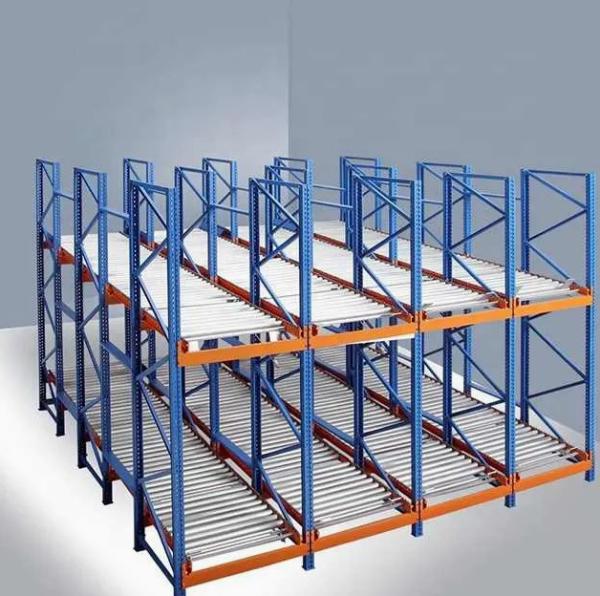

Shitong Heavy Duty Pallet Flow Rack is custom built for operations that store and move heavy or bulky pallets. By combining strong steel rollers, reinforced frames, and precise flow regulation, this system handles demanding loads while ensuring operational safety.

How It Works
The design uses gravity plus controlled roller resistance to move heavy pallets smoothly down the incline to the picking face. Load distribution and safety features prevent overstrain on rollers and racks.

Technical Specifications

• Maximum pallet load: up to 3,000 kg per pallet.

• Roller diameter and gauge: thick steel rollers, heavy-duty hex shafts.

• Lane inclination: adjustable but often lower (2-4°) for heavy weight to reduce speed.

• Supports single or double pallet width lanes.

Design Features

• Reinforced side frames and front/back supports to resist heavy loads.

• “Stop” or buffer zones at picking side to prevent pallet overshoot.

• Robust side guardrails and anti-skew devices to align pallets during movement.

• Durable coatings or treatments to resist moisture or corrosion in more severe environments.

Customer Benefits

• Enables storage and retrieval of very heavy or oversized pallets.

• Minimizes manual handling and improves operator safety.

• High reliability under continuous use.

• Reduces maintenance via rugged build.

Applicable Industries
Metals, machinery parts, chemical drums, HVAC equipment, building supplies, and heavy industrial warehousing.

FAQ:
1.How many parts pallet flow racking has?

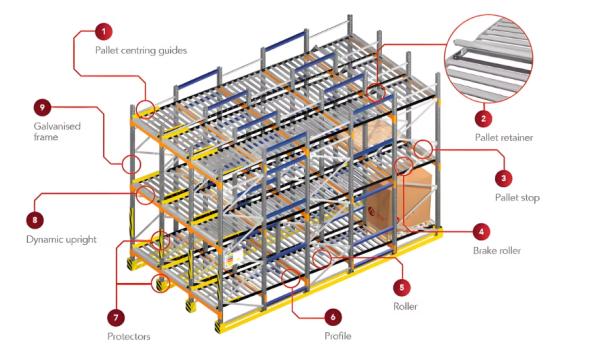

Main parts include upright frame, beam, spacer, roller, damper, separator, roller support rail, rail tie pallet guide plate.Optional part include frame protector, upright protector, forklift stopper.

2. How to control speed of pallet when it work on pallet flow racking?
The speed is controled by damper,when the speed is fast than needed,fasten the damper screw, then you will get speed suit.

3.What is the load it can carry?
Usually the load for one pallet is within 1500kgs.

4.Will the pallet diflect when it flow down?
No,it will not.Debugging will eliminate the situation.

5. How long the pallet flow racking could be?
For the time being, the longest we did is 20m, if you need longer,we don't think there is problem.


6.What is the characteristics of pallet flow racking?
-Very high density storage capability
-Goods first in,first out
-Convenient
-Suitable for goods in small species and large quantity.Usually one tunnel for one goods type.
-High cost

7. How can i know which pallet flow racking size suit?
The rack is customized according to client's needs.You just let us know the following information.
-Palletized product size and forklift entry side
-Maximum weight of palletized product
-Available storage area
-Forklift reach height
-Other special requirement

8. Does pallet flow racking has any requirement on pallet structure?
Yes.Steel and plastic pallet suit better,wooden pallet is also ok.Pallet base should easily flow down without obstruction.
