13-32mm Steel Wire Rope Reel with Removable Handle | Manual Wire Rope Storage on Ship Deck

Product Overview

Type A steel wire rope reel is designed for marine steel wire rope storage where manual operation convenience is required.

The removable handle can be detached after use and can be operated from either the left or right side according to deck arrangement.

Compared with no-handle reels, Type A is more suitable for frequent manual winding and unwinding because the handle provides better turning control and reduces operator effort.

The reel is used for storage only, not for lifting or pulling. It is suitable for 13 mm to 32 mm steel wire ropes with storage length from 120 m to 190 m.

A bolted base, lubricated bearing arrangement, optional brake or locking pin, and smooth free-edge finishing make the reel safer and easier to operate on ship deck.

Quick Specifications

• Applicable Steel Wire Diameter: 13-32 mm -> Suitable for small to medium marine steel wire rope storage
• Operation: Removable handle -> Easier manual turning and better operation control
• Handle Position: Left-side or right-side operation -> Flexible operation according to deck layout
• Standard: CB/T 3468-92 Type A -> Marine steel wire rope reel reference standard
• Drum Capacity: 120-190 m -> Selected according to rope diameter and required storage length
• Brake / Locking: Foot brake or locking pin available -> Keeps reel stable during storage
• Base Fixing: Bolted base -> Convenient installation, removal and relocation
• Structure: Weight-reduction hole design -> Reduces product weight while maintaining structural strength
• Bearing Arrangement: Lubricated bearing design -> Easier rotation and lower manual effort
• Material: Mild steel / 304 / 316L stainless steel -> Selected according to corrosion and budget requirement
• Surface Treatment: Hot-dip galvanizing / Sa2.5 blasting + epoxy coating / polished stainless steel -> Marine corrosion protection
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Main Technical Parameters

Note: Model, brake details, base arrangement and drum dimensions can be confirmed according to project drawings and ship deck layout.

Selection Guide

Step 1 - Confirm wire rope diameter -> Select A13, A17, A20.5, A26 or A32 according to rope size

Step 2 - Confirm manual operation frequency -> Select Type A when frequent winding and unwinding is required

Step 3 - Confirm handle operation side -> Removable handle can be arranged for left-side or right-side operation

Step 4 - Confirm storage length -> Match drum capacity from 120 m to 190 m

Step 5 - Confirm brake or locking requirement -> Recommended for safe storage and stable onboard condition

Step 6 - Confirm base fixing and coating -> Bolted base and coating system according to ship deck arrangement

Step 7 - Confirm certificate requirement -> Maker’s Test Certificate or class certificate according to project demand

Structure

Drum | Steel Pipe Drum Core | Shaft | Lubricated Bearing Arrangement | Removable Handle | Support Frame | Bolted Base | Weight-Reduction Holes | Foot Brake / Locking Pin

Design and Quality Advantages

• Removable handle -> Can be removed after operation to save space and reduce interference
• Left/right side operation -> Supports flexible manual operation according to deck layout
• Better turning control -> Suitable for frequent manual winding and unwinding
• Weight-reduction holes -> Reduce product weight without affecting structural strength
• Foot brake or locking pin -> Keeps the reel stable during storage or standby condition
• Lubricated bearing arrangement -> Smooth rotation and lower manual effort
• Bolted base -> Convenient installation, removal and relocation
• Smooth free edges -> Protects operators from sharp edges and improves handling safety
• Smooth rope contact surface -> Reduces risk of wire rope damage during winding and storage

Custom Attributes

• Product Type: Removable-handle steel wire rope storage reel -> Used for manual marine wire rope storage, not lifting
• Standard: CB/T 3468-92 Type A -> Marine reel reference standard
• Applicable Rope: 13-32 mm steel wire rope -> Covers small and medium diameter storage needs
• Capacity: 120-190 m -> Selected based on rope diameter and required storage length
• Handle Arrangement: Removable handle -> Supports left-side or right-side operation
• Brake: Foot brake available -> Improves storage stability
• Locking: Locking pin available -> Keeps reel secure during storage
• Installation: Bolted base -> Easy mounting and relocation
• Material: Mild steel / 304 / 316L stainless steel -> Select based on corrosion and budget requirement
• Surface Treatment: Hot-dip galvanizing / epoxy coating / polished stainless steel -> Marine corrosion protection
• Customization: Drum size, base arrangement, brake, locking pin, handle and material -> Supports project-specific requirements
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate -> Supports project documentation and inspection requirements

Inquiry Guide

Please provide wire rope diameter, rope length, preferred handle operation side, brake or locking requirement, base fixing arrangement, material, surface treatment and certification requirement.

Not sure about the correct reel size? Send us the rope diameter and storage length, and we will recommend a suitable reel configuration.

How It Works

The steel wire rope is wound onto the drum by manual handle operation. The removable handle provides turning leverage and can be installed on the left or right side. The bearing arrangement allows smooth rotation, and the brake or locking pin secures the reel when the rope is stored.

Applications

Ship deck wire rope storage | Frequent manual rope handling | Spare mooring wire storage | Vessel outfitting | Workshop rope storage

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate. Advantages include light-weight structure, smooth rotation, bolted base installation, brake/locking safety, smooth free edges and customizable materials/coatings.

Drawing & Photos

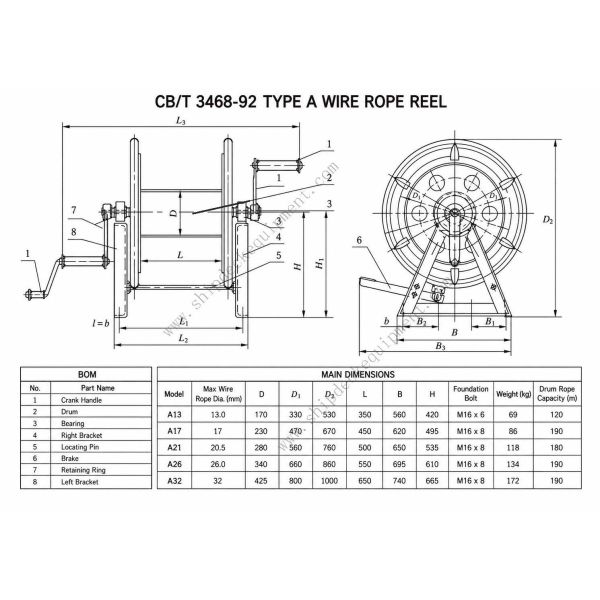

General arrangement drawing and product photos

Ordering

Specify: Type A model, wire rope diameter, rope length, handle operation side, brake or locking requirement, material, surface treatment, bolted base arrangement, quantity and certification requirement.

FAQ

Q1: Why choose Type A with removable handle?
A: Type A is suitable when operators need easier manual turning and better control during frequent winding or unwinding.

Q2: Can the handle be used from both sides?
A: Yes. The removable handle can be arranged for left-side or right-side operation depending on deck layout.

Q3: Can the handle be removed after use?
A: Yes. The detachable handle can be removed to save space and reduce interference during storage.

Q4: Is this reel used for lifting or pulling?
A: No. It is a storage reel for steel wire rope, not a lifting winch or towing winch.

Q5: Can the surface treatment be customized?
A: Yes. Hot-dip galvanizing, Sa2.5 blasting plus epoxy coating, polished stainless steel and customized coating are available.

plus epoxy coating, polished stainless steel and customized surface treatment are available.
