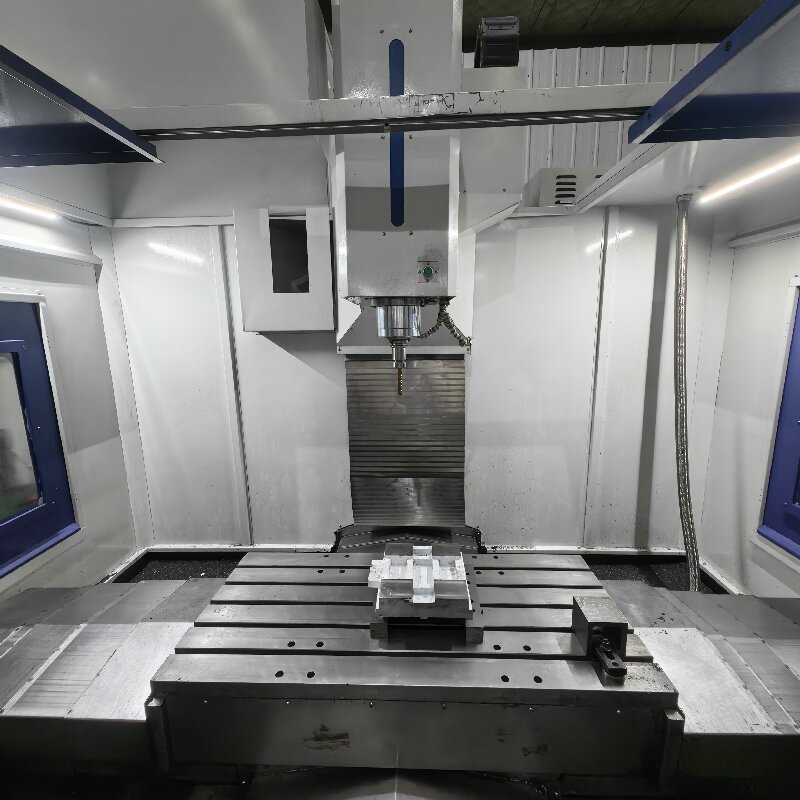

VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
VMC 1160 High Precision Heavy CNC Vertical Machine Center CNC Milling Machine Metal Work
Specifications
no. of spindles :
Single
video outgoing-inspection :
Provided
Tool Magazine :
24-Slot
table travel (z) (mm) :
600
warranty :
1 Year
table size :
1300*600
table travel (y) (mm) :
610
Model Number :
VMC1160
machining capacity :
Heavy Duty
Axis Travel :
X1100/Y610/Z600mm
Machine Weight :
8 Tons
weight (t) :
8
Repeatability :
+/-0.005mm
cnc control system :
KND
Spindle :
BT40 8000-12000RPM
Control System :
KND
type :
VERTICAL
min. time of tool change(s) :
3
Price :
$17,000
repeatability (x/y/z) (mm) :
±0.005
tool magazine capacity :
24
MOQ :
1
spindle taper :
BT40
machinery test report :
Provided
key selling points :
Multifunctional, Automatic, Competitive Price, High-Accuracy, High Safety Level, High Productivity, Long Service Life, Easy To Operate, Flexible Manufacturing, Digital
Table Size :
1300x600mm
Positioning Accuracy :
+/-0.005mm
range of spindle speed :
8000 - 12000
Machine Type :
VMC1160 Vertical Machining Center
Max Table Load :
800kg
Features :
Extreme Precision, Fast Tool Change
dimension(l*w*h) :
245*218*255
Place of Origin :
Hubei, China
positioning accuracy :
±0.005
max. table load(kg) :
800
voltage :
380 V
table travel (x) (mm) :
1100
rapid feed speed :
10 - 30
Description
Product descriptions from the supplier

A robust 8-ton heavy-duty vertical machining center built with a rigid frame (245 *218*255cm), engineered to support maximum table loads up to 800 kg for intense metal milling.

Offers an expansive working area with a 1300 *600mmtable size and flexible 3-axis travel dynamics (X-axis: 1100mm, Y-axis: 610mm, Zaxis: 600 mm).

Achieves an exceptional positioning accuracy of ±0.005mm and a repeatability of ±0.005 mm managed by a smart KND CNC control system, delivering extreme precision for complex component tolerances.

Outfitted with a premium BT40 single spindle capable of operating at blazing-fast speeds from 8,000 to 12,000 RPM, paired with responsive rapid feed speeds of 10 to 30 m/min.

Features a large 24-slot tool magazine capacity that executes ultra-fast, automatic tool changes in as little as 3 seconds to maximize production uptime and support flexible manufacturing.
