Specifications
Max Table Load :
350KG
X-Axis Travel :
510mm
Type :
Vertical Machining Center
Weight :
6,500kg
Spindle Speed :
10,000 RPM
Power Supply :
3 Phase, 220V/380V/415V
Warranty :
1 year
Controller :
Fanuc/Mitsubishi
Rapid Traverse Rate :
30m/min
Brand Name :
ShangJie PM
Features :
Heavy Cutting, High Stability
Spindle Taper :
BT40
Dimensions :
2,500mm x 2,000mm x 2,500mm
Workbench Size :
700x400mm
Max Load Capacity :
300kg
Tool Capacity :
24
Y-Axis Travel :
410mm
Casting Material :
HT300 High Grade
Table Size :
600mm x 400mm
Machine Type :
VMC540 Vertical Machining Center
Guide Rail :
P-Grade Roller Linear Guides
Number Of Axes :
3
Place of Origin :
Hubei, China
Model Number :
VMC540
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
45-60 days
Description

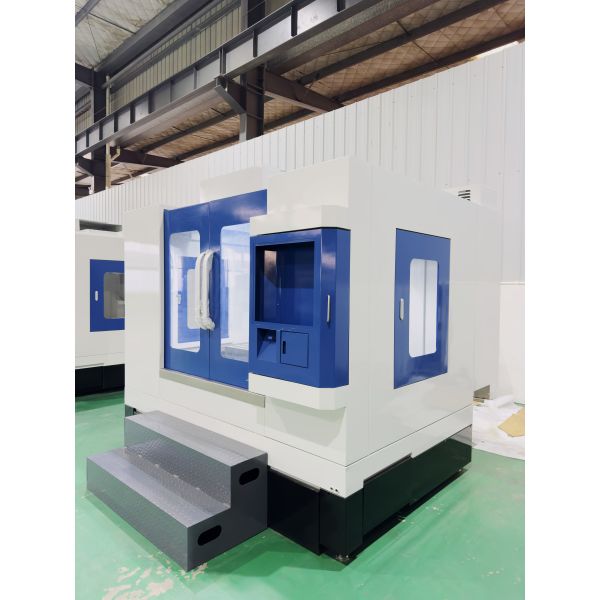

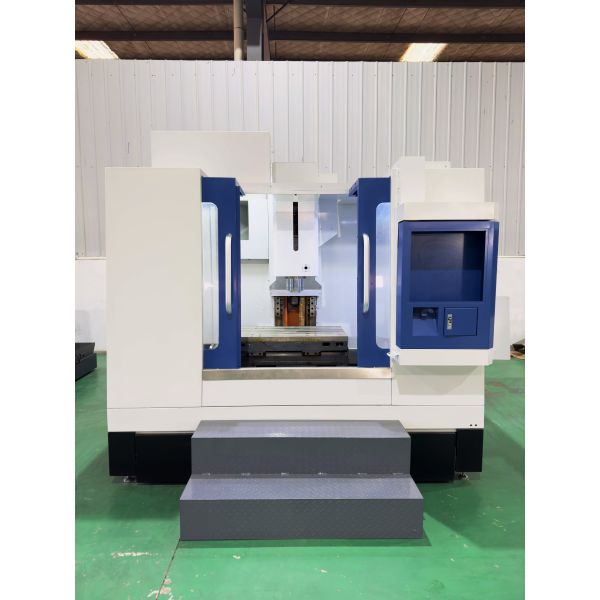

VMC540 Vertical Machining Center

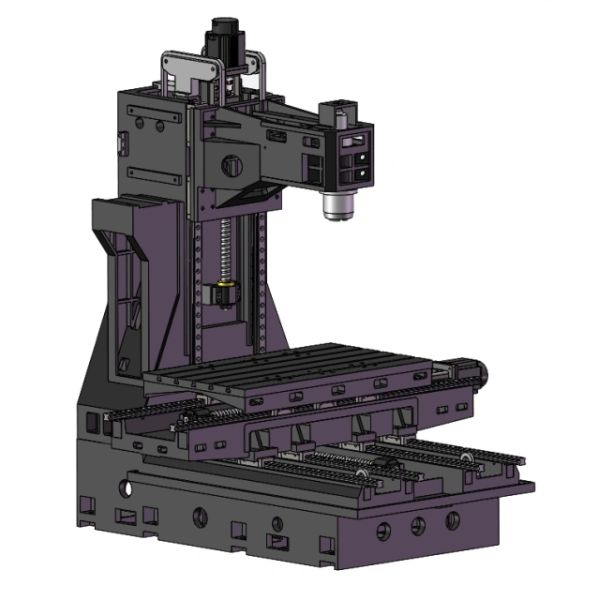

The VMC series machine tools feature a low center of gravity design with increased column span and widened Y-axis base for enhanced stability. Through finite element analysis (FEM), we've optimized the reinforcing rib structure of castings to achieve maximum bed strength. Special reinforcement on the Y-axis base and Z-axis column ensures long-term operational accuracy, while the bed structure is specifically designed for heavy cutting applications to improve work efficiency and tool life.
Key Features
  • HT300 high-grade casting material for superior strength and vibration resistance
  • Vibration aging and secondary tempering processes for stress elimination
  • Precision Grade P roller-type linear guides
  • Optimized structural design for heavy cutting applications
  • Enhanced stability through widened base and increased column span
Technical Specifications
Parameter Value
Workbench size 700x400 mm
Workbench T-slot (number - size * pitch) 3-14x90 mm
Max. load capacity of the workbench 350KG
X-axis travel distance 510mm
Y-axis travel distance 410mm
Z-axis travel distance 500mm
Distance from spindle center to column guide rail 460mm
Spindle face to worktable surface distance 100-600 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z rapid traverse speed 30m/min
Max. spindle speed 8000/12000 rpm
Spindle taper hole BT40
Spindle motor power 7.5/11 KW
Tool magazine capacity Umbrella-Type 12Tools
Machine dimensions (L x W x H) 1580x1580x1950mm
Standard weight 4500KG
Machine Tool Configuration
CNC system: FANUC, SYNTEC, KND, Mitsubishi
High-quality spindle with imported bearings
THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide
C3 grade precision ground ball screw
High-quality tool clamping cylinder
NSK, SKF, FAG P4 grade imported angular contact paired bearings
Precision high-rigidity coupling
Imported high-torque synchronous belts
Product Advantages
Enhanced Stability and Precision
The VMC540 features a low center of gravity design with widened Y-axis base and increased column span for superior stability. Finite element analysis optimizes reinforcing rib placement for maximum bed strength, ensuring consistent accuracy in heavy machining operations.
Heavy-Duty Performance
Constructed with HT300 high-grade casting material for exceptional deformation resistance and shock absorption. Vibration aging and secondary tempering processes eliminate stress for long-term dimensional stability in demanding applications.
Precision Components
Equipped with Precision Grade P roller-type linear guides, C3 grade ball screws, and high-rigidity couplings for smooth, accurate operation. High-quality spindle with imported bearings ensures reliable performance under heavy loads.
Versatile Configuration Options
Compatible with leading CNC systems including FANUC and Mitsubishi. Umbrella-type 12-tool magazine and BT40 spindle taper accommodate a wide range of machining applications.
About Shanjmc

Shanjmc is a leader in high-precision CNC machinery manufacturing, dedicated to advancing industrial capabilities with innovative solutions. Our VMC series exemplifies our commitment to quality and performance, featuring reinforced structures for superior stability and precision. Designed for heavy-duty applications, our machines enhance work efficiency and extend tool life.

We utilize HT300 high-grade casting material and advanced manufacturing processes to ensure exceptional machine quality. Our products integrate with leading CNC systems for seamless operation in diverse industrial environments.

Frequently Asked Questions
How do you guarantee machine quality?
We use high-grade materials like HT300 casting and implement rigorous quality control measures. All machines undergo vibration aging and secondary tempering to ensure long-term dimensional stability and precision.
What CNC systems are compatible?
The VMC540 is compatible with FANUC, SYNTEC, KND, and Mitsubishi CNC systems, allowing for seamless integration into existing workflows.
What is the machine's weight capacity?
The workbench has a maximum load capacity of 350KG, with the machine itself weighing 4500KG for superior stability during operation.
Can the machine be customized?
Yes, we offer customization options including tool magazine capacity, spindle options, and CNC system selection to meet specific production requirements.
