HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
Specifications
spindle taper :
BT50
key selling points :
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, High Productivity, Long Service Life, Easy To Operate, Flexible Manufacturing, Digital
Z-Axis Travel :
1000mm Extended
type :
VERTICAL
table travel (z) (mm) :
1000
min. time of tool change(s) :
3

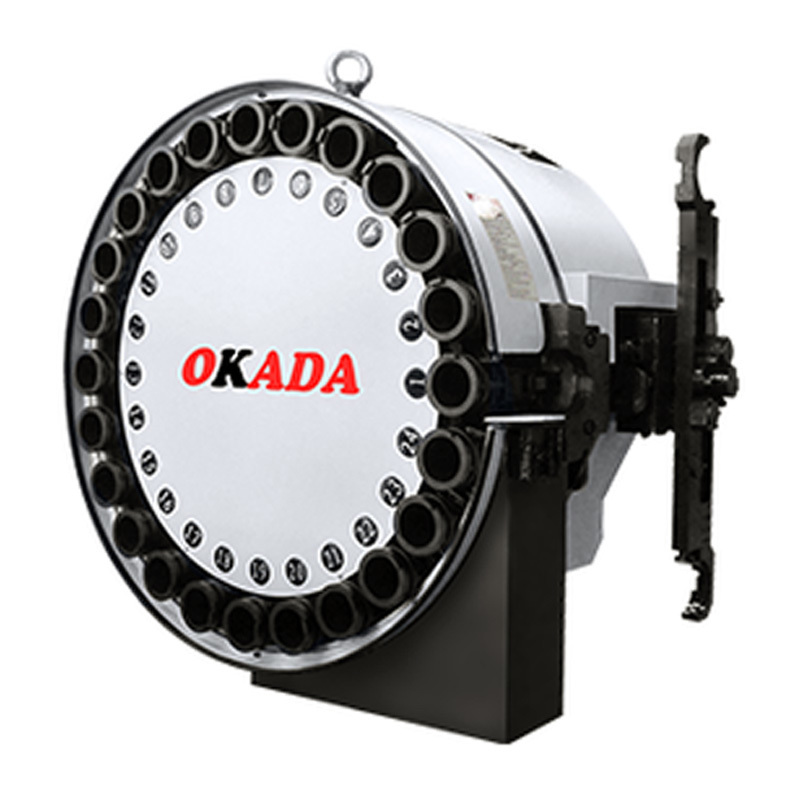

tool magazine capacity :
24
Place of Origin :
Hubei, China
MOQ :
1
max. table load(kg) :
2000
table travel (y) (mm) :
800
voltage :
380 V
video outgoing-inspection :
Provided
Machine Weight :
19 Tons
range of spindle speed :
0 - 6000
Model Number :
HV5F-800
machining capacity :
Medium Duty
table travel (x) (mm) :
1300
Price :
$58,000
no. of spindles :
1
weight (t) :
19
repeatability (x/y/z) (mm) :
±0.008
Control System :
KND
cnc control system :
KND
machinery test report :
Provided
Machine Type :
HV5F-800 Penthedron Center
Application :
Deep-Cavity Dies, Heavy Molds
table size :
800*800
rapid feed speed :
10 - 24
Features :
Zero Vibration, Long-Term Accuracy
dimension(l*w*h) :
530*410*310
positioning accuracy :
±0.012
warranty :
1 Year
Positioning Accuracy :
+/-0.012mm
Repeatability :
+/-0.008mm
Description
Product descriptions from the supplier

Built with a massive 19-ton high-rigidity casting frame, engineered to handle heavy-load machining with zero vibration and long-term accuracy.

Generous X/Y/Z travel combined with a 1000mm extended Z-axis, ideal for deep-cavity dies, heavy molds, and large structural components.

Superior cutting capacity for hard metals, heavy steel milling, and aggressive material removal rates.

Features ±0.012 mm positioning accuracy and ±0.008mm repeatability for consistent, high-tolerance industrial production.

Integrated with the KND CNC Control System for user-friendly operation, stable signal output, and easy setup.

HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
HV5F-800 Vertical Penthedron Processing Center BT50 Automatic High-Accuracy 19-Ton Rigid Frame
About this supplier

**Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. (ShangJie PM)** is an ISO 9001-certified, specialized industrial machinery manufacturer established in 2007 with a modern 20,000-square-meter facility in Hubei, China. The company delivers a versatile, high-precision lineup of CNC turning centers, vertical and horizontal machining centers, CNC gantry machining centers, and precision grinding machines. By housing the entire production lifecycle under one roof-from a dedicated design department to specialized casting, sheet metal fabrication, coating, assembly, and quality control divisions-ShangJie PM maintains complete in-house control over machine quality. Every machine tool is constructed using premium HT300 high-grade industrial cast iron, which undergoes a careful tempering and natural aging process to eliminate internal stresses and ensure long-term structural stability. Supported by advanced inspection tools like laser interferometers, dual-axis photoelectric autocollimators, and laser goniometers, the company ensures micro-precision accuracy. Guided by their core principles of rigor, pragmatism, integrity, and responsibility, ShangJie PM is committed to delivering exceptional equipment that drives win-win cooperation and long-term success for their global manufacturing partners.
