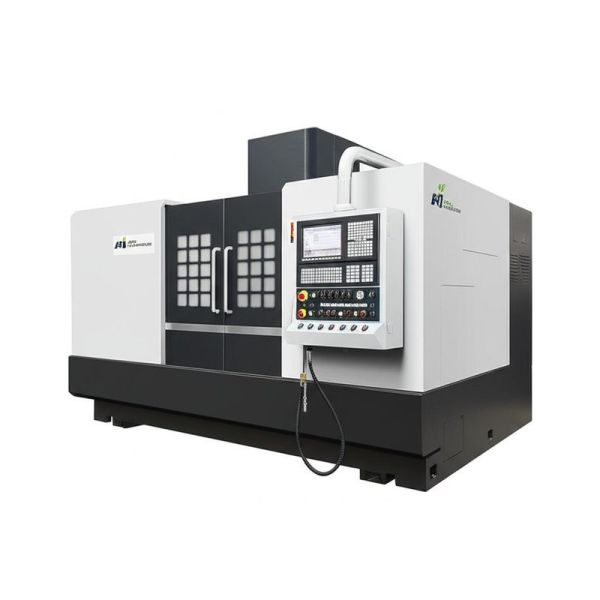

HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision
HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision
HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision
HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision
Specifications
Model Number :
HV5F-1000
Place of Origin :
China
Certification :
CE ISO certification
MOQ :
1
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time :
45-60 days
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
45-60 days
Table Size :
800mm x 500mm
X-Axis Travel :
800mm
Accuracy :
0.01mm
Product Type :
Machining Center
Y-Axis Travel :
500mm
Spindle Speed :
10,000 RPM
Control System :
CNC
Table Load Capacity :
500kg
Tool Capacity :
30
Coolant System :
Oil-based
Number Of Axes :
5
Power Requirement :
AC 380V, 50Hz
Max. Tool Diameter :
100mm
Z-Axis Travel :
500mm
Description

Vertical and horizontal dual-purpose five-sided machining center

ShangJie PM’s vertical and horizontal dual-purpose five-sided machining centers combine the functionality of vertical and horizontal milling in one machine, enabling full-surface machining with a single setup. Designed for high-precision, multi-angle operations, this type of CNC equipment is ideal for complex workpieces such as molds, bases, and structural components. The five-sided cutting capability improves efficiency, reduces clamping times, and ensures tight tolerance across multiple faces. With high-rigidity gantry frames and advanced control systems, these machines meet the demands of industries like energy, heavy machinery, and precision engineering.

  • Dual-axis design enables full five-sided machining in one cycle

  • Eliminates multiple repositionings to reduce human error

  • Ideal for large complex molds, frames, and structural parts


HV5F series machine tools adopt a fixed gantry column integral bed structure, featuring a large-span H-shaped gantry column and a front-hung box layout. Coupled with a wide and heavy four-roller linear guide layout base, the machine tools have strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with a focus on low center of gravity, anti-twist, and suitability for heavy cutting.

■ Machine Structure

HV5F series machine tools adopt a fixed gantry column integral bed structure, featuring a large-span H-shaped gantry column and a front-hung box layout. Coupled with a wide and heavy four-roller linear guide layout base, the machine tools have strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with a focus on low center of gravity, anti-twist, and suitability for heavy cutting.
Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the castings, achieving the optimal strength of the bed. Additionally, the base and Y-axis column have been specially reinforced to make the bed structure more suitable for heavy cutting and increase the tool life.





■ Specifications

Machine Type HV5F-1000
Workbench size 1000x1000 mm
Workbench T-slot (number - size * pitch) 7-22x130 mm
Max. load capacity of the workbench 2100KG

Horizontal
Machining
section		 X-axis travel distance 1600mm
Y-axis travel distance 1000mm
Z-axis travel distance 1000mm
Distance from the centerline of the main shaft to the worktable surface -50-950mm
Distance from the spindle face to
the center of the worktable		 -60-940 mm

Vertical
machining
section		 Z-axis travel distance 1000mm
Distance from the centerline of the main shaft to the worktable surface 150-1150mm
Distance from the spindle face to
the center of the worktable		 -230-770 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 24m/min
X axis Max. torque of motor 69N.m
Y axis Max. torque of motor 85.2N.m
Z axis Max. torque of motor 85.2N.m
Max. spindle speed 6000 rpm
Spindle taper hole BT50
Spindle motor power 15/18 KW
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Positioning accuracy 0.012mm
Repeatability positioning accuracy 0.008mm
Positioning accuracy of B-axis 10"
Repeatabilitypositioning accuracy of B-axis 6"
Machine size (L x W x H) 53600x4300x3100mm
Standard weight 21000KG




■ Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi

 High-quality spindle, imported bearings



 THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.

 The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. It also features a large transmission ratio, smooth transmission, and self-locking properties, making it particularly suitable for milling operations.
 Imported P4 grade precision turntable bearings are selected, featuring three rows of rollers that respectively provide axial and radial support. This results in a large clamping torque on the worktable surface and a strong anti-overturning torque.
Standard equipped with chain-typechip conveyor and small iron chip cart.
 High-quality disc-type /Umbrella-type ATC Tool magazine

Company advantages

Our company has passed the quality system certification. We have independent design and R&D capabilities. Our company is equipped with large gantry machining centers, five-axis machining centers, vertical machining centers and other large-scale processing equipment. We have a dedicated after-sales service team, committed to providing customers with convenient and efficient after-sales service.

Product advantages

Our machine tools use HT300 high-grade castings with an ergonomic design. We select imported functional components, ensuring long-term dimensional stability without deformation. We have independent design and R&D capabilities, completing all processes from casting to sheet metal fabrication in-house, allowing for quality control.

Application scenarios

It is applicable to mechanical processing fields such as automotive manufacturing, aerospace, and shipbuilding
