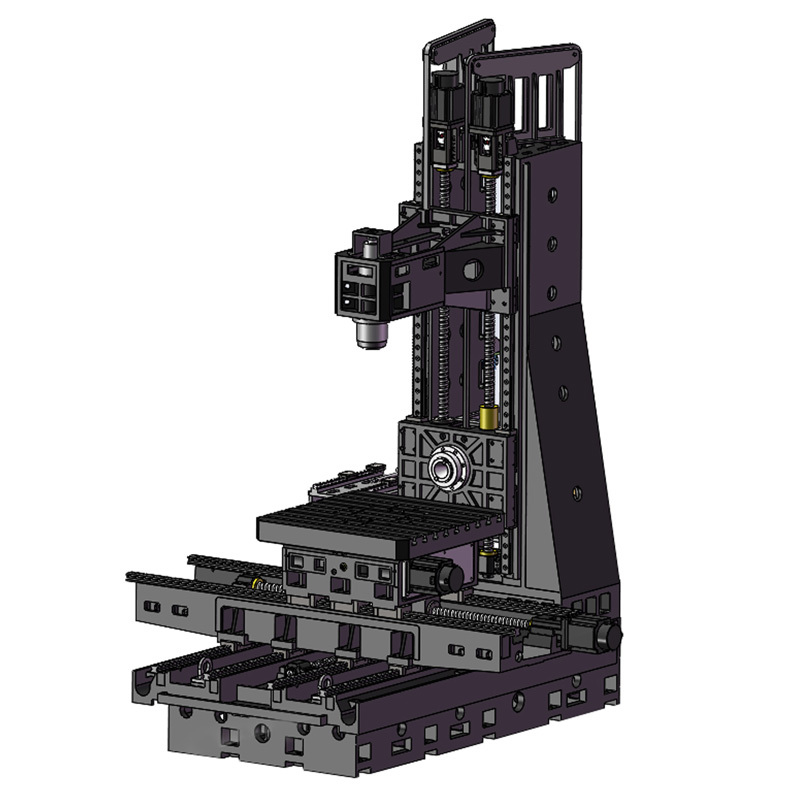

HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic

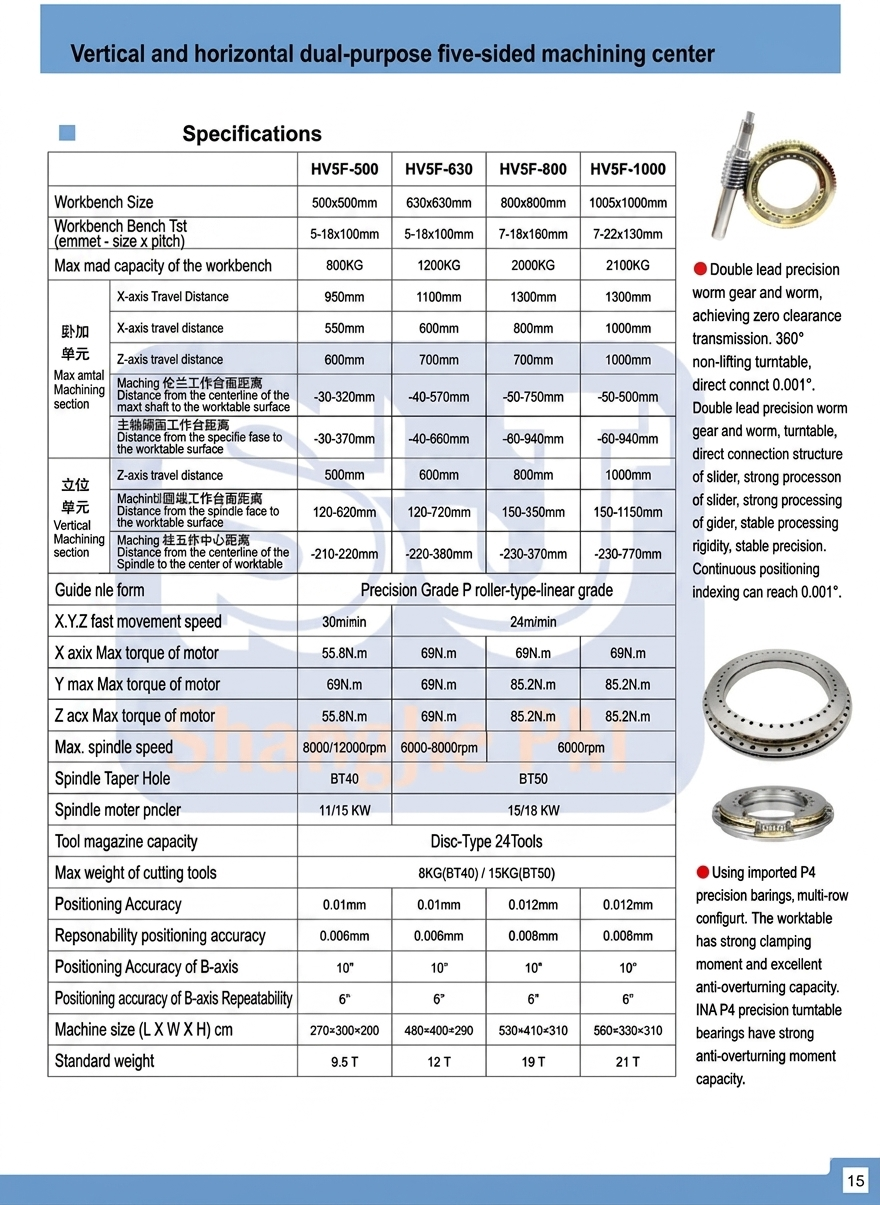

Specifications
max. table load(kg) :
800
warranty :
1 Year
Model Number :
HV5F-500
machinery test report :
Provided
video outgoing-inspection :
Provided
Place of Origin :
Hubei, China
Operation :
Simplified Controls
spindle taper :
BT40
table travel (y) (mm) :
500
key selling points :
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, High Productivity, Long Service Life, Easy To Operate, Flexible Manufacturing, Digital
MOQ :
1
type :
VERTICAL
cnc control system :
KND
voltage :
380 V
range of spindle speed :
8000 - 12000
tool magazine capacity :
24
Price :
$45,000
Machine Type :
HV5F-500 Penthedron Center
dimension(l*w*h) :
270*300*280
positioning accuracy :
±0.01
min. time of tool change(s) :
3
machining capacity :
Medium Duty
no. of spindles :
1
weight (t) :
9.5
Features :
Multifunctional, Long Service Life
table travel (x) (mm) :
950
repeatability (x/y/z) (mm) :
±0.006
table travel (z) (mm) :
600
rapid feed speed :
10 - 30
table size :
500*500
Description
Product descriptions from the supplier

High-Accuracy Automatic: Ensures precise machining for high-quality results.

Multifunctional Design: Handles various manufacturing needs efficiently.

Long Service Life: Built to withstand heavy-duty use without frequent maintenance.

Easy To Operate: Simplified controls make setup and use straightforward.

Medium Duty Capacity: Suitable for medium-sized production runs.

HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
About this supplier

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is a leading manufacturer established in 2007, operating a 20,000m2 workshop. Specializing in CNC machining centers and precision equipment, we offer ISO 9001 certification and full manufacturing capabilities. Our quality control includes laser interferometers and HT300 castings, ensuring high precision and stability.

Company overview
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
Factory profile
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
exhibition event
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
certificate
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
Customization capabilities
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
Packaging & shipping specifications
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
FAQ
HV5F-500 Vertical Penthedron Processing Center with BT40 Spindle High-Accuracy Automatic
