PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
Specifications
dimension(l*w*h) :
415*147*185
Repeatability :
+/-0.005mm
Spindle Bore :
127mm
voltage :
380 V
tool post stations :
12
travel (z axis)(mm) :
2030
weight :
8300
Max Workpiece Length :
1850mm
Control System :
KND
machining capacity :
Medium Duty
no. of spindles :
Single
Model Number :
PR660Y
max. weight of workpiece(kg) :
800
key selling points :
Multifunctional, Automatic, High Safety Level, High-Accuracy, High Productivity, High Rigidity, Long Service Life, Easy To Operate
Max Workpiece Weight :
800kg
machinery test report :
Provided
cutting torque :
45
Machine Type :
PR660Y Horizontal CNC Lathe
Machine Weight :
8300kg
type :
TURNING CENTER
number of axes :
4
positioning accuracy (mm) :
±0.01
max. length of workpiece (mm) :
1850
Place of Origin :
Hubei, China
Price :
R 1 043 972,25
Bed Width :
1470mm
Spindle Speed :
Up To 6000RPM
warranty :
1 Year
Y-Axis :
Interpolated Y-Axis
range of spindle speed :
0 - 6000
MOQ :
1
width of bed (mm) :
1470
repeatability (x/y/z) (mm) :
±0.005
Features :
Milling, Drilling, Turning In One Setup
cnc control system :
KND
Tool Post :
12-Station
Certification :
CE, ISO
video outgoing-inspection :
Provided
Positioning Accuracy :
+/-0.01mm
travel (x axis)(mm) :
360
Cutting Torque :
45Nm
Description
Product descriptions from the supplier

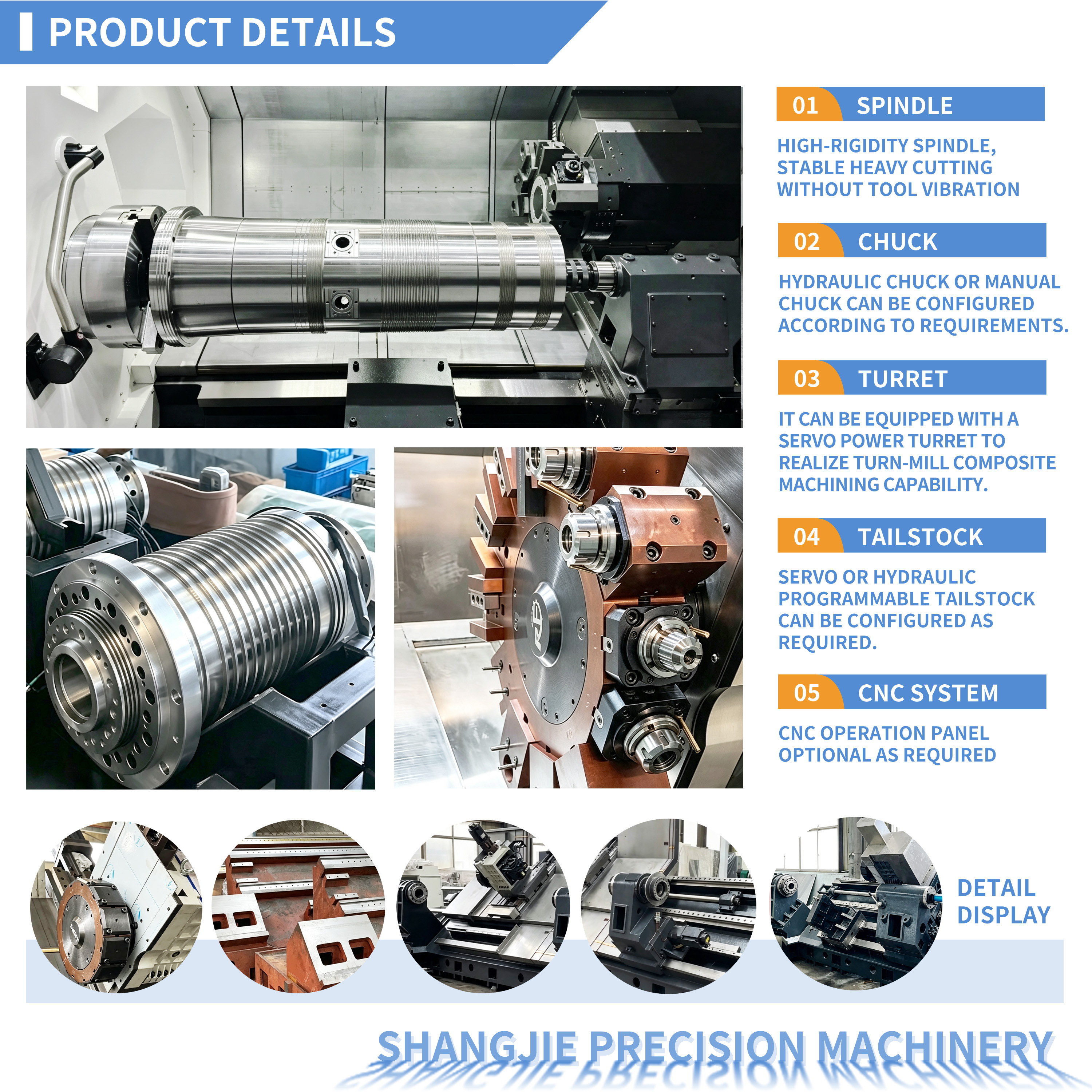

Features a massive structural configuration engineered to easily process long and substantial workpieces up to a maximum length of 1850 mm and a weight capacity of 800 kg.

Outfitted with a versatile 12-station tool post and an interpolated Y-axis layout, enabling complex, multi-functional milling, drilling, and turning operations in a single setup.

Guided by a high-rigidity 1470 mm bed width and a stable KND CNC control system, achieving an exceptional positioning accuracy of ±0.01 mm and a tight repeatability of ±0.005 mm.

Delivers deep cutting strength and efficient material removal through a wide spindle speed range up to 6000 RPM paired with a robust 45 Nm of cutting torque.

Proudly manufactured by Shangjie Precision Machinery (Hubei, China) under a solid 8300 kg body weight; includes a 1-year warranty along with formal factory Machinery Test and Video Outgoing-Inspection reports.

PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
PR660Y Precision Horizontal CNC Lathe 127mm Large Bore Large Chuck Capacity KND Control
About this supplier

Established in 2007, Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is an ISO9001-certified manufacturer operating a high-standard 20,000 $m^2$ facility specializing in premium CNC turning centers, vertical/horizontal machining centers, CNC gantry machines, and precision grinders. The company manages complete end-to-end processing in-house-covering everything from initial design, casting, and sheet metal fabrication to final assembly and testing-to guarantee total quality control over every machine tool produced. Driven by advanced production and inspection equipment like precision gantry centers, laser interferometers, and dual-axis photoelectric autocollimators, Shangjie ensures high-accuracy engineering across its lineup. For maximum structural durability, all machine beds are cast from high-grade HT300 material and subjected to rigorous tempering and natural aging processes to completely eliminate internal stress and secure long-term operational stability. Guided by their core values of rigor, pragmatism, integrity, and responsibility, they are dedicated to delivering high-performance industrial equipment for win-win global partnerships.
