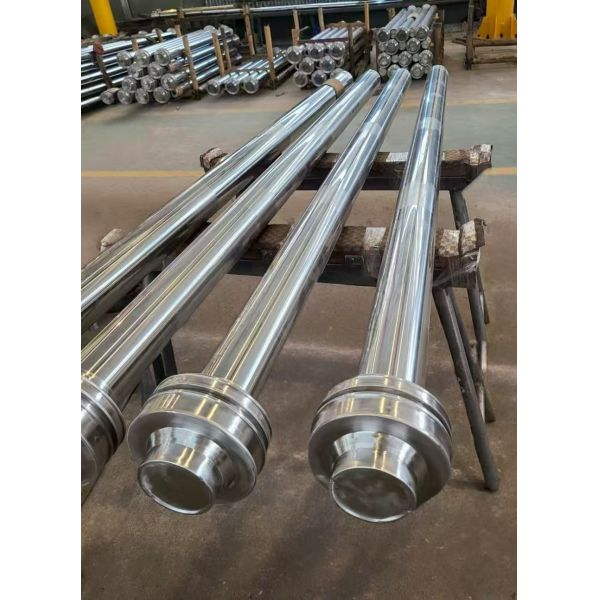

45# Industrial Solid Shaft Chromium Plating Heavy Duty Solid Shaft Quenching
45# Industrial Solid Shaft Chromium Plating Heavy Duty Solid Shaft Quenching
Specifications
Brand Name :
Zhisheng
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Place of Origin :
China
Description
45# Solid Shaft with Chromium Plating and High-Frequency Quenching
Product Specifications
Attribute Value
High-frequency quenching HRC50-60
Surface hardness 800-1150HV
Surface treatment Chromium plating, medium and high frequency induction hardening, quenching and tempering
Salt spray test Level 9150-300 hours
Weldability Good
Packing Rust prevention oil treatment, waterproof paper tube/wooden box
Quality certificate Product quality reports, chromium plating thickness reports, salt spray test reports
Quenching and tempering hardness HB220-360
Straightness ≤0.1mm/m
Surface roughness ≤0.05μm
Chromium plating thickness 0.02mm-0.50mm
Outer diameter tolerance Customizable options available
Length L200-20000mm
Size φ20-φ500mm
Product Overview

The Solid Shaft is a fundamental mechanical transmission component, designed with a uniform solid core to provide maximum stability, strength, and durability. It is widely applied in industrial machinery, conveyors, pumps, and power transmission systems.

Material & Construction
  • Manufactured from high-quality carbon steel, alloy steel, or stainless steel
  • Solid, non-hollow design for enhanced rigidity
  • Polished and ground surface for reduced friction and smooth rotation
Key Features & Advantages
  • Excellent torsional strength for reliable torque transmission
  • High load-bearing capacity
  • Smooth operation with reduced vibration
  • Long service life with minimal maintenance
Applications
  • Industrial drive systems
  • Mechanical power transmission
  • Pumps and compressors
  • Conveyor equipment
Customization Options
  • Lengths: from 50 mm up to 6000 mm
  • Diameters: from 5 mm to 200 mm
  • Surface finishes: polished, coated, or chrome-plated
  • End configurations: plain ends, threaded ends, or keyway slots
Chemical Composition
45# Industrial Solid Shaft Chromium Plating Heavy Duty Solid Shaft Quenching
45# Industrial Solid Shaft Chromium Plating Heavy Duty Solid Shaft Quenching
