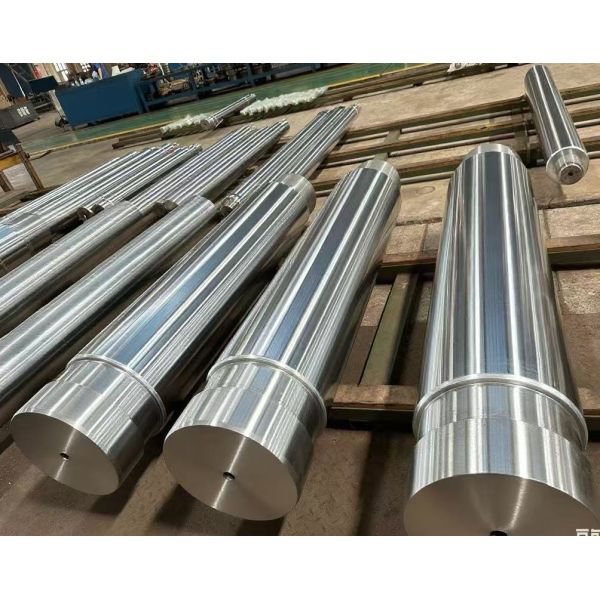

20# Solid Hydraulic Ram Shaft HRC50 - 60 Hardened Steel Power Transmission Shaft
20# Solid Hydraulic Ram Shaft HRC50 - 60 Hardened Steel Power Transmission Shaft
Specifications
Brand Name :
Zhisheng
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Description
20# Solid Shaft HRC50-60 Hardened Steel Power Transmission Shaft
20# Solid Shaft
Product Specifications
Attribute Value
High-frequency quenching HRC50-60
Surface hardness 800-1150HV
Surface treatment Chromium plating, medium and high frequency induction hardening, quenching and tempering
Salt spray test Level 9150-300 hours
Weldability Good
Packing After rust prevention oil treatment, each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate Product quality reports, chromium plating thickness reports, salt spray test reports
Quenching and tempering hardness HB220-360
Straightness ≤0.1mm/m
Surface roughness ≤0.05μm
Chromium plating thickness 0.02mm-0.50mm
Outer diameter tolerance Other customizable options
Length L200-20000mm
Size φ20-φ500mm
Product Overview

The 20# Solid Shaft is engineered for reliable power transmission across multiple industries. Its robust, non-hollow design ensures exceptional strength and durability for demanding applications.

Material Options
  • Carbon steel for general industrial applications
  • Stainless steel for enhanced corrosion resistance
  • Alloy steel for high-load performance requirements
Key Features
  • Exceptional load-bearing capacity
  • Superior resistance to twisting and deformation
  • Optimized power transmission efficiency
  • Compatible with gears, pulleys, and couplings
Application Areas
  • Automotive: Drive shafts, axle shafts
  • Industrial: Gearboxes, pumps, motors
  • Construction: Heavy-duty load support systems
  • Marine & Aerospace: Corrosion-resistant power transmission
Customization Options
  • Multiple diameter and length configurations
  • Specialized surface finishes available
  • Precision end machining to customer specifications
  • Special coatings for extreme environments
Chemical Composition
