Servo Motor Precision Ground Solid Shaft For Transmission Systems
Servo Motor Precision Ground Solid Shaft For Transmission Systems
Specifications
Brand Name :
Zhisheng
High-frequency quenching :
HRC50-60
Surface hardness :
800-1150HV
Surface treatment :
Chromium plating,medium and high frequency induction hardening,quenching and tempering,quenching andtempering+medium and high frequency induction hardening
Salt spray test :
Level 9150-300 hours
Weldability :
good
Packing :
After rust prevention oil treatment,each piece is wrapped in a waterproof paper tube/wooden box
Quality certificate :
Provide product quality reports,chromium plating thickness reports,salt spray test reports,etc
Quenching and tempering hardness :
HB220-360
Straightness :
≤0.1mm/m
Surface roughness :
≤0.05μm
Chromium plating thicknes :
0.02mm-0.50mm
Outer diameter tolerance :
Other customizable options)
Length :
L200-20000mm
Size :
φ20-φ500mm
Model Number :
20#
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Description
Precision Ground Solid Shaft for Servo Motor and Transmission Systems
Product Overview
The Precision Ground Solid Shaft is designed for servo motors, stepper motors, and precision transmission systems that require tight tolerance and superior balance. Its precision grinding process guarantees optimal roundness and alignment.
Product Specifications
Attribute Value
Material 45# Steel / S45C / 1045 Carbon Steel
Heat Treatment Quenched and Tempered
Hardness HRC 25-35
Surface Roughness ≤ 0.03 μm
Straightness ≤ 0.05 mm/m
Tensile Strength ≥ 800 MPa
Diameter Range φ10 mm - φ150 mm
Length Range 150 mm - 3000 mm
Certification ISO 9001 / SGS
Key Features
  • High concentricity and tight tolerance
  • Optimized for smooth rotation
  • Suitable for dynamic power transmission
  • Excellent dimensional stability under stress
Applications
  • Servo and stepper motor shafts
  • Precision mechanical assemblies
  • Drive couplings and gear systems
  • Automation and control devices
Customer Benefits
  • High stability and low vibration
  • Consistent performance at high RPM
  • Custom grinding and machining services

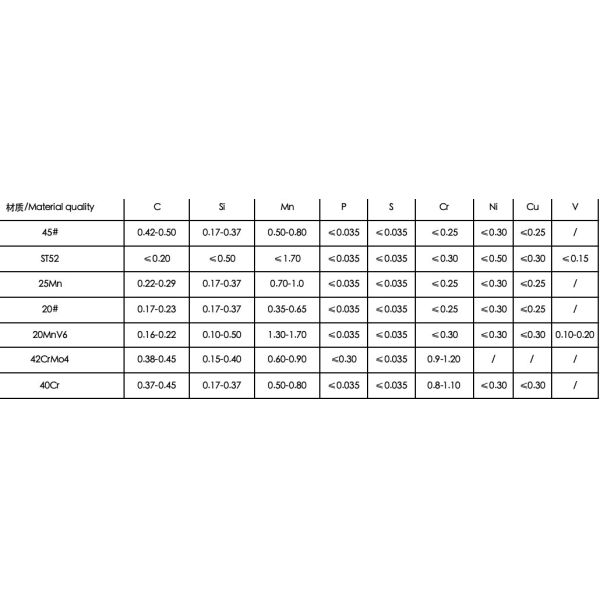

Chemical Composition
Servo Motor Precision Ground Solid Shaft For Transmission Systems
Servo Motor Precision Ground Solid Shaft For Transmission Systems
