YW Vertical Slurry Pump
YW Vertical Slurry Pump
YW Vertical Slurry Pump
YW Vertical Slurry Pump
Specifications
Brand Name :
DENOR
Model Number :
DENOR-YW
Certification :
ISO/CE/TUV
Place of Origin :
China
Name :
YW Vertical Slurry Pump
Description

YW Vertical Slurry Pump


YW series vertical slurry pump is a under-liquid submerged sewage pump with big flow non vlog design and high solid particle passing capacity.


YW series vertical slurry pump of pumps adopt unique structure of impeller and new type double mechanical seal, can effectively conveying liquids containing solids and short fiber. Compared with the traditional impeller, the pump impeller is with big channel, have very good flow passing ability, match with reasonable volute chamber, make the pump with high efficiency, no vibration.


YW series vertical slurry pump adopts vertical, axial suction, single-stage single suction, single pumpcasing and centrifugal structure, suitable for transport the sewage and filth containing grains or pump the clear water and corrosive medium in such industries as chenical engineering ,petroleum,pharmacy,mining, paper making, cement mill,steel works, power plant, coal processing ,drainage system of city sewage plant, public works and construction site.


Advantages
1. Adopt big flow non-clog design, improving the ability to pass dirty things greatly.
2. The design is rational, with high efficiency, and the energy-saving is remarkable.
3. Adopts in series mechanical seal, the material is the wear-resisting carbonization tungsten, featuring being durable,
wear-resisting, can running for more than 8000 hours continuously safely.
4. The installation is simple and convenient, the pump is submerged into the water, no need to build the pump house, reduce construction cost greatly.
5. Can be equipped with control box according to the needs of user, it will start or stop the pump automatically according to the change of liquid level, it is more convenient to use.
6. Motor shaft can be 0.5~4 m.

Applications
1, factory severely-polluted sewage discharge.
2, the urban sewage treatment plants drainage system.
3, residential area sewage drainage.
4, hospital, hotel sewage disposal.
5, municipal engineering and construction site.
6, exploration and mining.
7, rural digester irrigation.

Product Parameters

Model

Discharge

mm

Capacity

m3/h

Head

m

Speed

r/min

Power

KW

Eff.

%
40YW12-15
 40 12 15 2900 1.5 48
50YW20-7
 50 20 7 1450 0.75 62
50YW10-10
 - 10 10
0.75 54
50YW15-15
 - 15 15 2900 1.5 51
50YW15-20
 - 15 20 - 2.2 51
50YW17-25
 - 17 25 - 3 53
50YW25-32
 - 25 32 - 5.5 49
65YW25-15
 65 25 15 - 2.2 52
65YW37-13
 - 37 13 - 3 60
65YW25-28
 - 25 28 - 4 58
80YW40-7
 80 40 7 - 2.2 50
80YW29-9
 - 29 9 - 2.2 48
80YW43-13
 - 43 13 - 3 65
80YW40-15
 - 40 15 - 4 57
80YW50-25
 - 50 25 - 7.5 56
100YW80-9
 100 80 9 1450 4 62
100YW110-10
 - 110 10 - 5.5 97
100YW65-15
 - 65 15 - 5.5 59
100YW100-15
 - 100 15 - 7.5 70
100YW80-20
 - 80 20 - 7.5 71
100YW100-22
 - 100 22 - 15 61
150YW145-9
 150 145 9 - 7.5 63
150YW200-10
 - 200 10 - 15 64
150YW160-15
 - 160 15 - 15 67
150YW180-22
 - 180 22 - 18.5 74
150YW150-26
 - 150 26 - 18.5 72
150YW130-30
 - 130 30 - 22 69
150YW200-30
 - 200 30 - 37 65
150YW150-35
 - 150 35 - 37 63
200YW250-11
 200 250 11 - 15 72
200YW250-15
 - 250 15 - 18.5 72
200YW400-10
 - 400 10 - 22 75
200YW310-13
 - 310 13 - 22 71
200YW400-13
 - 400 13 - 30 76
200YW250-22
 - 250 22 - 30 71
200YW350-25
 - 350 25 - 37 73
200YW250-35
 -
35 - 45 69
250YW600-9
 250 600 9 - 30 78
250YW600-12
 - 600 12 - 37 76
250YW600-15
 - 600 15 - 45 73

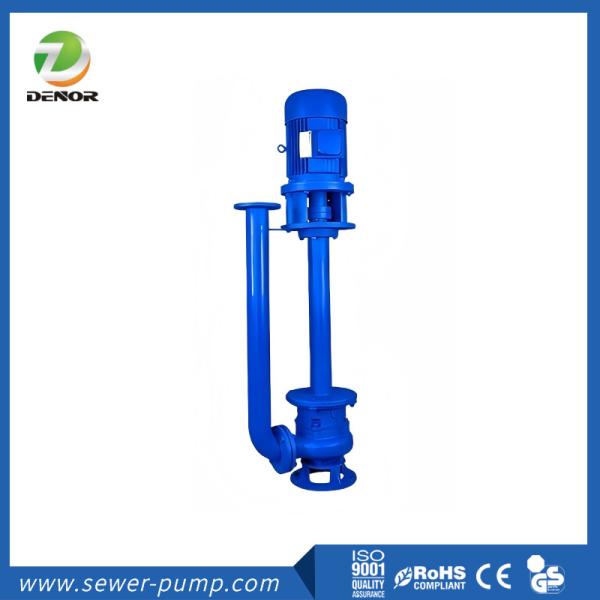

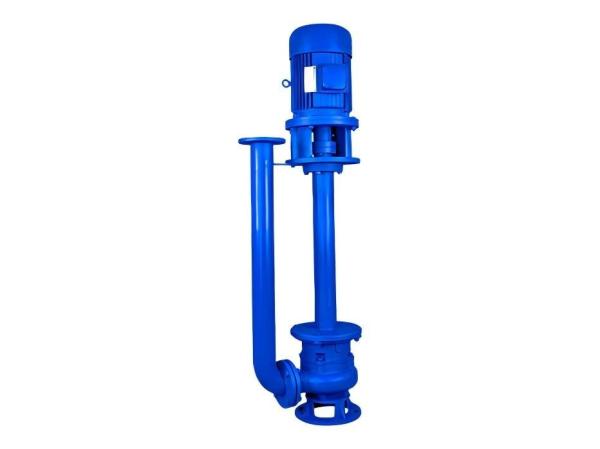

Detailed Photos

YW Vertical Slurry Pump


YW Vertical Slurry Pump
