Sand And Gravel Pump
Sand And Gravel Pump
Sand And Gravel Pump
Sand And Gravel Pump
Specifications
Brand Name :
DENOR
Model Number :
DENOR-GH
Certification :
ISO/CE/TUV
Place of Origin :
China
Type :
GH Sand And Gravel Slurry Pump
Description

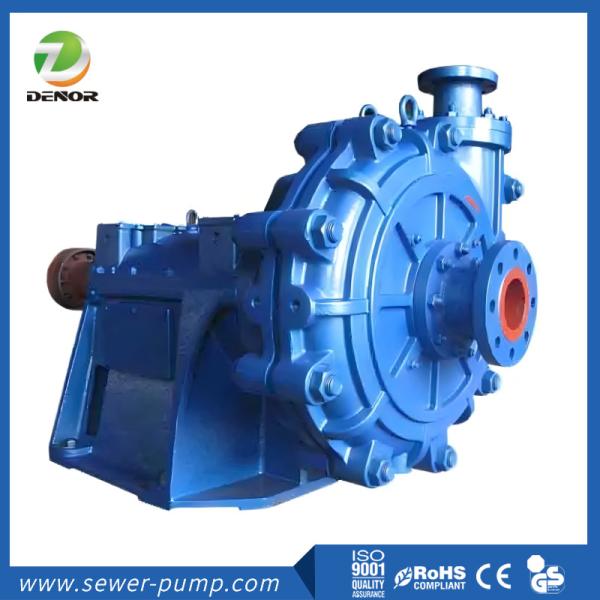

Sand And Gravel Pump


The G (GH) serie sand and gravel pump is a single-stage, single suction, cantilever, horizontal, centrifugal slurry pump, mainly used for conveying strong abrasive particles that are too big for general slurry pump to transport, such as granular coal, metal smelting slag and root crops, as well as for dredger, river dredging, mining and other fields. The pump is especially suitable for large flow quantity, high concentration, high head working conditions, and for transporting high temperature strong abrasive slurry owing to its excellent cavitation resistance and abrasion resistance.


G (GH) Type Industrial Slurry Pump Manufacturers High Pressure Sand And Gravel Pump.

The sand and gravel pump consists of a pump head, sealing components, bearing components, brackets, etc. The bearing lubrication method is grease lubrication.



Scope of use:

Suitable for conveying strong corrosion and high concentration slag slurry in industrial sectors such as metallurgy, mining, coal, power building materials, etc. The sand and gravel pump can also be used in multi-stage series connection.


Structural diagram:

1. Axis

2. Bracket
3. Impeller disassembly ring
4. Positioning sleeve
5. Sealing components
6. Splicing board
7. Rear guard plate
8. Pump body
9. Cartridge
10. Pump cover
11. Front protective panel
12. Impeller 13. Split flange

Sand And Gravel Pump



Performance Parameter



Model
Capacity
Q(m3/h)
Head
(m)
Speed
n(r/min)		 NPSHr
(m)
Efficieney
η(%)
Weight
(kg)
Overall dimensions
L×W×H (mm)		 Dia.of pump
(mm)
Inlet Outlet
6/4D-G
36.00
108.00
180.00
"9.00
8.20
7.00"		 600 2 55 460 1006×500×673 150 100
6/4D-G 50.40
122.40
187.20		 12.50
12.00
10.00		 700 2.2 54 460 1006×500×673 150 100
6/4D-G 57.60
129.60
194.40		 16.40
15.50
14.00		 800 2.5 55 460 1006×500×673 150 100
6/4D-G 72.00
144.00
208.80		 20.50
20.00
18.00		 900 2.7 55 460 1006×500×673 150 100
6/4D-G 79.20
151.20
216.00		 24.00
23.50
22.00		 980 2.8 58 460 1006×500×673 150 100
6/4D-G 79.20
151.20
216.00		 25.00
24.50
23.00		 1000 2.5 57 460 1006×500×673 150 100
6/4D-G 93.60
162.00
230.40		 31.00
30.00
28.00		 1100 2.7 56 460 1006×500×673 150 100
6/4D-G 100.80
165.60
237.60		 36.80
36.00
34.00		 1200 3 55 460 1006×500×673 150 100
6/4D-G 108.00
180.00
244.80		 44.00
43.00
40.00		 1300 3.2 53 460 1006×500×673 150 100
6/4D-G 72.00
129.60
187.20		 51.00
50.60
49.50		 1400 3.5 52 460 1006×500×673 150 100
8/6E-G "133.20
252
360"		 "15
13
10"		 800 2.5 60 1120 1286×550×862 200 150
8/6E-G "133.2
288
396"		 "19
18.5
13.5"		 900 2.5 60 1120 1286×550×862 200 150
8/6E-G "136.8
288
414"		 "22.5
19.5
16"		 980 2.7 60 1120 1286×550×862 200 150
8/6E-G "144
288
424.8"		 "24
20.90
16.50"		 1000 3 59 1120 1286×550×862 200 150
8/6E-G "144
324
468"		 "30
25.5
20.5"		 1100 3 58 1120 1286×550×862 200 150
8/6E-G "165.6
342
504"		 "36
30.9
24.3"		 1200 3 57 1120 1286×550×862 200 150
8/6E-G "187.2
378
540"		 "42
36
29"		 1300 3.2 57 1120 1286×550×862 200 150
8/6E-G "216
396
576"		 "48.2
42
33.5"		 1400 3.5 57 1120 1286×550×862 200 150
10/8F-G 216.00
652.80
489.60		 12.50
12.00
10.80		 500 3 60 2250 1591×857×1143 250 200
10/8F-G 244.80
432.00
594.00		 18.00
17.10
15.50		 600 3 60 2250 1591×857×1143 250 200
10/8F-G 254.00
434.60
635.00		 21.40
20.40
18.40		 650 3 60 2250 1591×857×1143 250 200
10/8F-G 237.60
468.00
684.00		 21.80
23.70
21.40		 700 3 60 2250 1591×857×1143 250 200
10/8F-G 306.00
540.00
792.00		 32.00
31.00
28.00		 800 2.8 59 2250 1591×857×1143 250 200
10/8F-G 329.80
578.00
833.00		 36.10
35.00
31.00		 850 3.5 61 2250 1591×857×1143 250 200
10/8F-G 349.20
612.00
882.00		 40.50
39.20
34.80		 900 3.7 60 2250 1591x857×1143 250 200
10/8F-G 382.20
650.00
930.60		 44.20
42.40
37.70		 940 6 63 2250 1591×857×1143 250 200
10/8S-G 216.00
352.80
489.60		 12.50
12.00
10.80		 500 3 60 2285 1720×950×983 250 200
10/8S-G 254.00
434.60
635.00		 21.40
20.40
18.40		 650 3 60 2285 1720×950×983 250 200
