MIP Fluorine Plastic Lined Slurry Pump
MIP Fluorine Plastic Lined Slurry Pump
MIP Fluorine Plastic Lined Slurry Pump
MIP Fluorine Plastic Lined Slurry Pump
Specifications
Brand Name :
DENOR
Model Number :
DENOR-NJB
Certification :
ISO/CE/TUV
Place of Origin :
China
Type :
MIP Fluorine Plastic Lined Slurry Pump
Description

MIP Fluorine Plastic Lined Slurry Pump

The MIP series fluorine plastic lined slurry pump is suitable for conveying phosphoric acid slurry, fluorosilicic acid containing silicone, mother liquor, etc; Various acid solutions and corrosive slurry electrolytes for wet smelting of zinc, lead, gold, silver, copper, manganese, cobalt, rare earth, etc; Pickling systems, sewage with impurities, and other industries are suitable for both clear liquids and slurries.

Flow Range 9-220m3/h
Head Range 25-65m
Power 4-75kw
Operating temperature <170℃

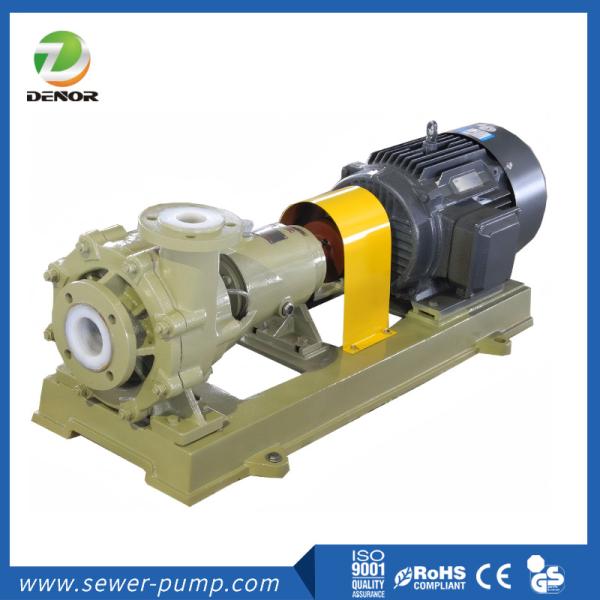

Photo diagram

MIP Fluorine Plastic Lined Slurry Pump

Product Features

The slurry pump impeller design is adopted, the flow channel is closed, the front and rear cover plates have spoiler blades, and it has the anti-clogging ability of the open impeller and the efficiency of the closed impeller, and the side outlet.

The built-in cartridge PEEK mechanical seal can effectively withstand 40%-50% solid content slurry. filter press first choice.

Application

Suitable for the transportation of corrosive liquids and slurries in the sulfuric acid phosphorus fertilizer industry, non-ferrous metal smelting industry, new energy lithium battery industry, chlorine alkali industry, petrochemical industry, wet desulfurization circulating pump, coal chemical industry.

Standard parameter

NO. Type Flow Head EFF NPSHr Aperture Speed Power Weight
m³/h m % m mm r/min kW Kg
1 MIP50-40-130 9 26 42 3.2 50×40 2900 4 110
* 15 25 44
18 25 46
2 MIP50-40-165 9 39 43 3.2 50×40 2900 5.5 145
* 15 38 45
18 38 47
3 MIP50-40-220 9 65 40 3.2 50×40 2900 7.5 155
* 15 65 42
18 65 44
4 MIP65-50-130 18 25 41 3.5 65×50 2900 5.5 162
* 25 25 43
30 24 45
5 MIP65-50-165 18 39 45 3.5 65×50 2900 7.5 168
* 25 38 47
30 36 48
6 MIP65-50-220 20 66 48 3.5 65×50 2900 15 210
* 30 65 50
35 63 52
7 MIP80-65-130 35 26 63 4.0 80×65 2900 7.5 170
* 50 25 65
60 25 66
8 MIP80-65-165 35 39 70 4.0 80×65 2900 15 230
*50 38 70
60 36 70
9 MIP80-65-220 35 66 60 4.0 80×65 2900 22 305
* 50 65 66
60 63 67
10 MIP100-80-165 70 34 58 4.5 100×80 2900 18.5 255
* 100 32 65
110 30 67
11 MIP125-100-220 150 60 58 4.8 125×100 2900 75 985
*200 65 60
220 63 62
