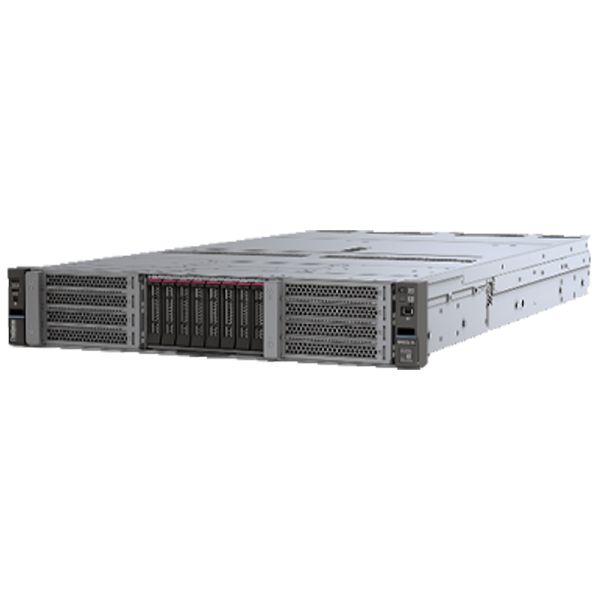

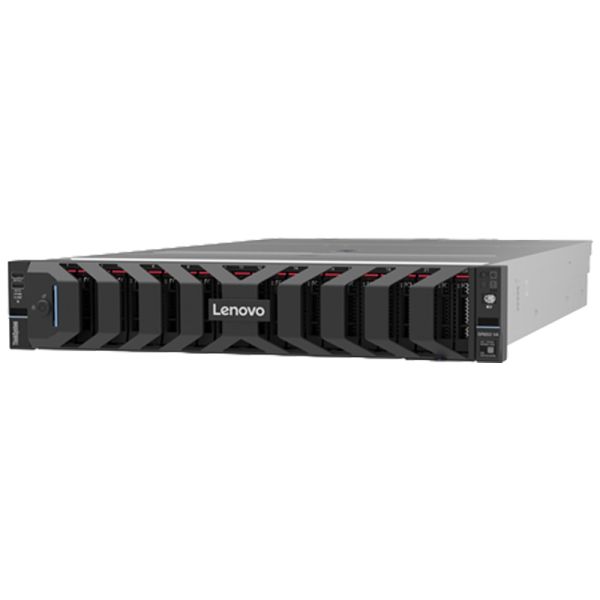

| Form Factor/Height | 2U rack server |
|---|---|
| Processor | Up to 2x Intel Xeon 6 processors, up to 86 cores and 350W TDP |
| Memory | Up to 32x TruDDR5 3DS/RDIMMs with speeds up to 6400MHz; up to 16x TruDDR5 MRDIMMs with speeds up to 8000MHz. Maximum capacity up to 8TB. |
| Drive Bays | Front: Up to 8x 2.5" SAS/SATA/NVMe, 8x E3.S NVMe drives Bootable Device: Up to 2x M.2 SATA/NVMe drives with RAID support, optional hot swap Supports Direct NVMe, VROC/VMD |
| Expansion Slots | Up to 14x PCIe Gen5 slots 2x OCP 3.0 slots for flexible networking options |
| GPUs | Up to 8x single-width GPUs or 4x double-width GPUs |
| Network Interface | OCP adapter installed in the OCP 3.0 slot Networking PCIe adapters |

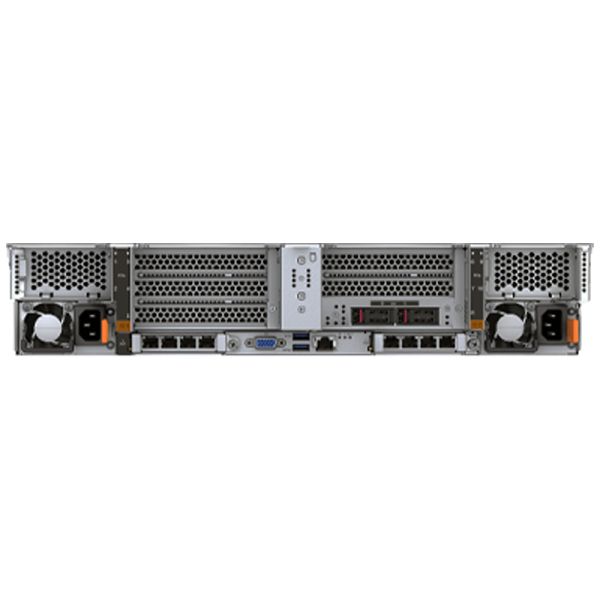

| Ports | Front: Optional 2x USB 3.0 with XClarity Mobile support and 1x mini DP Optional 1x external diagnostics handset port Rear: 2x USB 3.0 G1 1x VGA 1x 1GbE RJ-45 dedicated management port Optional 2nd 1GbE management port in OCP slot location Optional 1x Serial port |
| HBA/RAID Support | VROC for NVMe SW RAID (0,1,5,10); common building blocks including standard and internal PCIe RAID/HBA adapters |
| Cooling Solution | Lenovo Neptune Core and Neptune Air technology |
| Power | Dual Redundant AC & DC (multiple wattages); Platinum & Titanium rated PSUs |
| Systems Management | Lenovo XClarity Controller |
| Operating Systems Supported | Microsoft, SUSE, Red Hat, VMware |
