Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Specifications
Supply Ability :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Model Number :
PowerEdge R760xd2
Processor :
Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor or Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor and optional Intel® QuickAssist Technology
Delivery Time :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Form Factor :
2U Rack Serverr
Place of Origin :
China
Payment Terms :
T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Brand Name :
Dells
Price :
$6800/pcs
MOQ :
1
Memory slots :
• 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s • Supports registered ECC DDR5 DIMMs only Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor. Note: 5600 MT/s RDIMMs are applica
Warrenty :
3years
Packaging Details :
Carton with waterproof warpped
Drive bays :
Front bays: • Up to 12 x 3.5-inch SAS/SATA max 264 TB Mid bays: • Up to 12 x 3.5-inch SAS/SATA max 264 TB Rear bays: • Up to 4 x 3.5-inch SAS/SATA max 88 TB • Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB • Up to 2 x 2.5-inch NVMe max 15.36 TB
Description

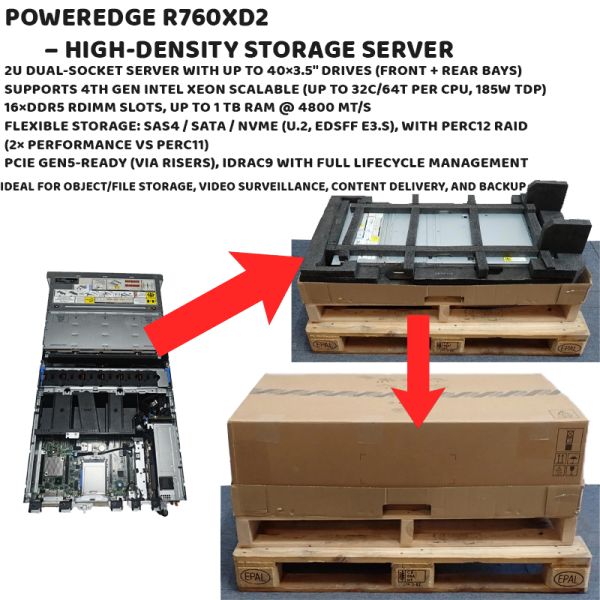

Dell PowerEdge R760xd2 2U Rack Server
High-performance rack server with Xeon processors designed for data center network storage applications.
Dell PowerEdge R760xd2 2U Rack Server with 5th Gen Intel Xeon Scalable Processors, 16 DDR5 DIMM Slots, and 12 x 3.5-inch SAS/SATA Drive Bays
Processor Specifications
  • Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor
  • Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor
  • Optional Intel QuickAssist Technology
Memory Configuration
  • 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max
  • Speeds up to 5600 MT/s
  • Supports registered ECC DDR5 DIMMs only
Maximum memory speed: 4800 MT/s (processor limitation)
5600 MT/s RDIMMs applicable for 5th Gen Intel Xeon Scalable Processors
Storage Controllers
Controller Type Options
Internal RAID PERC H755, PERC H965i, PERC H355
Internal Non-RAID HBA355i, HBA465i
Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives (hot swappable), or USB
External HBAs HBA355e, HBA465e
External RAID H965e
Drive Bay Configuration
Location Configuration Maximum Capacity
Front Bays Up to 12 x 3.5-inch SAS/SATA 264 TB
Mid Bays Up to 12 x 3.5-inch SAS/SATA 264 TB
Rear Bays Up to 4 x 3.5-inch SAS/SATA 88 TB
Rear Bays Up to 4 x 2.5-inch NVMe with 3.5-inch carrier 30.72 TB
Rear Bays Up to 2 x 2.5-inch NVMe 15.36 TB
Rear Bays 4 x E3.S NVMe 61.44 TB
Power Supply Options
  • 1800 W Titanium 200-240 VAC or 240 VDC, hot swap redundant
  • 1400 W Platinum 100-240 VAC or 240 VDC, hot swap redundant
  • 1400 W Titanium 277 VAC or 336 VDC, hot swap redundant
  • 1400 W Titanium 100-240 VAC or 240 VDC, hot swap redundant
  • 1100 W Titanium 100-240 VAC or 240 VDC, hot swap redundant
  • 1100W LVDC -48 - -60 VDC, hot swap redundant
  • 700 W Titanium 200-240 VAC or 240 VDC, hot swap redundant
Physical Specifications
Cooling Air cooling
Fans Up to 6 Standard (STD) fans, hot swappable
Height 86.8 mm (3.41 inches)
Width 481.6 mm (18.96 inches)
Depth 837 mm (32.95 inches)
Form Factor 2U rack server
Management & Software
Embedded Management
  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • CloudIQ for PowerEdge plugin
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
Tools
  • iDRAC RESTful API with Redfish
  • IPMI
  • RACADM CLI
  • Dell System Update
  • Enterprise Catalogs
  • Dell Repository Manager
Security Features
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key management)
  • Secure Boot
  • Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Network & Connectivity
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP card 3.0 (optional)
GPU Options Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
Ports
Location Configuration
Front Ports 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0

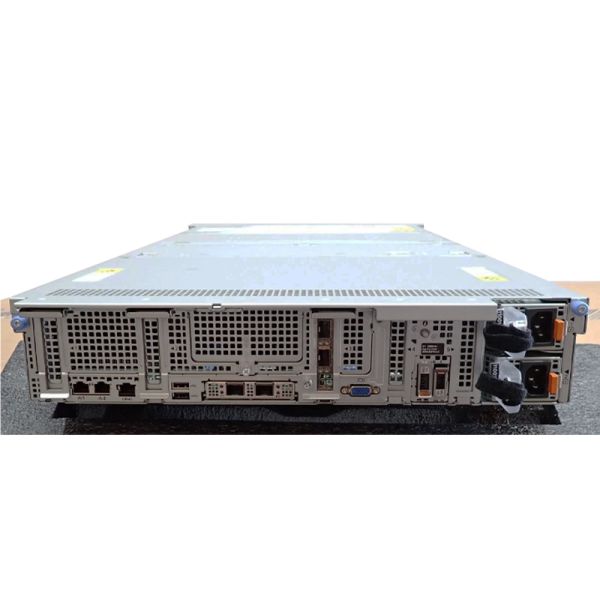

Rear Ports 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
Internal Ports 1 x USB 3.0 (optional)
PCIe Expansion
Up to five PCIe slots with various configurations supporting Gen4 technology
Supported Operating Systems & Hypervisors
  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
