PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
Specifications
Price :
$4200/pcs
Form Factor :
1U Rack Serverr
Supply Ability :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Payment Terms :
T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Place of Origin :
China
MOQ :
1
Internal Storage Controllers (RAID) :
PERC H365i DC-MHS/H365i/H965i/front PERC H965i DC-MHS
Brand Name :
Dells
Processor :
1 Xeon 6 E-core CPU or 1 Xeon 6 P-core CPU with R1S option
External Storage Controllers :
HBA465e, H965e(RAID)
Dimensions :
42.8 * 482 * 815.14 mm
Warranty :
3 Years
Drive bays :
Up to 8 x 2.5-inch SATA/NVMe or Up to 10 x 2.5 - inch SATA/NVMe
Model Number :
PowerEdge R470
Delivery Time :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Memory slots :
16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s
Packaging Details :
Carton with waterproof warpped
Description

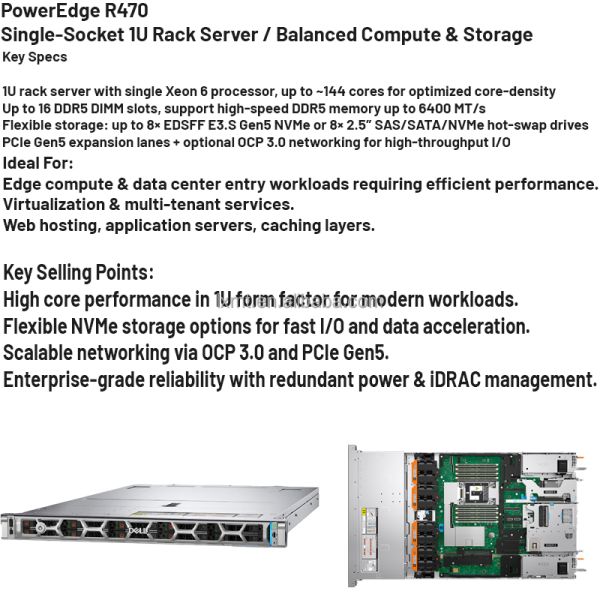

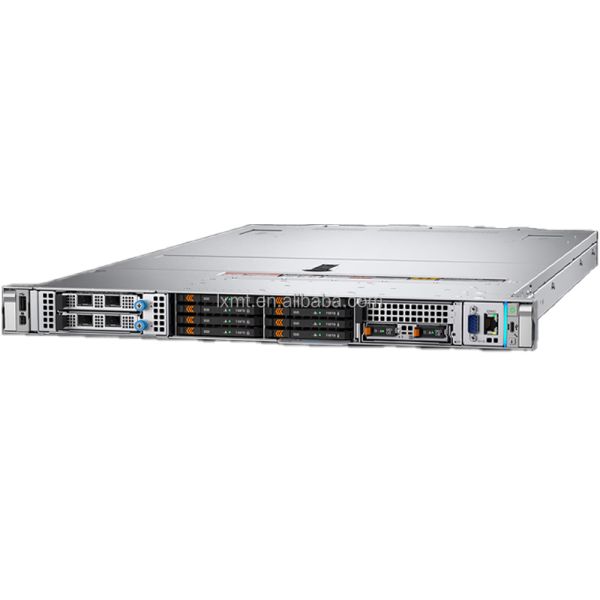

PowerEdge R470 Rack Server
Original genuine PowerEdge R470 rack server designed for internet computer data storage applications and modern workloads.
Key Features
  • High core performance in 1U form factor for modern workloads
  • Flexible NVMe storage options for fast I/O and data acceleration
  • Scalable networking via OCP 3.0 and PCIe Gen5
  • Enterprise-grade reliability with redundant power & iDRAC management
PowerEdge R470 1U Rack Server with Xeon 6 E-core CPU, 16 DDR5 DIMM Slots, and Up to 10 x 2.5-inch SATA/NVMe Drive Bays
Technical Specifications
Processor
One Intel Xeon 6 E-core processor with up to 144 cores per processor or One Intel Xeon 6 P-core processor with up to 86 Cores with R1S option
Memory
  • 16 DDR5 DIMM slots, supports RDIMM 4TB max, speeds up to 6400 MT/s
  • Intel Xeon® 6 E-core processor - supports 1 TB max
  • Intel Xeon® 6 P-core processor with up to 86 cores with R1S option - supports 4 TB max
  • Supports registered ECC DDR5 DIMMs only
Note: The installed processor may reduce the operating speed of the DIMM
Storage Controllers
  • Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter
  • External Controllers: HBA465e, H965e(RAID)
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs, M.2 interposer with up to 2 x M.2 NVMe SSDs or USB
Drive Bays
Front bays:
  • Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB
  • Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
  • Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB
  • Up to 10 x 2.5-inch SATA/NVMe (with 4 x 2.5-inch universal) max 614.4 TB
  • Up to 4 x 3.5-inch SATA max 128 TB (only supported with rear 2 x E3.S drives; not supported as standalone front-only configuration)
Rear bays:
  • Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB
Power Supplies
  • 800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
  • 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
  • 1500 W 277 Vac and HVDC Titanium, hot swap redundant
  • 1400W -48v DC Titanium, hot swap redundant
Cooling & Fans
Air cooling with up to 4 sets (dual fan module) hot swappable fans
Dimensions
  • Height: 42.8 mm (1.69 inches)
  • Width: 482 mm (19.0 inches)
  • Depth: 816.92 mm (32.16 inches) with bezel
  • Depth: 815.14 mm (32.09 inches) without bezel
  • Depth (Front I/O Configuration): 829.44 mm (32.09 inches) without bezel
Note: Front I/O configuration will not have a bezel.
Form Factor
1U rack server
Embedded Management
  • iDRAC
  • iDRAC Direct
  • iDRAC RESTfull API with redfish
  • RACADM CLI
  • iDRAC Service Module
Security Features
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secured Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC10 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified
  • Chassis Intrusion Detection
Network Options
OCP network options: Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
Embedded NIC: 1 Gb dedicated BMC Ethernet port
GPU & DPU Options
GPU: Up to 4 x 75 W SW
DPU: NVIDIA BlueField-3 2 x 200 GbE B3220
Ports
Front Ports:
  • 1 x USB 2.0 Type-C port
  • 1 x USB 2.0 Type A port (optional)
  • 1 x Mini-DisplayPort (optional)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports:
  • 1 x Dedicated BMC Ethernet port
  • 2 x USB 3.1 Type A ports
  • 1 x VGA
Internal Ports:
  • 1 x USB 3.1 Type A port
PCIe Slots
Up to 4 Gen5 PCIe slots (x16 connectors)
  • Slot 1 - 1 x8 Gen5 Low Profile
  • Slot 1 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser
  • Slot 4 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser
  • Slot 31 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser
  • Slot 32 - 1 x16 Gen5 (x16 connector) full height, half length on rear riser
Supported Operating Systems & Hypervisors
  • Canonical Ubuntu Server LTS
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
  • Windows Server
  • Windows Server Datacenter
Additional Options
Optional security bezel available
