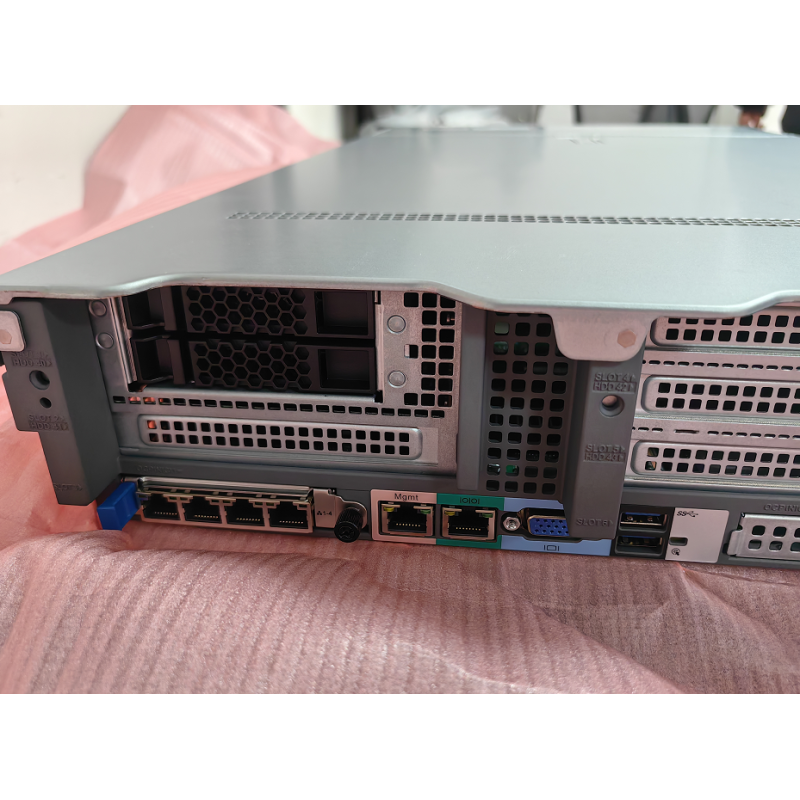

xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
Specifications
Brand Name :
xFusion
Model Number :
2288H V5
MOQ :
1
Price :
800USD~1650USD per piece
Payment Terms :
T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Supply Ability :
50 pieces per day
Delivery Time :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Packaging Details :
Carton with waterproof warpped
CPU :
2 × Intel Xeon Silver 4210 (10 Cores, 2.2GHz)
RAM :
64GB DDR4 ECC (4 × 16GB)
Storage :
4 x 4 TB SAS HDD
RAID Card :
3108 (2GB Cache)
Network Card :
4 x 1GbE Onboard + 2 x 10GbE SFP+
Power Supply :
900W*2
Place of Origin :
China
Description
xFusion 2288HV5 2U Rack Server

The xFusion FusionServer 2288H V5 is a versatile, high-density 2U, 2-socket rack server engineered for demanding enterprise workloads including cloud computing, virtualization, big data, and high-performance computing (HPC). Originally developed as part of the Huawei product line, this server is now available under the xFusion brand following the company's strategic spin-off.

Key Features & Specifications
  • Processor: Supports up to two Intel Xeon Scalable processors (Skylake or Cascade Lake), with up to 28 cores per CPU and maximum TDP of 205W
  • Memory: 24 DDR4 DIMM slots supporting up to 3TB of RAM (with 128GB modules) and up to 12 Intel Optane Persistent Memory 100 series modules for total capacity up to 7.5TB
  • Storage Flexibility: Up to 20 x 3.5-inch or 31 x 2.5-inch SAS/SATA/SSD drives, supports up to 28 NVMe SSDs for high-speed data access, with internal OS boot options via two M.2 SSDs
  • Expansion: Up to 10 PCIe 3.0 slots providing high scalability for GPUs, NICs, and RAID controllers
  • Management: iBMC (Intelligent Bare Metal Controller) for automated operations, maintenance, fault diagnosis, and remote management via HTML5 or Redfish
  • Energy Efficiency: Dynamic Energy Management Technology (DEMT) reduces power consumption by up to 15% without compromising performance
  • High Reliability: Fault Diagnosis & Management (FDM) provides precise fault locating (up to 93% accuracy) and proactive hardware monitoring
  • GPU Support: Configurable with up to 2 dual-slot full-height full-length GPU acceleration cards for AI inference or graphics workloads
Technical Specifications
Model FusionServer 2288H V5
Form Factor 2U Rack Server
Processor 1-2 * Intel Xeon Scalable (1st / 2nd Gen, up to 205W)
Chipset Intel C622
Memory Type DDR4 RDIMM / LRDIMM
Memory Slots 24 DIMM Slots
Max Memory Up to 3TB
Memory Speed Up to 2933 MT/s
Storage Options 2.5" / 3.5" SAS / SATA / NVMe
Drive Bays Up to 31 * 2.5" or 20 * 3.5" or NVMe options
RAID Support RAID 0 / 1 / 5 / 6 / 10 / 50 / 60
Boot 2 * M.2 SSD
Network 2 * 10GbE + 2 * 1GbE (LOM)
Expansion Slots Up to 10 * PCIe 3.0
GPU Support Up to 2 double-width or 7 single-width GPUs
Power Supply 550W / 900W / 1200W / 1500W (Redundant)
Cooling 4 Hot-swap Fans (N+1)
Management iBMC (IPMI / Redfish / KVM)
Operating System Windows Server / Linux / VMware
Security TPM 2.0, Secure Boot
Operating Temp 5°C - 45°C
Use Case Virtualization / Cloud / Database / Big Data
Company Overview
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
Contact Sales Manager
xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage xFusion 2288HV5 2U Rack Server with Intel Xeon Silver 4210, 64GB DDR4 ECC RAM, and 4 x 4 TB SAS HDD Storage
Frequently Asked Questions
Why should I choose your product?
We act as agents for various brand servers and accessories, offering competitive pricing and first-class technical support for easy purchasing and implementation.
Can I order samples?
Yes, we offer single unit samples with full warranty service.
How do I need to place an order?
You can place orders directly through Alibaba's website or contact us to discuss alternative ordering methods.
How do I pay?
We accept T/T payment, Alibaba transactions, and other payment methods.
When will the goods be delivered after payment?
We maintain stock availability with typical delivery within 1-7 days. You can select your preferred transportation method.
How do you ensure quality and service?
As authorized agents with professional certifications, we specialize in electronic equipment sales and production. Our customer service team is available 24/7 for any inquiries.
Are these products brand new?
Yes, all products are brand new with comprehensive warranty coverage. (We can assist with second-hand purchases upon request).
Can you give me a discount?
As a premier server distributor, we offer competitive pricing. Larger orders qualify for additional discounts.
