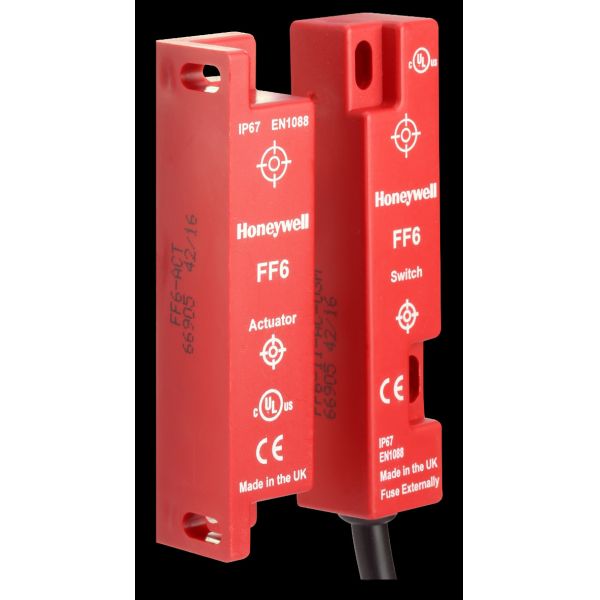

Honeywell FF6 10 AC 03 SS safety limit switch with magnetic sensing and multiple cable length options
Honeywell FF6 10 AC 03 SS safety limit switch with magnetic sensing and multiple cable length options
Specifications
Voltage - Supply :
230V
Description :
Position, Proximity, Speed (Modules) RoHS
Mfr. Part # :
FF6-10-AC-03-SS
Model Number :
FF6-10-AC-03-SS
Description

Product Overview

The Honeywell FF6 Series are magnetically actuated, non-contact safety limit switches designed for machine guarding applications. They monitor guard positions and provide input to safety relays. Their slim, rectangular design is ideal for space-constrained applications. Featuring non-contact operation, flexible installation, and IP67 sealing for harsh environments, these switches are suitable for global machinery applications with CE, UKCA, and UL certifications.

Product Attributes

  • Brand: Honeywell
  • Material: ABS plastic or 316 stainless steel housing
  • Certifications: CE, UKCA, UL 508

Technical Specifications

Model/SeriesContact ConfigurationHousing MaterialTerminationCable LengthCertifications
FF6 Series1NC, 1NC/1NO, 2NC, or 2NC/1NOABS plastic or 316 stainless steelPre-wired cable or M12 quick disconnect3 m [9.8 ft], 6 m [19.7 ft], or 5 m [16.4 ft] with M12CE, UKCA, UL 508

Key Features & Benefits

  • Non-contact sensing minimizes installation and set-up.
  • Pre-wired cable with color-coded lead-wires or integral M12 connector simplifies electrical connection.
  • Actuator can approach the switch from head-on, slide-by, or rotation/hinge for flexible installation.
  • Requires no mechanical linkage for actuation.
  • Up to two safety contacts and an optional auxiliary contact.
  • Slim package size: 19.0 mm x 19.0 mm x 82.5 mm [0.75 in x 0.75 in x 3.25 in].
  • IP67 environmentally sealed.
  • Operating temperature: -25C to 55C [-13F to 131F].
  • Vibration: 10 g (10 Hz to 50 Hz).
  • Shock: 30 g (11 ms).

Potential Applications

  • Equipment and machinery guards
  • Can forming and filling
  • Packaging equipment
  • Pick and place assembly equipment
  • Plastic molding equipment
  • Printing machinery
  • Semiconductor equipment
  • Textile machinery
  • Woodworking equipment
