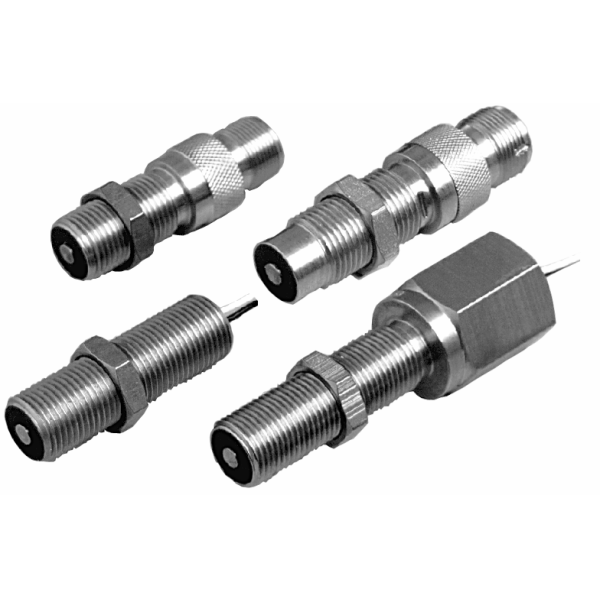

Self powered Honeywell 3040A speed sensor with stainless steel housing and Mil Std 202F vibration certification
Self powered Honeywell 3040A speed sensor with stainless steel housing and Mil Std 202F vibration certification
Specifications
Voltage - Supply :
-
Interface Type :
-
Description :
Position, Proximity, Speed (Modules) RoHS
Mfr. Part # :
3040A
Model Number :
3040A
Description

Product Overview

Power Output VRS sensors are passive magnetic speed sensors designed for driving low resistance loads at large air gaps. They operate by converting the approach and passing of a ferrous metal target into a changing magnetic field, which induces a current in a coil winding. This generates an AC voltage output that varies in amplitude and frequency with the target's speed. These sensors are self-powered, require no external voltage, have no moving parts, and are adaptable to various configurations and applications.

Product Attributes

  • Brand: Honeywell
  • Origin: USA
  • Material: Stainless steel threaded housing
  • Certifications: Mil-Std 202F Method 204D (Vibration)

Technical Specifications

Catalog ListingThread Length (A)WeightMin. Output Voltage (Vp-p)Inductance (mH max.)Coil Resistance (Ohm)Gear Pitch RangePole Piece Diameter (mm [in])Air Gap (mm [in])Min. Surface Speed (m/s [in/s])Max. Operating Frequency (kHz)Operating Temp. Range (C [F])TerminationLoad Resistance (kOhm)
3040AN28 mm [1.1 in]70 g [2.5 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ. -55 to 120 [-67 to 250]MS3106 connector, pre-leaded1.25
3040AN2563 mm [2.5 in]84 g [3.0 oz]
3040AN3076 mm [3.0 in]84 g [3.0 oz]MS3106 connector
3040AN40101 mm [4.0 in]98 g [3.5 oz]
3040AN50127 mm [5.0 in]128 g [4.5 oz]
3040S2050 mm [2.0 in]70 g [2.5 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ.-55 to 120 [-67 to 250]20 AWG Teflon- insulated leads1.25
3040S3076 mm [3.0 in]84 g [3.0 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ.-55 to 120 [-67 to 250]20 AWG Teflon- insulated leads1.25
3040H20N/A140 g [5.0 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ.-55 to 120 [-67 to 250]20 AWG Teflon- insulated leads, conduit mount1.25
3040A35 mm [1.4 in]70 g [2.5 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ.-55 to 120 [-67 to 250]MS3106 connector1.25
3040A2563 mm [2.5 in]84 g [3.0 oz]7085120 to 16212 DP (module 2.11) or coarser4.75 mm [0.187 in]0.127 mm [0.005 in]0.38 m/s [15 in/s] typ.40 typ.-55 to 120 [-67 to 250]MS3106 connector1.25

2411200005_Honeywell-3040A_C17479367.pdf
