High Resolution Optical Encoder Broadcom HEDS-9040 T00 with Two Channel Quadrature and Index Pulse Output
High Resolution Optical Encoder Broadcom HEDS-9040 T00 with Two Channel Quadrature and Index Pulse Output
High Resolution Optical Encoder Broadcom HEDS-9040 T00 with Two Channel Quadrature and Index Pulse Output
High Resolution Optical Encoder Broadcom HEDS-9040 T00 with Two Channel Quadrature and Index Pulse Output
Specifications
Description :
Through Hole Specialized Sensors RoHS
Mfr. Part # :
HEDS-9040#T00
Model Number :
HEDS-9040#T00
Package :
Through Hole
Description

Product Overview

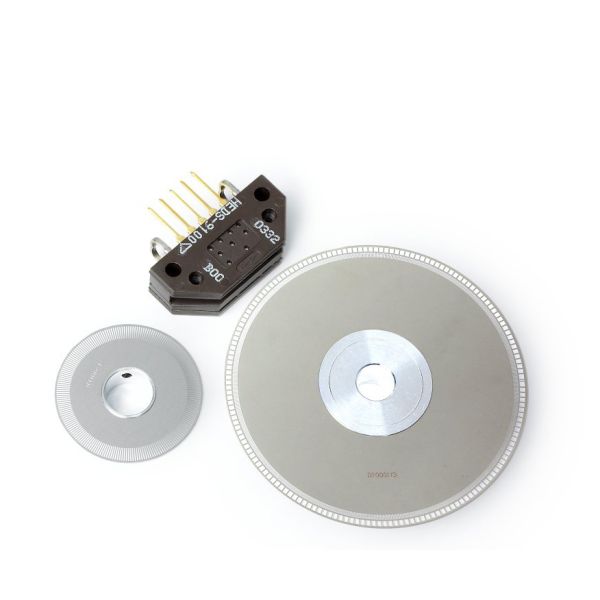

The HEDS-9040 and HEDS-9140 are three-channel optical incremental encoder modules that detect rotary position when used with a codewheel. These low-cost modules offer high performance with a lensed LED source and a detector IC, providing two quadrature outputs with an index pulse. They are ideal for high-volume applications such as printers, plotters, tape drives, and industrial automation equipment.

Product Attributes

  • Brand: Avago Technologies (implied by product name and datasheet context)
  • Origin: Not specified
  • Material: Not specified
  • Color: Not specified
  • Certifications: Not specified

Technical Specifications

ModelResolutionOperating TemperatureSupply VoltageOutput TypeOptical Radius
HEDS-9040Up to 2000 CPR-40C to 100CSingle 5 VTwo channel quadrature output with index pulse, TTL compatibleDesigned for use with HEDX-614X codewheel (23.36 mm optical radius)
HEDS-9140Up to 2000 CPR-40C to 100CSingle 5 VTwo channel quadrature output with index pulse, TTL compatibleDesigned for use with HEDx-5x4x codewheel (11.00 mm optical radius)

2508211638_Broadcom-HEDS-9040-T00_C22443377.pdf
