Specifications
Sensor Type :
Radar Sensor
Description :
Radar Sensor Specialized Sensors RoHS
Mfr. Part # :
BGT60ATR24CE6327XTMA1
Model Number :
BGT60ATR24CE6327XTMA1
Description

Product Overview

The BGT60ATR24C is an automotive 60 GHz radar sensor designed for ultra-wide bandwidth FMCW operation. It features a compact package, a digital interface for chip configuration and radar data acquisition, and an integrated state machine for independent operation with optimized power modes for low-power consumption.

Product Attributes

  • Product Name: BGT60ATR24C
  • Package Marking: 60A24
  • Qualified for Automotive Applications
  • Product Validation: AEC-Q100/101

Technical Specifications

FeatureSpecification
Frequency Band60 GHz
Operation ModeFMCW
Bandwidth4 GHz
Channels2 TX / 4 RX
InterfaceDigital interface for chip configuration and radar data acquisition
Power ManagementOptimized power modes for low-power operation
ControlIntegrated state machine for independent operation

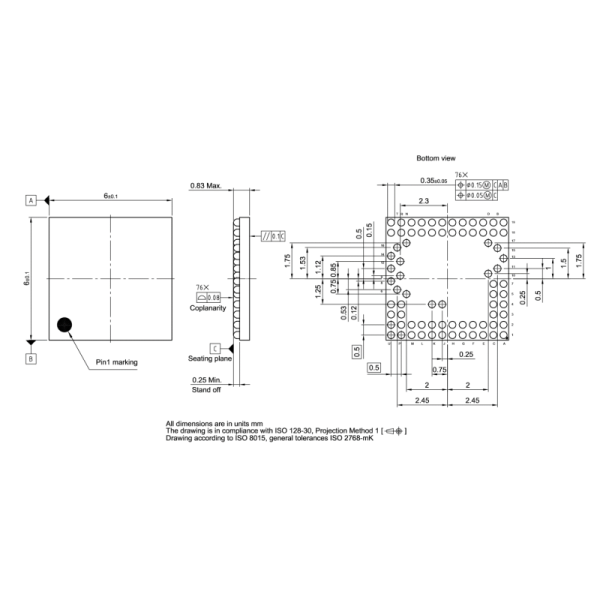

PackagePG-VFWLB-76-1
Potential ApplicationsRadar frontend for gesture sensing, High resolution FMCW radars, Short range sensing operations, Hidden sensing applications behind radome

2411011300_Infineon-BGT60ATR24CE6327XTMA1_C6868906.pdf
