PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
PH ORP Conductivity Endress Hauser Liquiline M CM42 1 Channel Transmitter
Specifications
Brand Name :
Endress+Hauser
Model Number :
CM42-MEA000EAZ00
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Sensor Input: :
Digital, Memosens pH, (glass) ORP
Approval :
ATEX II (1)2G Ex ib (ia Ga) IIC T4/T6 G
Certificate :
not selected
Output :
1x4-20mA, HART
Housing :
Plastics (PC)
Cable Entry :
Gland M20x1,5
Description

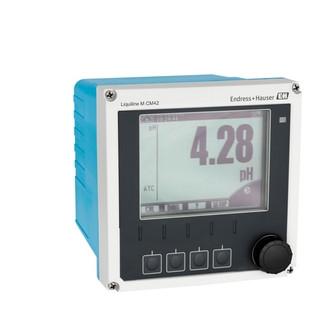

Endress+Hauser 1-channel transmitter Liquiline M CM42

Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline’s intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.

The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:

  • Chemicals

  • Food & Beverages

  • Life Sciences

  • Power & Energy

  • Oil & Gas

  • Primaries & Metal

Liquiline CM42 features the following protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS PA

  • FOUNDATION Fieldbus

With its international explosion protection approvals, such as IECEx, ATEX, FM, CSA, TIIS and NEPSI, the transmitter is suitable for hazardous area use.

Measuring principle


ISFET

Application


Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

Characteristic

Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

Measuring principle

Potentiometric pH measurement

Design

Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
Liquiline is developed acc. to the international safety standard IEC 61508

Material

Plastic or stainless steel housing with EPDM sealings

Dimension

Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch
Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

Temperature sensor

Applicable:
Pt100, Pt1000, NTC 30K

Ex certification

: ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

Ingress protection


IP66/67, NEMA 4X

Input

One channel transmitter for Memosens and analog (pH, ORP, conductivity)

Output / communication

1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later
