20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
20m Cable Non Hazardous Area Display Endress Hauser Instruments FHX40-A1B
Specifications
Brand Name :
Endress+Hauser
Model Number :
FHX40-A1B
Certification :
CE
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-14weeks
Packaging Details :
standard carton packing
Approval :
Non-hazardous area
Cable :
20m/65ft (> HART)
Additional Option :
Mounting bracket, pipe 1"/2"
Material of housing :
Aluminium alloy AL Si 12
Material of cable gland :
Brass, nickel plated
Dimensions [mm :
122x120x80 (4.8x4.72x3.15) (HxWxD)
Net weight :
2.870 Kilogram
Country of origin :
DE
Description

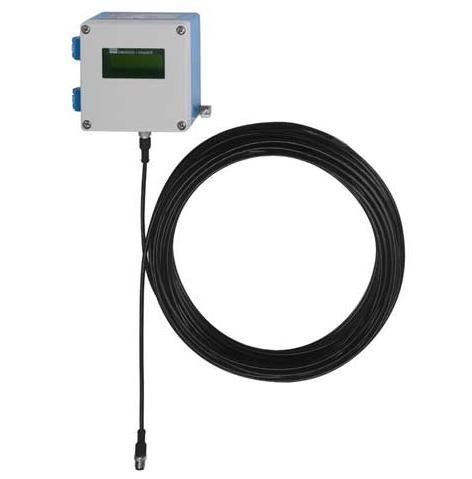

Endress+Hauser Display FHX40-A1B

The remote display and operation FHX40 contains the display module VU331 of the instruments Prosonic M, Levelflex M, Micropilot M and Gammapilot M. By a cable it is connected to the electronics in the sensor housing.

The separate housing FHX40 will be mounted at an easy accessible location. This enables an easy monitoring of the measuring value and the simply operating of the display module.

The connection cable (20 m (65 ft)) has a round plug-in connector M12 on both sides. This enables a fast, secure and easy mounting.

For the connection of the electronics with the display and operation tools are not required.

Should the display VU331 be needed directly at the sensor, an easy modification makes this possible (see Section 4.).

Technical Data of the FHX40

Max. cable length

20 m (65 ft)

Temperature range

40 to +60 °C (-40 to +140 °F) for temperature class T6 -40 to +75 °C (-40 to +167 °F) for temperature class T5

Ingress protection:

IP66/67 according to EN60529 with plugged cable

Ingress protection of the cable

IP68 acc. to EN 60529 for plugged connector

Material of housing

Aluminium alloy AL Si 12

Material of cable gland

Brass, nickel plated

Dimensions [mm]

122x120x80 (4.8x4.72x3.15) (HxWxD)
