High-Speed SEMI E84-Compliant Optical Transceiver for Precision Automation

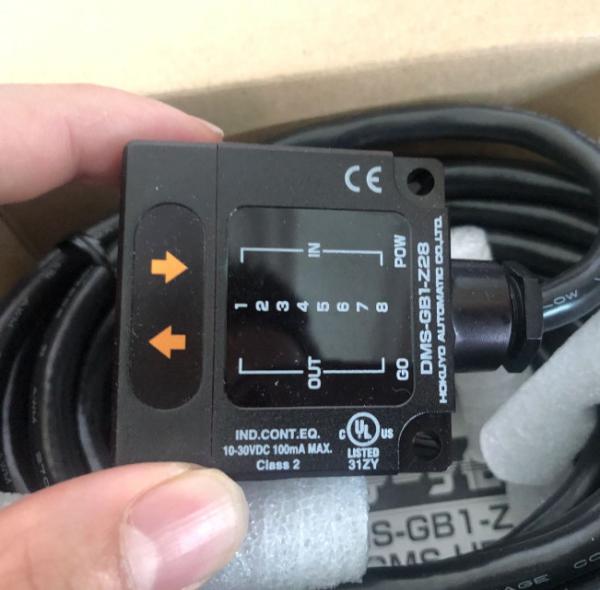

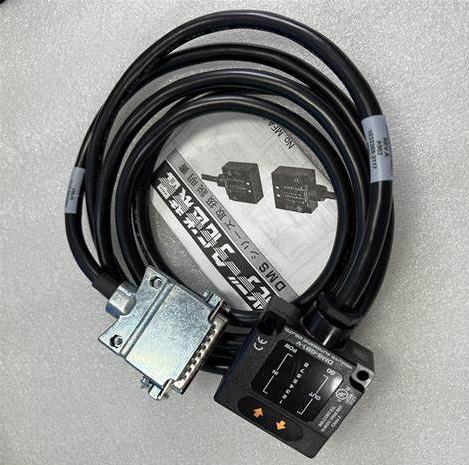

The HOKUYO DMS-GB1-Z28 is an advanced parallel optical data transmission module engineered for mission-critical industrial applications requiring seamless integration with SEMI E84-0200A protocols. Designed as an active/passive dual-mode transceiver, it excels in semiconductor automated material handling systems (AMHS) and AGV/OHT control, delivering 8-bit parallel data transfer at 19.2 kbps with 40 ms cycle time . Equipped with a 25-pin D-sub connector and 5m shielded cable, it ensures reliable bidirectional communication in high-illumination environments (up to 4,000 lux), outperforming Sick’s ODSU-2000 series, which struggles with ambient light interference . The module’s infrared LED technology (850 nm wavelength) and pulsed amplitude modulation (PAM) enable stable operation in ISO 14644-1 Class 5 cleanrooms, while its ±20° directional alignment ensures flexible optical coupling in confined spaces.

Constructed with an IP64-rated aluminum housing, the DMS-GB1-Z28 withstands dust, water splashes, and vibrations (500 m/s² per IEC 60068-2-27), making it suitable for harsh factory floors . Its DC 10–30V power supply and ≤100 mA power consumption ensure energy-efficient performance for long-term deployments. Unlike Keyence’s GLV series, which lacks semi-E84 compliance, the DMS-GB1-Z28’s encoder input function dynamically adjusts transmission parameters based on AGV speed, optimizing safety during high-velocity maneuvers . The modular design and replaceable polycarbonate window simplify maintenance and resist chemical contamination, critical for semiconductor wafer handling.

Enhanced Environmental Resilience for Harsh Industrial Conditions

The DMS-GB1-Z28 redefines reliability with -10°C to +50°C temperature tolerance and 85% humidity resistance, ensuring stable performance in freezing warehouses and high-heat semiconductor fabs . Its high-frequency noise-resistant design minimizes electromagnetic interference, a key advantage over Omron’s E3Z series, which relies on analog outputs prone to signal degradation . The module’s semi-E84 protocol alignment streamlines integration with automated material handling systems, while the onboard potentiometer configuration reduces setup time by 30% compared to traditional wired solutions.

Certified for CE/RoHS compliance and UL listing, the DMS-GB1-Z28 meets global safety standards for EU and North American markets . Its 1-year warranty and global technical support network ensure minimal operational disruptions. With a 1-meter adjustable transmission range, it outperforms shorter-range alternatives in narrow conveyor systems, making it ideal for compact assembly lines. The optical window contamination warning function alerts users to maintenance needs, while the screw-mounting mechanism ensures secure installation in high-vibration environments.

Smart Manufacturing-Ready Integration with ROS Compatibility

Designed for Industry 4.0 applications, the DMS-GB1-Z28 supports ROS (Robot Operating System) via the urg_node package, enabling seamless integration with autonomous robotics platforms for real-time navigation and obstacle detection . Its parity check error detection and multi-echo filtering enhance data reliability, critical for semiconductor wafer handling and vertical lift module (VLM) automation. For cleanroom environments, the module’s low outgassing properties ensure compliance with ISO 14644-1 Class 5 standards, surpassing Sick’s ODSU-2000 in contamination resistance .

The DMS-GB1-Z28’s dual-mode operation (active/passive) offers flexibility in complex automation networks, while its shielded 5m cable minimizes signal loss in high-noise environments. By combining semi-E84 protocol compatibility with ±20° directional flexibility, it delivers superior alignment tolerance compared to the DMS-HB1-Z06, making it suitable for dynamic industrial applications . Whether used in high-speed logistics or precision semiconductor production, this module combines reliability, efficiency, and adaptability to meet the evolving demands of smart manufacturing.
