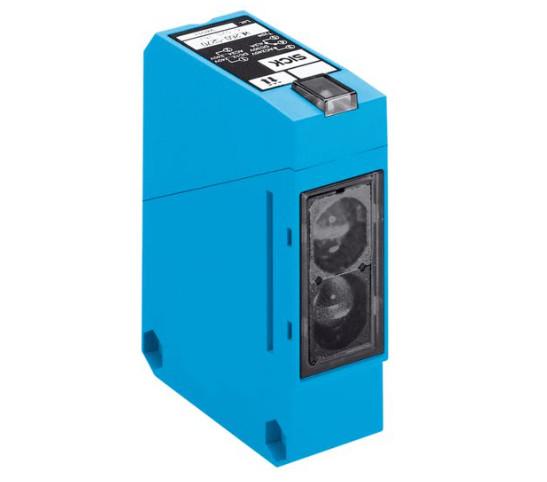

SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
SICK WL260-S270 Diffuse Reflective Photoelectric Sensor Sick Diffuse Sensor
Specifications
Brand Name :
SICK
Model Number :
WL260 - S270
Certification :
3C
Place of Origin :
Germany
MOQ :
1
Price :
USD 100-10000/Piece
Payment Terms :
T/T
Supply Ability :
1/piece in stock
Delivery Time :
3-7
Packaging Details :
50*50*50mm
Cable Diameter :
5 mm
Locking Nut Material :
Die-cast zinc
Protection Class :
III
Rated Operating Distance :
4 mm
Mounting Type :
Threaded, Flange, Bracket
Wave Length :
660 nm
Quality :
100% Brand
Window Material :
Glass
Description

1. High - Performance Sensing Principle

The SICK WL260 - S270 is a photoelectric sensor that operates on the retro - reflective principle. It utilizes a dual - lens system for enhanced detection accuracy. With a red LED light source, it can detect objects within a range of 0.01 m to 15 m. The polarized filter is a remarkable feature, as it enables the sensor to reliably detect even shiny or reflective objects. This makes it ideal for industrial applications where dealing with materials like metals or plastics with glossy surfaces is common. For example, in a packaging line, it can accurately sense the presence of shiny product containers without false triggering.

2. Versatile Electrical Specifications

This sensor offers great flexibility in terms of power supply. It can operate on a wide voltage range, from 12 VDC to 240 VDC and 24 VAC to 240 VAC. The power consumption is ≤ 5 VA, which is relatively low, contributing to energy - efficient operation. The switching output is a relay, which is electrically isolated and has change - over contacts. It can handle a switching current of 3 A at 240 VAC or 30 VDC. The response time is ≤ 20 ms, allowing for quick detection and response in fast - paced industrial processes. Whether in a high - speed conveyor system or a precision assembly line, the WL260 - S270 can keep up with the demands.

3. Durable and Adaptable Design

The WL260 - S270 is built to last in various industrial environments. It has an enclosure rated at IP67, providing excellent protection against dust and water ingress. The housing is made of plastic (ABS), which is both lightweight and durable. The optics are made of plastic (PMMA), ensuring good light transmission and resistance to wear. It can operate in ambient temperatures ranging from - 25 °C to 55 °C, and can be stored in temperatures from - 40 °C to + 70 °C. The sensor comes with a mounting bracket and a reflector (P250), and its terminal chamber is easily accessible, simplifying installation and maintenance.

Attribute Details
Sensor Type Retroreflective photoelectric sensor
Detection Principle Dual-lens system with polarized filter for reliable detection of shiny surfaces
Sensing Range 0.01 m to 15 m (with reflector P250)
Light Source Visible red LED (unpolarized), 100,000-hour lifespan at 25°C
Supply Voltage 12–240 VDC / 24–240 VAC (±10% tolerance)
Power Consumption ≤5 VA
Connection Type Cable gland (M12 connector optional)
Switching Output SPDT relay (change-over contacts, NO/NC), 3 A at 240 VAC/30 VDC
Response Time ≤20 ms
Switching Frequency 25 Hz
Adjustment Options 270° potentiometer for sensitivity adjustment
Optical Features - Light spot size: 300 mm at 10 m distance
- Beam angle: 1.7°
Housing Material ABS plastic (IP67-rated for dust and water protection)
Optics Material PMMA (acrylic)
Mounting Panel mount with included bracket (BEF-W260) and reflector (P250)
Certifications - CE compliant (EN 61000-6-3)
- UL file no. 242356
Environmental Resistance - Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Protection against reverse polarity, overload, and short circuits
Additional Features - LED status indicators for power and detection
- Removable cover for protected configuration controls
Standards Compliance - EN 60947-1 (AC-15/DC-13 contact rating)
- EN 50081-1 (EMC emissions)
Dimensions (W x H x D) 25 mm x 78 mm x 63 mm
Weight 120 g (excluding accessories)
Included Accessories Reflector P250, mounting bracket, and terminal chamber access tools
