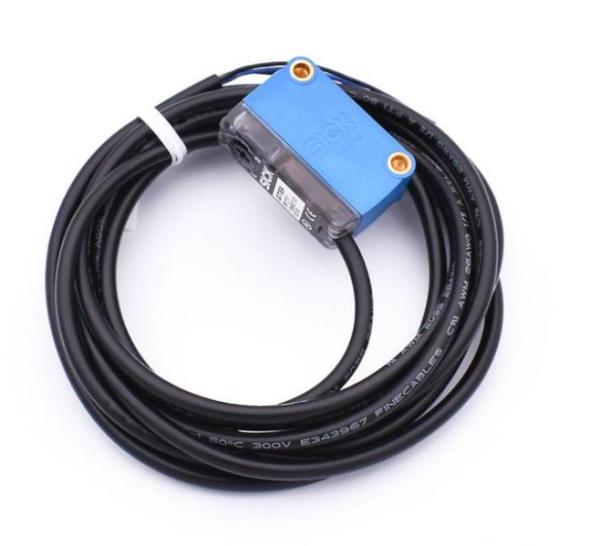

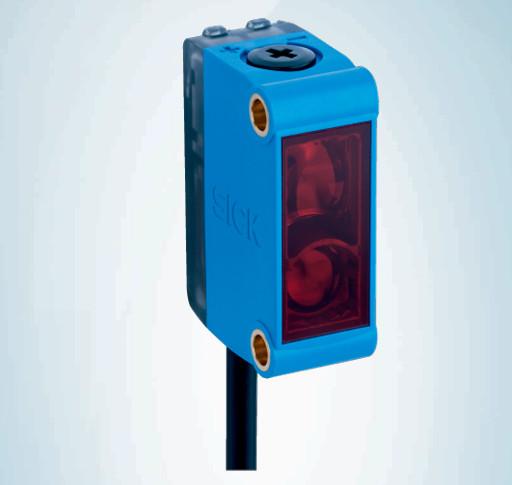

SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
SICK GTB6-N1212 Sensor | 12m/IP67/Fast Response | Industrial Automation
Specifications
Brand Name :
SICK
Model Number :
GTB6-N1212
Certification :
3C
Place of Origin :
Germany
MOQ :
1
Price :
USD 100-10000/Piece
Payment Terms :
T/T
Supply Ability :
1/piece in stock
Delivery Time :
3-7
Packaging Details :
50*50*50mm
Accessory Group :
Reflectors
Sensing Range :
35 mm ... 140 mm
Output :
Analog, Digital, Serial
Distancia De Lectura :
40 mm ... 1.500 mm
Current Consumption :
15 mA, 20 mA
Initialization Time :
500 ms
Device Type :
Fiber-optic cables
Supply Voltage :
10 V DC ... 30 V DC
Description

Superior Performance for Reliable Detection

The SICK GTB6-N1212 photoelectric sensor stands out with its remarkable performance. Offering a detection range of up to 12 meters, it ensures accurate and consistent object detection even in challenging industrial settings. With a quick response time of less than 625 microseconds and a switching frequency of 1 kHz, it can handle high-speed operations effortlessly. The sensor's background suppression function enables precise detection, ignoring irrelevant background objects. Powered by 10 - 30 V DC, it provides stable operation, while the visible red light (650 nm) simplifies alignment and setup, making it a top choice for industrial automation tasks.

Robust Design for Harsh Environments

Built to endure tough conditions, the GTB6-N1212 features an IP67 rating, safeguarding it against dust, water ingress, and occasional immersion. Its housing, constructed from durable ABS/PC plastic, along with a stainless-steel mounting bracket, withstands vibrations and impacts, ensuring long-term reliability. The sensor operates within a wide temperature range from -25°C to +55°C, making it suitable for various industrial applications, whether indoors or outdoors. This rugged design guarantees continuous performance, reducing downtime and maintenance costs.

Versatile Applications and User-friendly Features

This sensor caters to diverse industrial automation needs. In manufacturing lines, it detects parts on conveyor belts with high precision; in packaging, it ensures proper product positioning and counts items accurately. The GTB6-N1212 supports both light-on and dark-on switching modes, adapting to different detection requirements. Its NPN output type enables seamless integration with existing control systems. Moreover, the sensor offers easy mechanical adjustment for quick setup and large LED indicators for clear status feedback, enhancing user convenience and operational efficiency.

Attribute Details
Sensor Type Photoelectric proximity sensor with background suppression (BGS).
Sensing Range - Max: 5 mm … 250 mm (object with 90% remission based on standard white, DIN 5033).
- Typical: 35 mm … 140 mm.
Light Source - PinPoint LED (visible red light, 650 nm).
- Light spot size: ø6 mm at 100 mm distance.
- LED lifespan: 100,000 hours at +25°C.
Electrical Data - Supply voltage: 10–30 V DC (±10% ripple).
- Current consumption: 30 mA (no load).
- Output type: NPN open collector.
- Signal voltage: High ≈ V<sub>S</sub>, Low ≤3 V.
- Max output current: ≤100 mA (<24 V DC) or ≤50 mA (>24 V DC).
- Response time: <625 µs.
- Switching frequency: 1,000 Hz.
- Circuit protection: Reverse polarity (A), input/output reverse polarity (B), overcurrent/short-circuit (D).
Mechanical Data - Housing: Rectangular (ABS/PC plastic).
- Dimensions: 12 mm × 31.5 mm × 21 mm.
- Connection: 3-wire PVC cable (2 m, 0.14 mm²).
- Weight: 60 g.
- Mounting: Stainless steel bracket (1.4301/304, BEF-W100-A) included.
- Adjustment: Mechanical spindle (5 turns).
Environmental Data - Enclosure rating: IP67 (dust/water ingress protection).
- Operating temperature: –25°C … +55°C.
- Storage temperature: –40°C … +70°C.
Certifications - UL: File No. KH.E348498 & KH7.E348498.
- CE: Compliant.
Technical Features - Background suppression: Eliminates false triggers from reflective surfaces.
- ASIC technology: Enhances optical performance and crosstalk immunity.
- Large LED indicators: Clear status feedback.
Warranty 12 months (standard).
Applications - Industry: Packaging, automotive, food processing, logistics.
- Tasks: Object detection, part counting, position verification.
