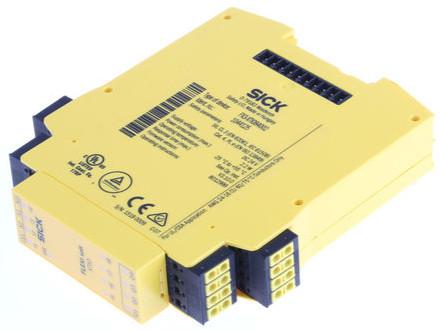

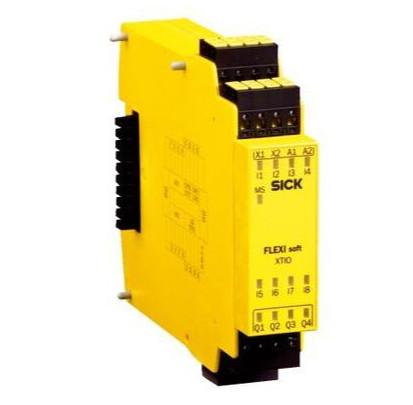

FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
FX3-XTIO84002 SICK Laser Sensor I/O Module 8In/4Out SIL3 Industrial Safety
Specifications
Brand Name :
SICK
Model Number :
FX3 - XTIO84002
Certification :
3C
Place of Origin :
Germany
MOQ :
1
Price :
USD 100-10000/Piece
Payment Terms :
T/T
Supply Ability :
1/piece in stock
Delivery Time :
3-7
Packaging Details :
50*50*50mm
Application :
Industrial Control
Switching Mode :
Light/dark switching
Seal Material :
FKM
Installation Type :
Non-flush
Thread Size :
M12 x 1
Measurement Range :
Up to 100 meters
Indication :
LEDs
Supply Voltage Ub :
10 V DC ... 30 V DC
Description

Product Attributes

  • Safety Integrity: Achieves SIL3 (IEC 61508), Category 4 (EN ISO 13849), and PL e (EN ISO 13849), ensuring high - level safety in industrial applications. The PFHD (Probability of Failure on Demand per Hour) is 4.8 x 10 - 9 (for single - channel output) and 0.9 x 10 - 9 (for dual - channel output), with a TM (continuous operation time) of 20 years (EN ISO 13849).
  • Electrical Characteristics: Operates with a supply voltage via FLEXBUS+. Input voltage HIGH ranges from 13 V DC to 30 V DC, and LOW from –5 V DC to 5 V DC. Output is of PNP semiconductor type with short - circuit protection. Output voltage HIGH is 15 V DC to 30 V DC (or 16 V DC to 30 V DC in some cases). Internal power consumption is ≤ 2.2 W.
  • Interface and Structure: Has 8 safety input terminals, 4 safety output terminals, and 2 test output terminals. Connection type is spring - loaded terminal. It has a compact 22.5mm form factor, and the enclosure protection level is IP20 (EN 60529). The protection class is III (EN 61140). It can work in an ambient temperature range of –25 °C to +55 °C and be stored at –25 °C to +70 °C.

Advanced Safety Features

The SICK FX3 - XTIO84002 is a paragon of safety in industrial automation. With its SIL3 safety integrity level, it safeguards industrial operations against potential hazards. It adheres to strict international safety standards such as IEC 61508 and EN ISO 13849. This ensures that in high - risk industrial environments, like manufacturing plants with heavy machinery, it can effectively prevent accidents. Its high - performance safety technology, including fast - cut - off in just 8 ms, provides rapid response to safety threats, minimizing risks to personnel and equipment.

Efficient and Flexible Operation

This product offers remarkable efficiency and flexibility. Its modular design allows for easy integration with various automation systems. The 8 safe inputs and 4 safe outputs can be configured through the user - friendly Flexi Soft Designer software. This enables seamless connection to different sensors and actuators, facilitating customized automation solutions. Whether it's a small - scale production line or a large - scale factory setup, the FX3 - XTIO84002 can adapt, optimizing operational processes and enhancing productivity.

Robust Build and Reliability

Constructed with durability in mind, the FX3 - XTIO84002 features a robust build. Its materials, such as the PNP semiconductor output with short - circuit protection, ensure long - term reliability. It can withstand harsh industrial environments, with an operating temperature range from –25 °C to +55 °C and a storage temperature range of –25 °C to +70 °C. The IP20 enclosure protection level shields it from dust and other contaminants, guaranteeing stable performance over its 20 - year continuous operation time, making it a reliable choice for industrial automation needs.

Attribute Details
Model FX3 - XTIO84002
Safety Integrity Level SIL3 (IEC 61508)
SILCL3 (EN 62061)
Category Category 4 (EN ISO 13849)
Performance Level PL e (EN ISO 13849)
PFHD (Probability of Failure on Demand per Hour) 4.8 x 10 - 9 (for single - channel output)
0.9 x 10 - 9 (for dual - channel output)
TM (Continuous Operation Time) 20 years (EN ISO 13849)
Compatibility Compatible with Flexi Loop
Fast Cut - off Time 8 ms
Number of Safety Inputs 8
Protection Class III (EN 61140)
Voltage Supply Through FLEXBUS+
Input Voltage (HIGH) 13 V DC - 30 V DC
Input Voltage (LOW) –5 V DC - 5 V DC
Output Type PNP semiconductor, with short - circuit protection
Number of Test Pulse Generators 2
Output Voltage (HIGH) 15 V DC - 30 V DC (or 16 V DC - 30 V DC in some cases)
Supply Voltage 24 V DC (16.8 V DC - 30 V DC)
Internal Power Consumption ≤ 2.2 W
Interface - Terminal Type Spring - loaded terminal
Enclosure Protection Level IP20 (EN 60529)
Ambient Operating Temperature –25 °C - +55 °C
Ambient Storage Temperature –25 °C - +70 °C
