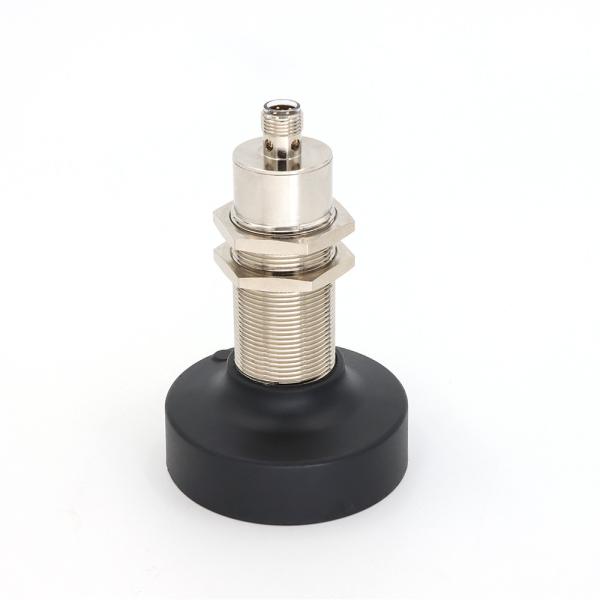

U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector
U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector
U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector
U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector
Specifications
Brand Name :
KRONZ
Model Number :
U30-D6000N(P)1T-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Detection range :
350-6000mm
Blind zone :
0-350mm
Repeatability :
±0.15%F.S.
Response time :
232ms
Initialization time :
＜ 500ms
Supply voltage :
10-30V DC,reverse-polarity protection
Load impedance :
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Weight :
185g
Description

Main Feature:
▶ Full Metal M30 installation threaded sleeve
▶ Used in harsh environments


Basic Feature:
▶ 1 pc npn switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V


Technical Parameter

Model U30-D6000N(P)1T-R00A
Dection range 350-6000mm
Blind zone 0-350mm
Resolution 0.17-2.5mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 232ms
Switching hysteresis ±5mm
Switching frequency 4Hz
Initialization time < 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type

Teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 185g
Output type N1: 1 npn switching output, NO/NC
Dimensional drawing U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector
