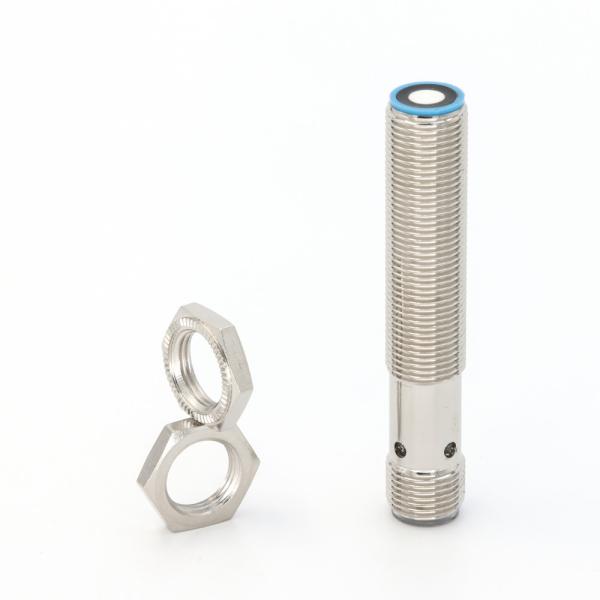

4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V
4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V
4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V
4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V
Specifications
Brand Name :
KRONZ
Model Number :
U12-D120UT-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
5 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :
Ultrasonic Sensors U12
Detection Range :
20-120mm
Output :
Analog output 0-10V
LED Color :
Green, Red
Blind zone :
0-20mm
Resolution :
0.1mm
Response time :
18ms
Connection Type :
4 pin,M12 connector
Description
▶ M12 installation threaded sleeve, the shortest full length is only 67mm
▶ Small blind zone, small sound cone, suitable for close-range fine detection

Basic Feature:
▶ 1 analog voltage output 0-10V
▶ Realize detection distance learning function through white lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V

Technical Parameter
ModelU12-D120UT-R00A
Dection range20-120mm
Blind zone0-20mm
Resolution0.1mm
Repeatability±0.15%F.S.
Accuracy±1%(built-in temperature drift compensation)
Response time18ms
Initialization time＜ 500ms
Supply voltage10-30V DC,reverse-polarity protection
Red LEDno object detected:Lights up, teaching-in when no object detected:Flashes
Green LEDobject detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection200mA,Red LED and Green LED flashing at the same time
Load impedanceI/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current≤30mA
Input typeTeach-in and synchronization
MaterialCopper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure ratingIP67
Connection type4pin, M12 connector
Ambient temperature-25℃ ~+70℃(248~343K)
Storage temperature-40℃ ~+85℃(233~358K)
Weight16g
Output typeI: 1 analog voltage output 0-10V
Dimensional drawing

4 Pin U12 Industrial Ultrasonic Sensors IP67 Analog Current Output 0 - 10V
