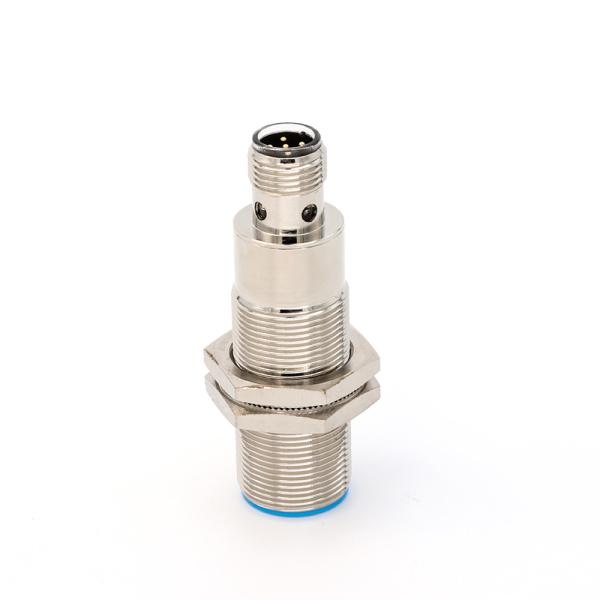

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
Specifications
Brand Name :
KRONZ
Model Number :
U18-D300N(P)32T-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Detection range :
30-300mm
Resolution :
0.1mm
Switching hysteresis :
2mm
Switching frequency :
45Hz
Supply voltage :
10-30VDC
Load impedance :
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Description

Ultrasonic Sensor U18 NPN PNP 45Hz 200mA 30-300mm Distance Sensors


A compact, industrial-grade proximity sensor with dual NPN/PNP outputs and 30-300mm adjustable detection range. Features 45Hz response speed and IP67 protection for reliable operation in harsh environments.

Key Features

Precision Distance Sensing

  • 30–300mm Detection Range – Adjustable via potentiometer

  • ±2% Measurement Accuracy – Reliable object positioning

  • 45Hz Response Frequency – Fast detection for moving targets

Flexible Output Options

  • PNP (NO/NC) + NPN (NO/NC) – Configurable for any PLC input

  • 200mA Sink/Source Current – Directly drives relays or small loads

Industrial Durability

  • IP67 Rated Housing – Dustproof & waterproof for harsh environments

  • -25°C to +70°C Operation – Stable performance in extreme conditions

  • ABS Plastic + Metal Thread – Vibration & impact resistant

Easy Installation & Adjustment

  • M18 Threaded Barrel (54mm Length) – Standard industrial mounting

  • LED Status Indicator – Power/Output visual feedback

  • Teach-in Function – Quick calibration via button


Technical Parameters

Model U18-D300N(P)32T-R00A
Dection range 30-300mm
Blind zone 0-30mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 22ms
Switching hysteresis 2mm
Switching frequency 45Hz
Initialization time ＜ 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 35g
Output type N32: 2 npn switching output NO/NC
P32: 2 pnp switching output NO/NC
Dimensional drawing U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors


Product Images

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors


Company Profile

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
