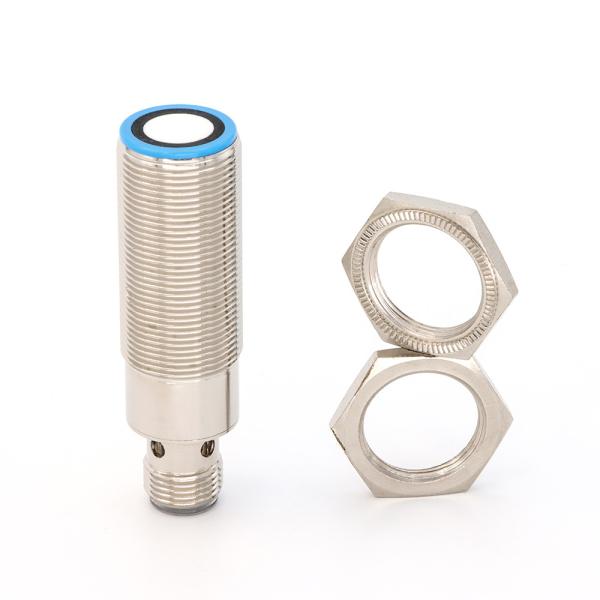

32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz

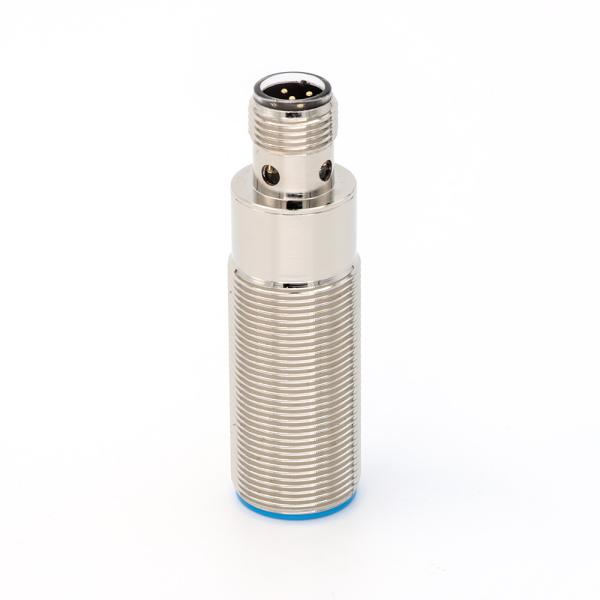

32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz
32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz
32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz
Specifications
Brand Name :
KRONZ
Model Number :
U18-D500N(P)32T-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Detection range :
50-500mm
Resolution :
0.15mm
Repeatability :
±0.15% F.S.
Supply voltage :
10-30V DC,reverse-polarity protection
Switching frequency :
31Hz
Red LED :
no object detected:Lights up, teaching-in when no object detected:Flashes
Load impedance :
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current :
≤30mA
Description
What is ultrasonic used for? Ultrasonic sensors operate on the principle of echolocation—similar to how bats navigate. The sensor’s transducer emits an ultrasonic pulse, which travels through the air and reflects off any object in its path. The returning echo is then detected by the sensor, and the time delay is used to calculate the exact distance between the sensor and the object. This contactless sensing method makes ultrasonic sensors ideal for use in environments where physical touch is not feasible.

Main Feature:
▶ M18 installation threaded sleeve
▶ Easy to instal

Basic Feature:
▶ 1 pc npn or pnp switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Analog voltage output 0-10V or analog current output 4-20 mA
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V


Technical Parameter

Model U18-D500N(P)32T-R00A
Dection range 50-500mm
Blind zone 0-50mm
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 32ms
Switching hysteresis 2mm
Switching frequency 31Hz
Initialization time ＜ 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 35g
Output type N32: 2 npn switching output NO/NC
P32: 2 pnp switching output NO/NC
Dimensional drawing 32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz
