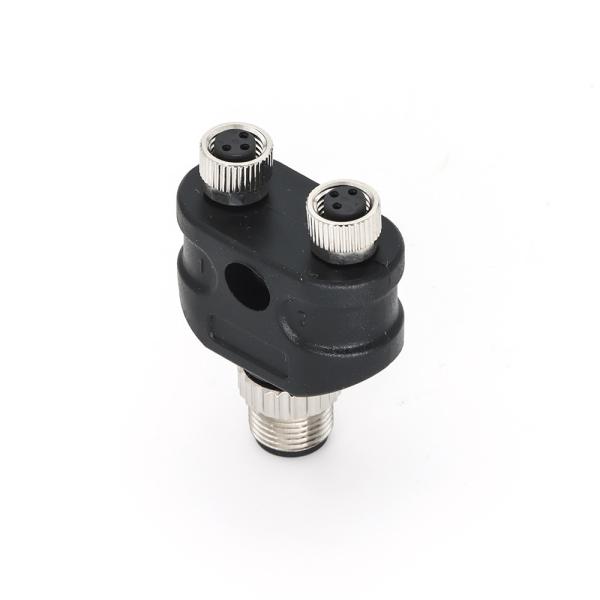

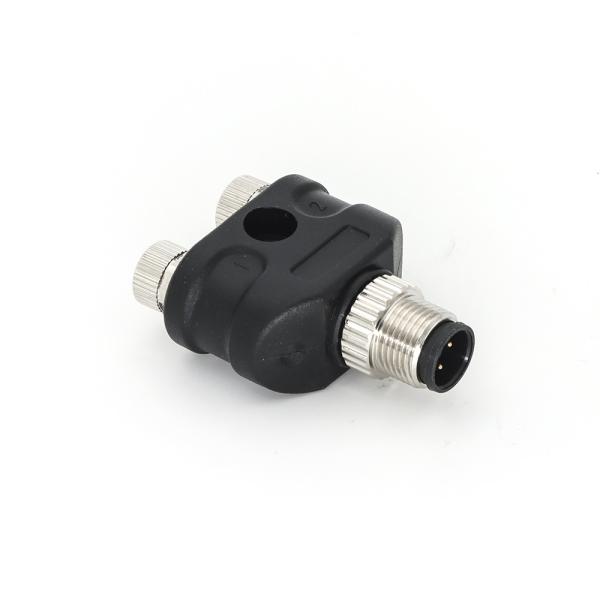

A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female
Specifications
Model Number :
Y1M4-2F3/Y01H
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M12 to M8 Y-distributor
Standard :
IEC 61076-2-101
Contact nut material :
Brass, nickle-plated
Housing material :
TPU, black
Endurance(shell) :
>100 cycles
Insulation Resistance :
≥ 100MΩ
Degree of protection :
IP67
Pin :
3 / 4
Description

The Y-Distributor M12 Industrial Connector represents a reliable solution designed to meet the rigorous demands of industrial environments. With its robust construction, standardized M12 connectors, and versatile connectivity options, it ensures optimal performance and efficiency in data and power transmission applications.

Technical Parameter

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection

IP67














Circuit diagram Coding Rated current Voltage Pin assignment Model No.
A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female A 2A 60V A Coded Y Distributor IP67 M12 Connector 4 Pin Male To M8 3 Pin Female Y1M4-2F3/Y01H

*For more customization details,please consult relevant technical personnel
