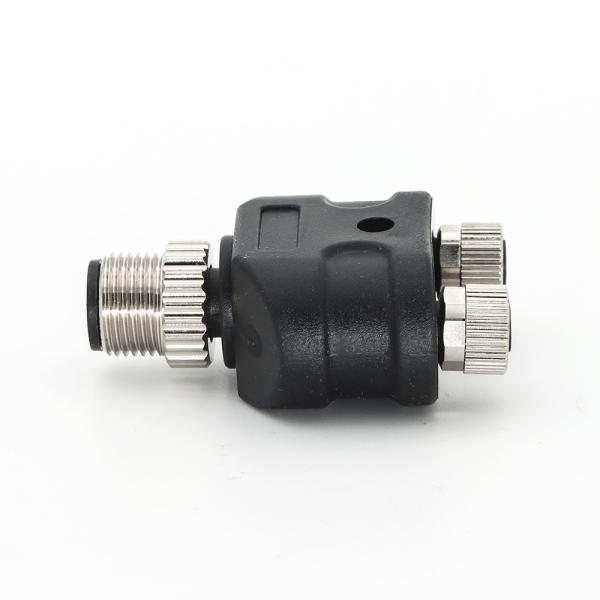

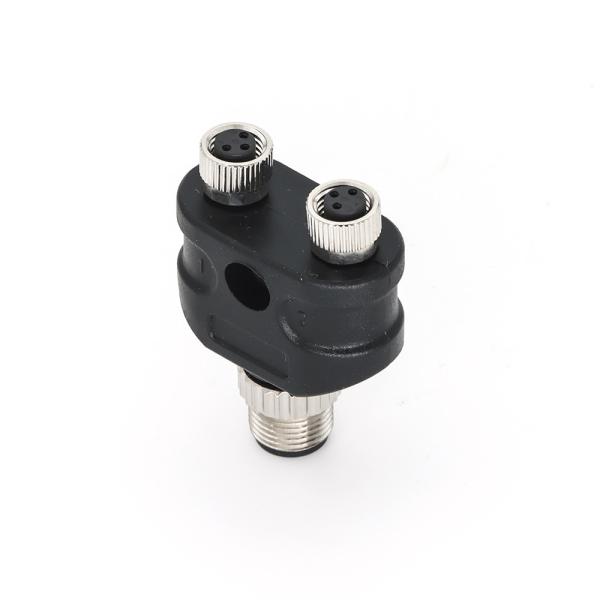

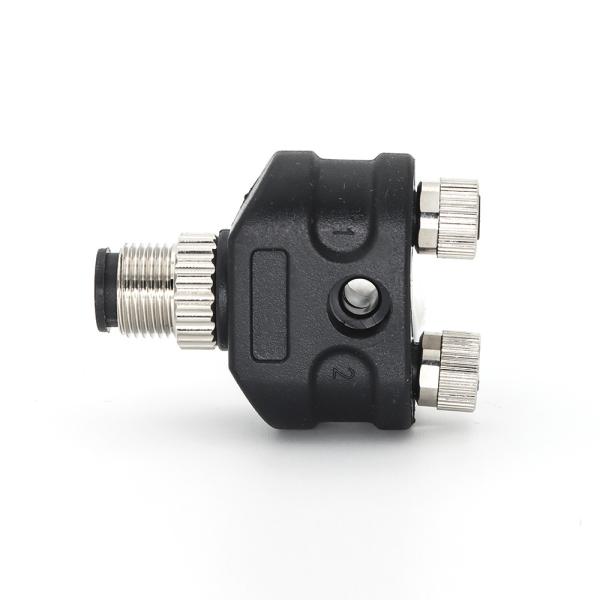

3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67
Specifications
Model Number :
Y1M3-2F3/Y13H
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Type :
Contact
Product name :
M12 to M8 Y-distributor
Color :
Black
IP rate :
IP67
Endurance(shell) :
>100 cycles
Ambient temperature :
-25~+85℃
Connector type :
Screw Locking
Pin :
3-3
Description

An M12 Y splitter is a type of industrial connector used to split one M12 connection into two separate outputs or inputs, forming a "Y" shape. It is commonly used in sensor and actuator wiring to simplify cabling, reduce installation time, and improve system organization.

Key Features:

  • M12 Threaded Interface: Uses the standard M12 connector interface (12mm metric thread) with either 3-pin, 4-pin, or 5-pin configurations, depending on the signal requirements.

  • Y-Shaped Design: The splitter has one male connector on one side (input) and two female connectors on the other side (outputs), or vice versa.

  • Applications: Frequently used in factory automation, process control, and machine building to connect multiple devices (such as sensors or actuators) to a single input/output port on a controller or junction box.

  • Sealed and Robust: Often features an IP67 or IP68 rating, making it suitable for harsh or wet environments.

Technical Parameter

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67














Circuit diagram Coding Rated current Voltage Pin assignment Model No.
3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67 A 2A 60V 3 Pin Y Type Distributor Connector M12 Male To M8 Female A Coded IP67 Y1M3-2F3/Y13H

*For more customization details,please consult relevant technical personnel
