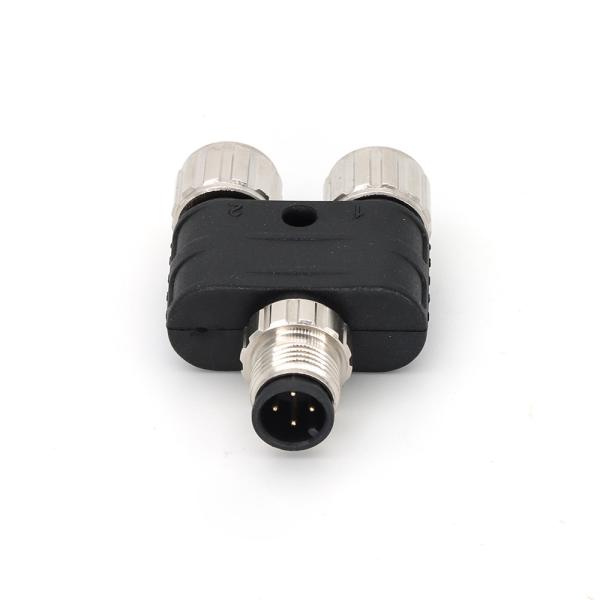

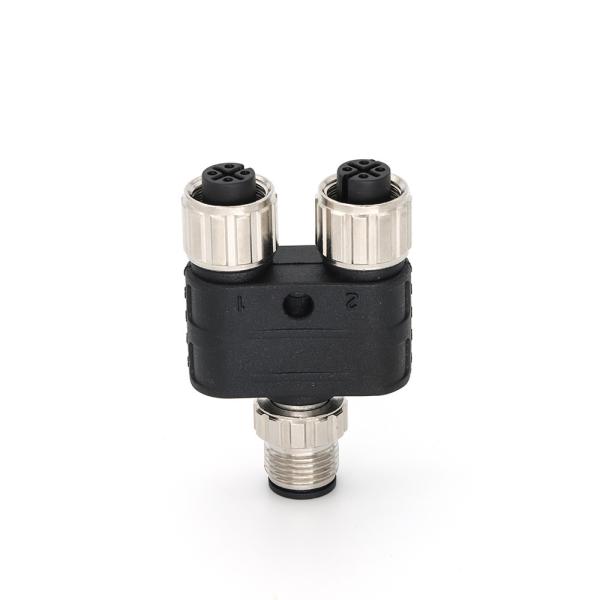

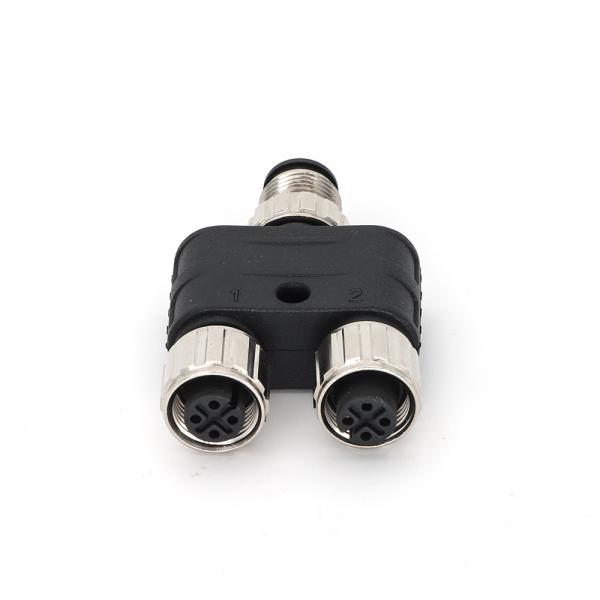

IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded
Specifications
Model Number :
YM4-2F4/Y14A
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Type :
Contact
Product name :
Y-distributor Connectors
Color :
Black
IP rate :
IP67
Endurance(shell) :
>100 cycles
Contact resistance :
≤ 5mΩ
Ambient temperature :
-25~+85℃
Pin :
4
Description

The Y-Distributor M12 Industrial Connector is a robust solution designed for efficient data and power transmission in industrial environments. This product features standard M12 connector interfaces with 4-pin A coding, offering both male and female connectors to accommodate various connection needs.

Technical Parameter

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

Technical Data

Circuit diagram Coding Rated current Voltage Pin assignment Model No.
IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded A 4A 250V IP67 M12 Y Distributor Connector Male 4 Pin To Female 4 Pin A Coded YM4-2F4/Y14A

*For more customization details,please consult relevant technical personnel
