Dexterous Finger Linear Actuator--150N
Dexterous Finger Linear Actuator--150N
Specifications
Communication Protocol :
CAN FD / EtherCAT
Certification :
CE ROHS
Maximum Linear Speed :
40mm/s
Model Number :
F90N
Stroke :
10mm
Rated Voltage :
DC12V ±10%
Place of Origin :
CHINA
Overall Dimension :
11mm × 109mm
Brand Name :
SENINTER
Maximum Thrust Force :
150N
Description


This linear actuator is designed for linear joints on humanoid robot limbs. It integrates drive system, transmission structure, force sensing and position feedback as a single unit, equipped with large-lead planetary roller screw, four-point contact bearing, high-performance frameless torque motor, high-precision inductive encoder and high-precision tension force sensor.

  • High Thrust Density

    It provides a maximum thrust of up to 8 kN with compact and lightweight dimensions, meeting the weight reduction demands of humanoid robots.

  • Dual Full Closed-Loop Sensing

    Position and force dual closed-loop control enables precise flexible motion, landing buffering and external force detection.

  • Highly Integrated Monolithic Structure

    The motor, screw, sensors and bearings are entirely encapsulated inside the cylinder, simplifying wiring layout and improving overall assembly efficiency.

  • Superior Dynamic Response

    The combination of frameless torque motor and large-lead screw delivers fast extension and retraction, suited for high-dynamic gaits including walking, running and jumping.

  • Shock Resistance & Durability

    The planetary roller screw paired with heavy-load bearings withstands impact loads from robotic gaits, extending the service life of the whole actuator.

 Dexterous Finger Linear Actuator--150N




Micro actuators are deployed for joint driving of dexterous robotic fingers.

The servo electric cylinder is a modular unit with integrated servo motor and lead screw assembly. It transforms the rotary output of the servo motor into precise linear displacement, representing a groundbreaking new generation solution for high-accuracy linear motion systems.

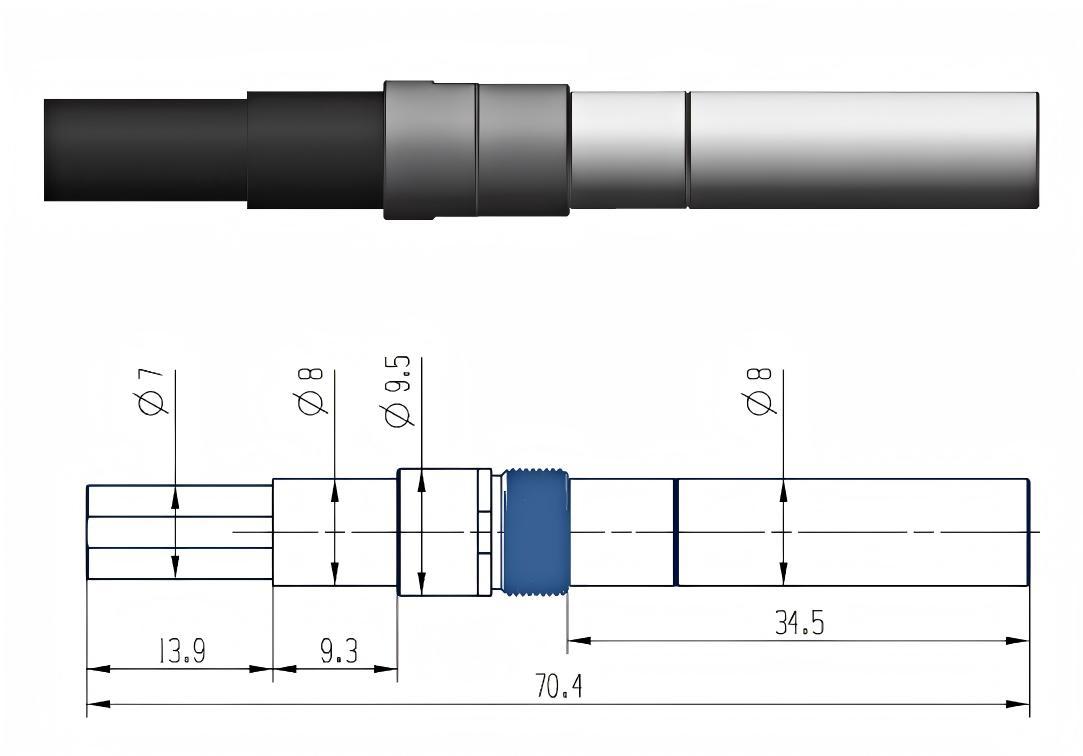

 Dexterous Finger Linear Actuator--150N


No. Specifications Data
1 Overall Dimension Φ9.5×70.4mm
2 Maximum Thrust Force 150N
3 Maximum Linear Speed 40mm/s
4 Stroke Length 10mm
5 Net Weight 0.024kg
6 Integrated Brake Without Brake
7 Communication Protocol CAN FD / EtherCAT
8 Rated Voltage DC12V ±10%
9 Integrated Force Sensor Not Equipped
10 Integrated Drive Controller External
