Humanoid Lower Leg Joint Linear Actuator-8000N
Humanoid Lower Leg Joint Linear Actuator-8000N
Humanoid Lower Leg Joint Linear Actuator-8000N
Humanoid Lower Leg Joint Linear Actuator-8000N
Specifications
Model Number :
F5000
Stroke :
85mm
Rated Voltage :
DC48V ±10%
Protocol :
CAN FD / EtherCAT
Certification :
CE ROHS
Maximum Linear Speed :
300mm/s
Brand Name :
SENINTER
Maximum Thrust Force :
8000N
Place of Origin :
CHINA

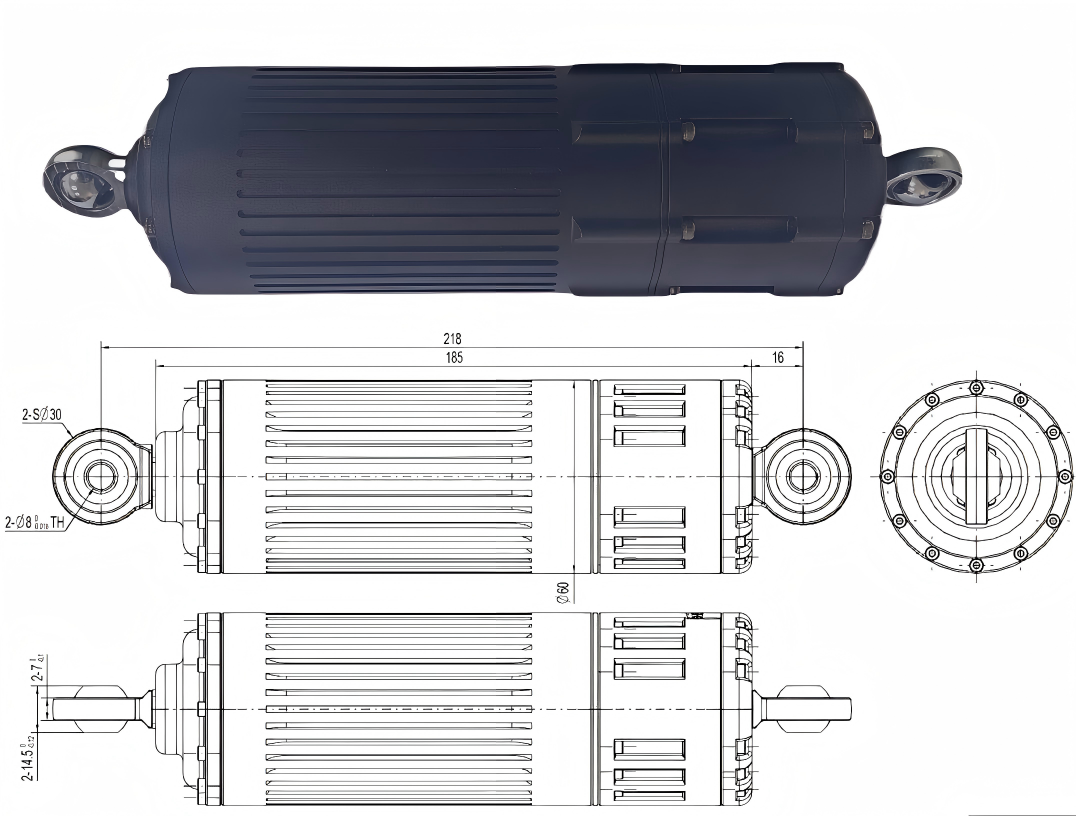

Overall Dimension :
60mm*218mm
Description

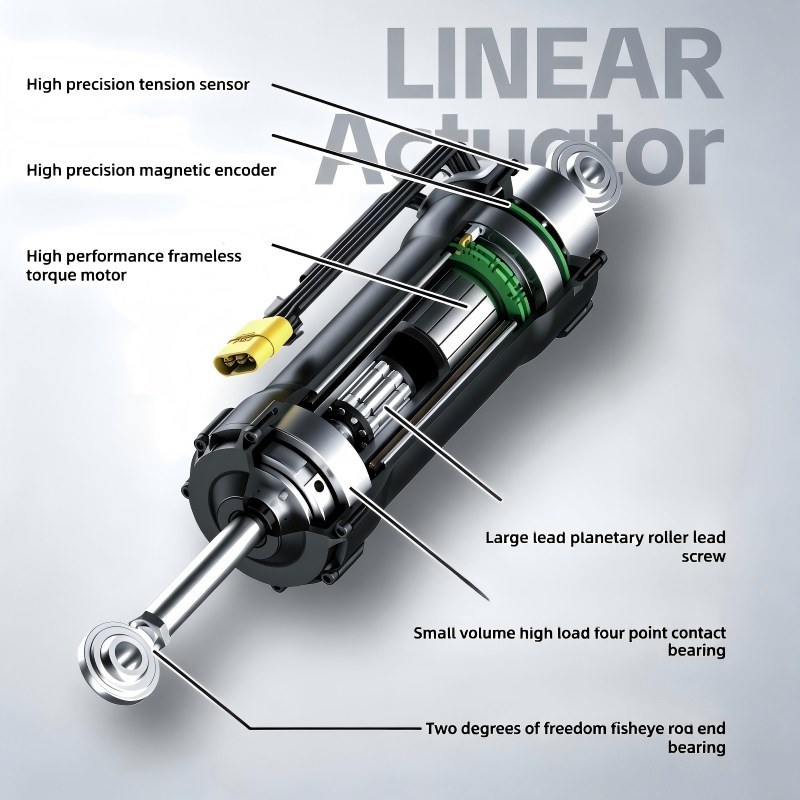

This linear actuator is designed for linear joints on humanoid robot limbs. It integrates drive system, transmission structure, force sensing and position feedback as a single unit, equipped with large-lead planetary roller screw, four-point contact bearing, high-performance frameless torque motor, high-precision inductive encoder and high-precision tension force sensor.

  • High Thrust Density

    It provides a maximum thrust of up to 8 kN with compact and lightweight dimensions, meeting the weight reduction demands of humanoid robots.

  • Dual Full Closed-Loop Sensing

    Position and force dual closed-loop control enables precise flexible motion, landing buffering and external force detection.

  • Highly Integrated Monolithic Structure

    The motor, screw, sensors and bearings are entirely encapsulated inside the cylinder, simplifying wiring layout and improving overall assembly efficiency.

  • Superior Dynamic Response

    The combination of frameless torque motor and large-lead screw delivers fast extension and retraction, suited for high-dynamic gaits including walking, running and jumping.

  • Shock Resistance & Durability

    The planetary roller screw paired with heavy-load bearings withstands impact loads from robotic gaits, extending the service life of the whole actuator.

 Humanoid Lower Leg Joint Linear Actuator-8000N




Micro actuators are deployed for joint driving of dexterous robotic fingers.
This high-thrust linear actuator is customized as the drive unit for humanoid robot shank linear joints, supporting stable walking and standing posture control.

The servo electric cylinder is a modular unit with integrated servo motor and lead screw assembly. It transforms the rotary output of the servo motor into precise linear displacement, representing a groundbreaking new generation solution for high-accuracy linear motion systems.
 Humanoid Lower Leg Joint Linear Actuator-8000N


No. Specifications Data
1 Size 60mm*218mm
2 Max. Force 8000N
3 Max. Speed 300mm/s
4 Stroke 85mm
5 Weight 1.9kg
6 Integrated Brake Without
7 Network Communication CAN FD/EtherCAT
8 Rated Voltage DC48±10%
9 Pressure Sensor Yes
10 Integrated Drive Controller Yes
