Humanoid Upper Arm Joint Linear Actuator--2000N
Humanoid Upper Arm Joint Linear Actuator--2000N
Specifications
Communication Protocol :
CAN FD / EtherCAT
Certification :
CE ROHS
Maximum Linear Speed :
150mm/s
Model Number :
F2000N
Stroke :
40mm
Rated Voltage :
DC48V ±10%
Brand Name :
SENINTER
Maximum Thrust Force :
2000N
Place of Origin :
CHINA
Overall Dimension :
60mm*131mm
Description


This linear actuator is designed for linear joints on humanoid robot limbs. It integrates drive system, transmission structure, force sensing and position feedback as a single unit, equipped with large-lead planetary roller screw, four-point contact bearing, high-performance frameless torque motor, high-precision inductive encoder and high-precision tension force sensor.

  • High Thrust Density

    It provides a maximum thrust of up to 8 kN with compact and lightweight dimensions, meeting the weight reduction demands of humanoid robots.

  • Dual Full Closed-Loop Sensing

    Position and force dual closed-loop control enables precise flexible motion, landing buffering and external force detection.

  • Highly Integrated Monolithic Structure

    The motor, screw, sensors and bearings are entirely encapsulated inside the cylinder, simplifying wiring layout and improving overall assembly efficiency.

  • Superior Dynamic Response

    The combination of frameless torque motor and large-lead screw delivers fast extension and retraction, suited for high-dynamic gaits including walking, running and jumping.

  • Shock Resistance & Durability

    The planetary roller screw paired with heavy-load bearings withstands impact loads from robotic gaits, extending the service life of the whole actuator.

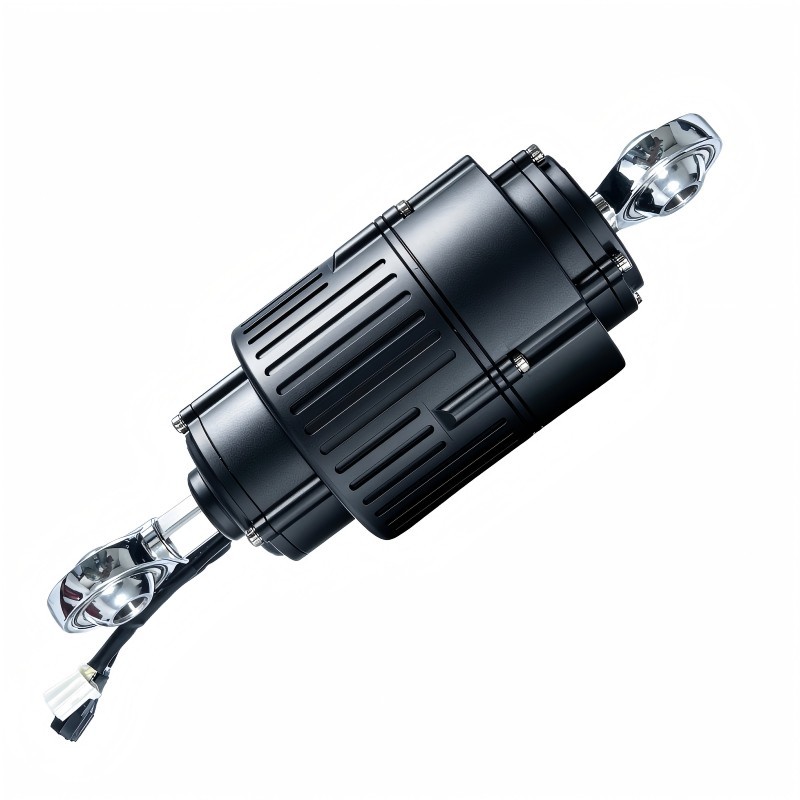

 Humanoid Upper Arm Joint Linear Actuator--2000N




Micro actuators are deployed for joint driving of dexterous robotic fingers.
This linear actuator is specially designed as the drive unit for humanoid robot arm linear joints.

The servo electric cylinder is a modular unit with integrated servo motor and lead screw assembly. It transforms the rotary output of the servo motor into precise linear displacement, representing a groundbreaking new generation solution for high-accuracy linear motion systems.

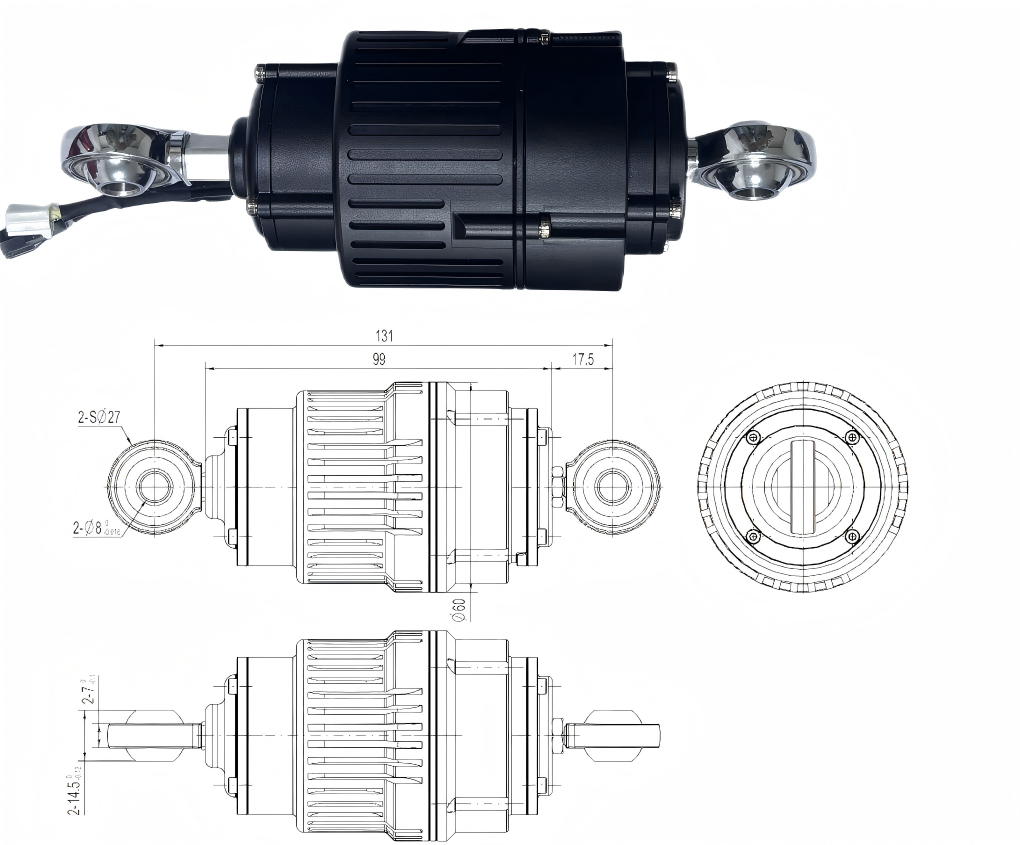

 Humanoid Upper Arm Joint Linear Actuator--2000N


No. Specifications Data
1 Size 60mm*131mm
2 Max. Force 2000N
3 Max. Speed 150mm/s
4 Stroke 40mm
5 Weight 0.75kg
6 Integrated Brake Without
7 Network Communication CAN FD/EtherCAT
8 Rated Voltage DC48±10%
9 Pressure Sensor Yes
10 Internally Integrated Drive Controller Yes
