MINI HD-08 Harmonic Reducer
MINI HD-08 Harmonic Reducer
MINI HD-08 Harmonic Reducer
MINI HD-08 Harmonic Reducer
MINI HD-08 Harmonic Reducer
MINI HD-08 Harmonic Reducer
Specifications
Max Allowable Input Speed :
8500rpm
Place of Origin :
CHINA
Ratio :
30/50 /100
Model Number :
HD-08
Certification :
CE ROHS
Brand Name :
SENINTER
Backlash :
≤20 Arcsec
Description

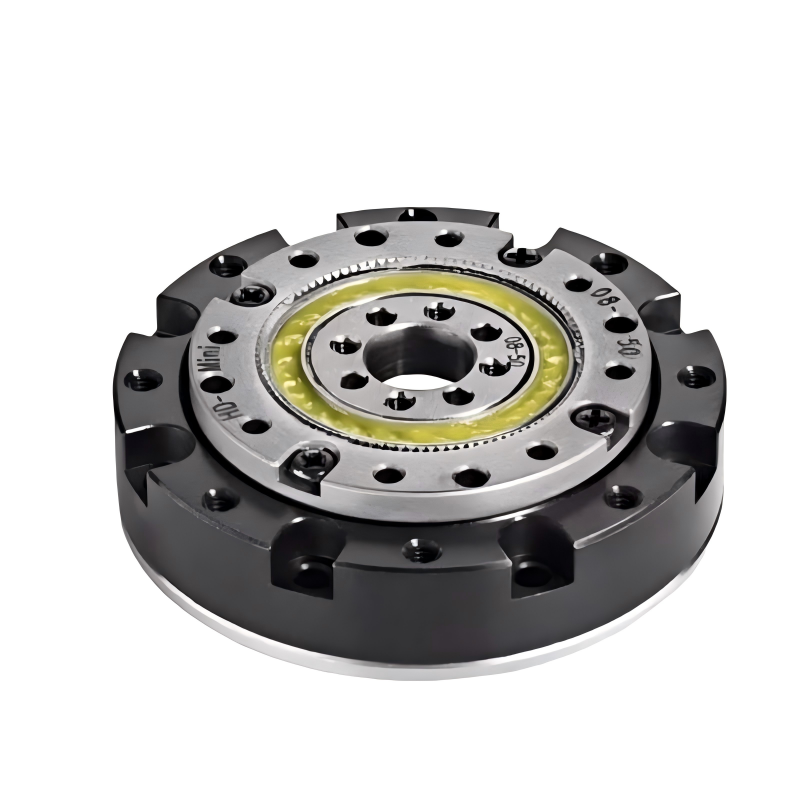

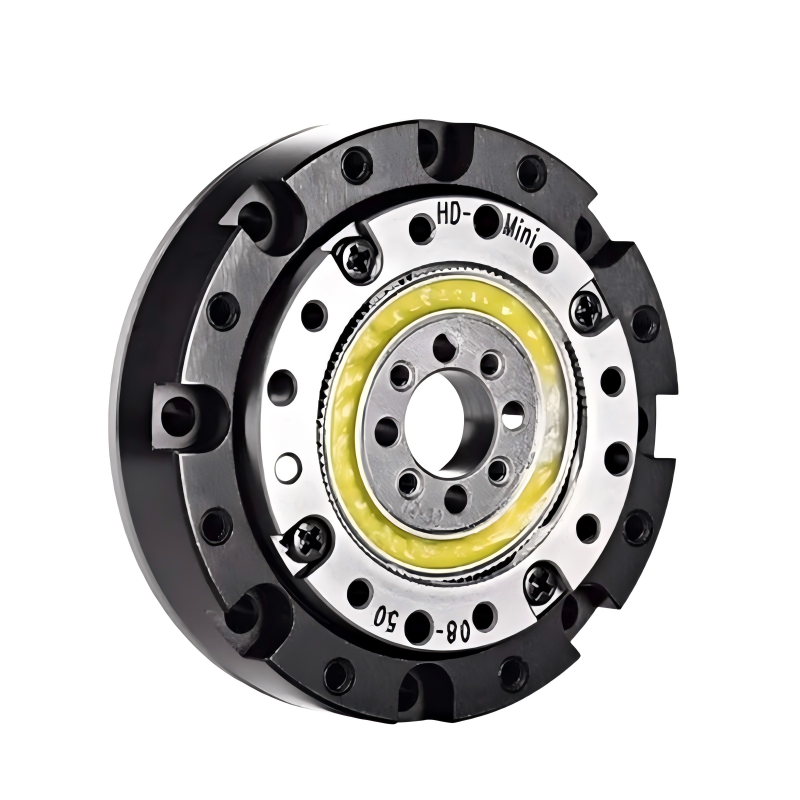

HD Mini-08
Micro Mini Harmonic Reducer
Weight: 0.016kg Dia.: 40mm Thk.: 11.5mm

MINI HD-08 Harmonic Reducer

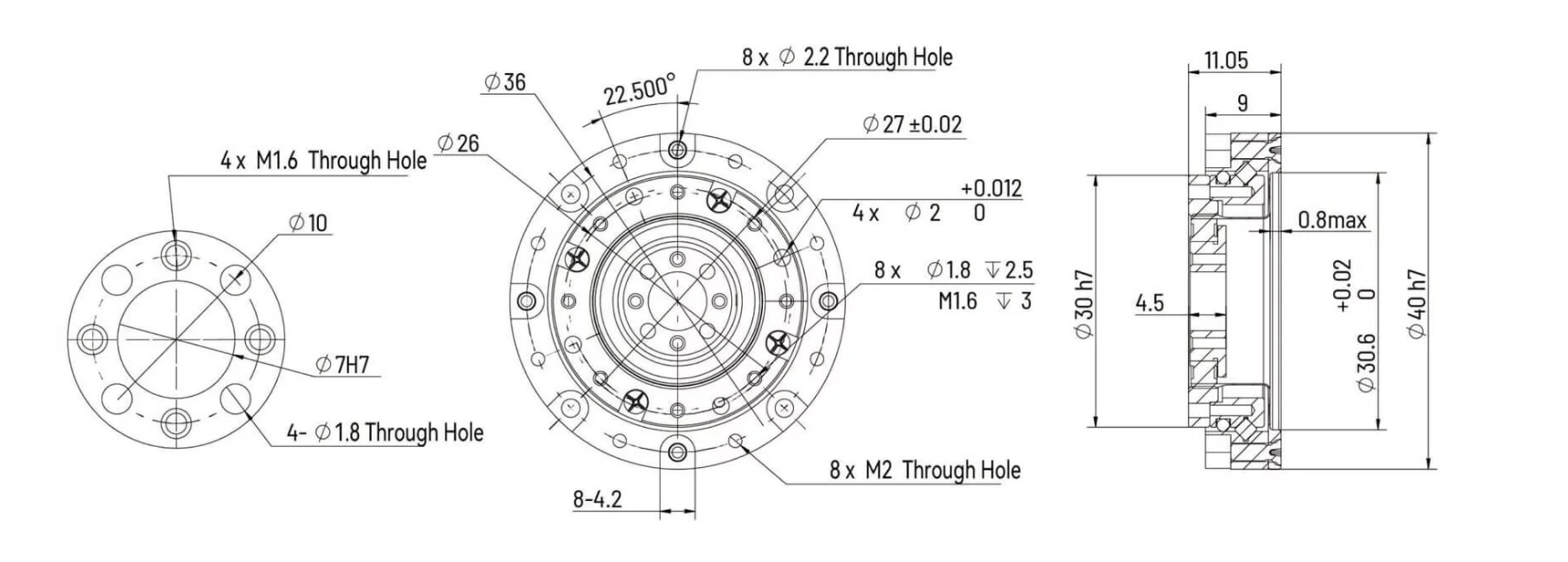

Dimension Drawing

MINI HD-08 Harmonic Reducer


HD mini-08 Harmonic Reducer Parameter Table


Parameter Unit Reduction Ratio 30 Reduction Ratio 50 Reduction Ratio 80 Reduction Ratio 100
Rated Torque at 2000 r/min N·m 0.8 1.6 - 2.4
Allowable Peak Torque (Start-Stop) N·m 1.6 3.1 - 4.6
Max Allowable Average Load Torque N·m 1.3 2.1 - 3.2
Max Instantaneous Allowable Torque N·m 3.2 6.1 - 8.7
Max Allowable Input Speed rpm 8500 8500 - 8500
Allowable Average Speed rpm 3500 3500 - 3500
Moment of Inertia ×10⁻⁴ kg·m² (value not visible in image) (value not visible in image) - (value not visible in image)
Backlash Arcsec ≤20 ≤20 - ≤20
