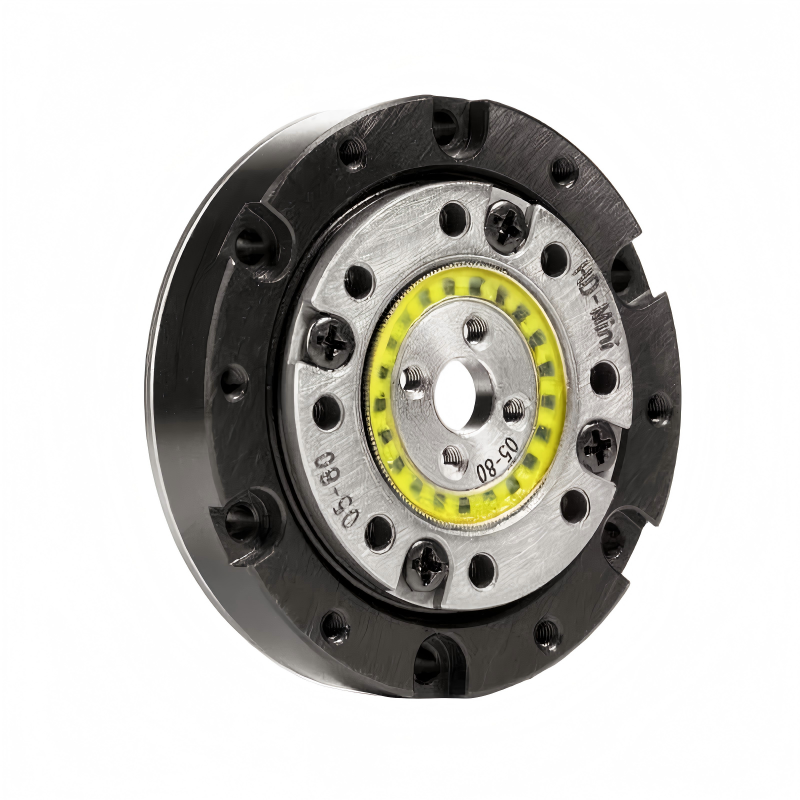

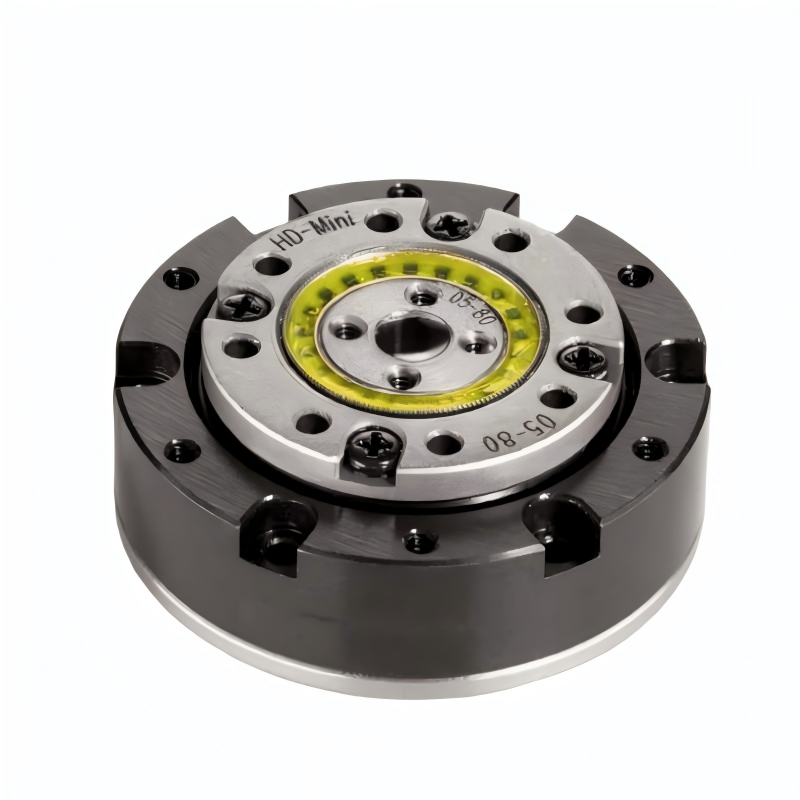

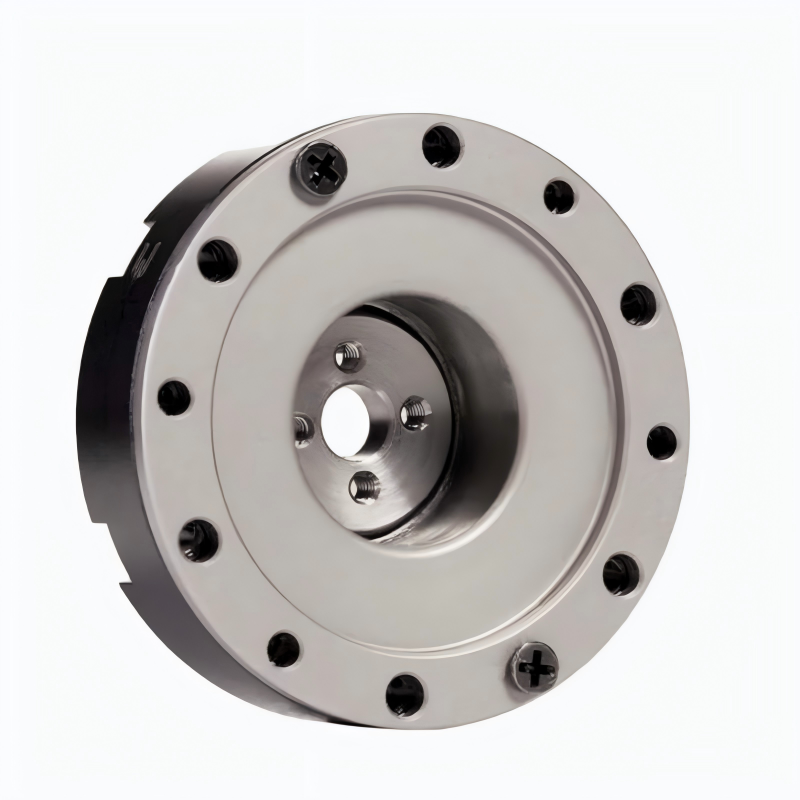

MINI HD-05 Harmonic Reducer
MINI HD-05 Harmonic Reducer
MINI HD-05 Harmonic Reducer
MINI HD-05 Harmonic Reducer
MINI HD-05 Harmonic Reducer
MINI HD-05 Harmonic Reducer
Specifications
Max Allowable Input Speed :
10000rpm
Certification :
CE ROHS
Place of Origin :
CHINA
Ratio :
30/50/ 80
Brand Name :
SENINTER
Backlash :
≤20 Arcsec
Model Number :
HD-05
Description
HD Mini-05
Micro Mini Harmonic Reducer
Weight: 0.04kg Dia.: 32mm Thk.: 10.5mm

MINI HD-05 Harmonic Reducer

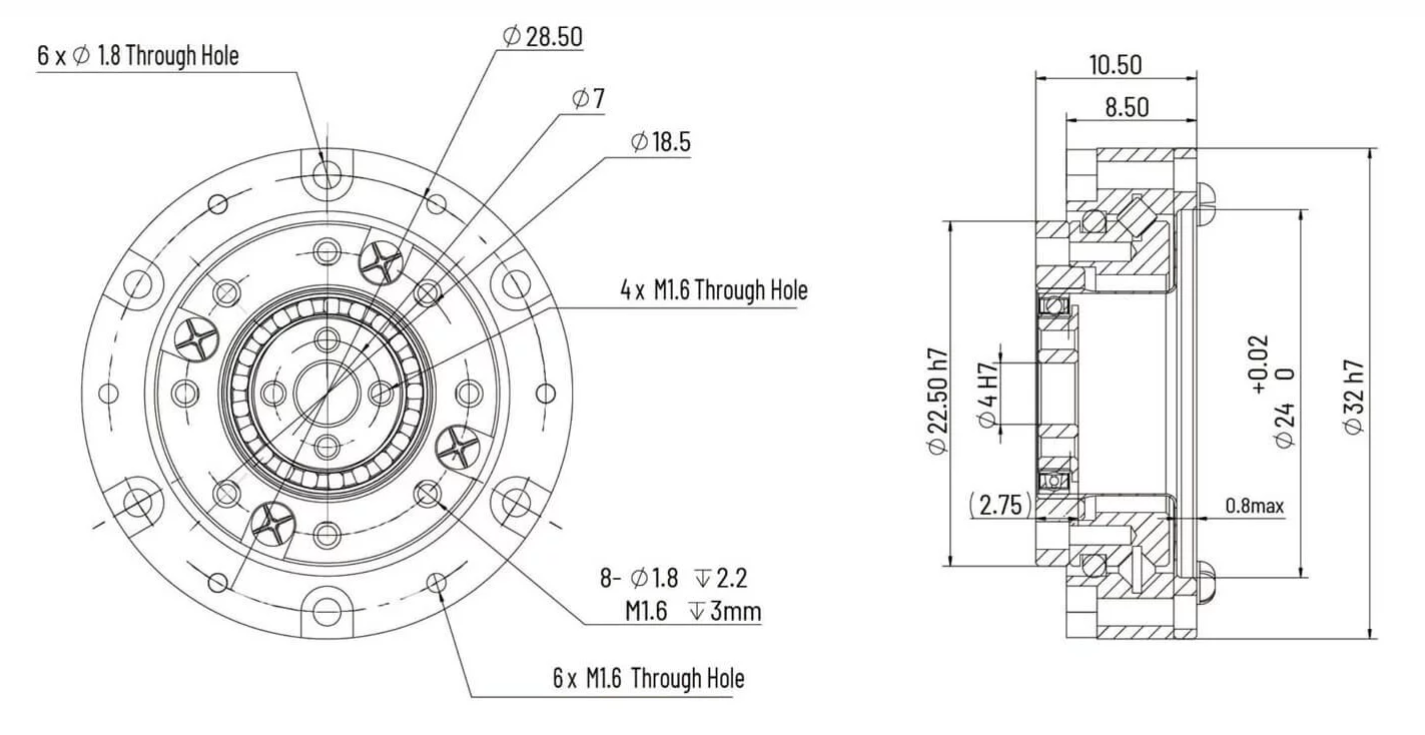

Dimension Drawing


HD mini-05 Harmonic Reducer Parameter Table


Specification Unit Ratio 30 Ratio 50 Ratio 80
Reduction Ratio - 30 50 80
Rated Torque @ 2000 rpm Input N·m 0.23 0.38 0.5
Allowable Peak Torque(Start-Stop Cycle) N·m 0.47 0.87 1.2
Max Allowable Continuous Average Load Torque N·m 0.35 0.5 0.82
Instantaneous Max Allowable Torque N·m 0.85 1.7 2.2
Max Allowable Input Speed rpm 10000 10000 10000
Rated Average Operating Speed rpm 6500 6500 6500
Moment of Inertia 10−4kg⋅m2


Backlash Arcsec ≤20 ≤20 ≤20
