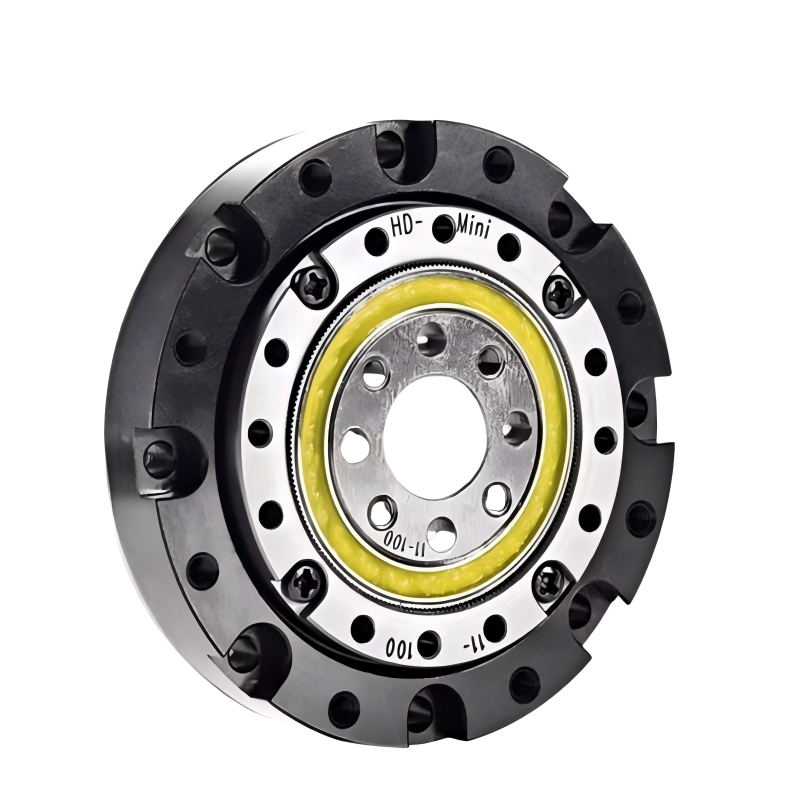

MINI HD-11 Harmonic Reducer
MINI HD-11 Harmonic Reducer
MINI HD-11 Harmonic Reducer
MINI HD-11 Harmonic Reducer
MINI HD-11 Harmonic Reducer
MINI HD-11 Harmonic Reducer
Specifications
Certification :
CE ROHS
Backlash :
≤20 Arcsec
Max Allowable Input Speed :
8500rpm
Model Number :
HD-11
Place of Origin :
CHINA
Ratio :
30/50 /100
Brand Name :
SENINTER
Description
HD Mini-11
Micro Mini Harmonic Reducer
Weight: 0.0127kg Dia.: 52mm Thk.: 13.5mm		 MINI HD-11 Harmonic Reducer

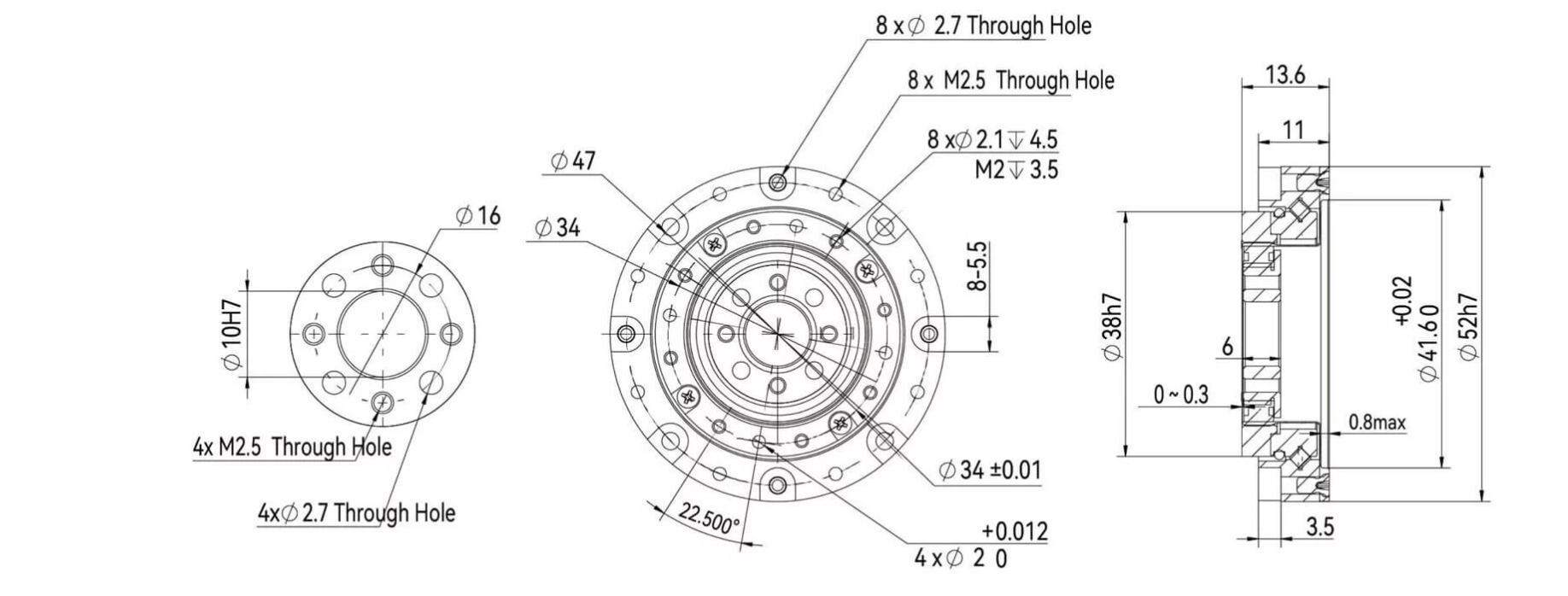

Dimension Drawing

MINI HD-11 Harmonic Reducer


HD mini 11 Harmonic Reducer Parameter Table


Parameter Unit Reduction Ratio 30 Reduction Ratio 50 Reduction Ratio 80 Reduction Ratio 100
Rated Torque at 2000 r/min N·m 2.1 3.2 - 4.8
Allowable Peak Torque (Start-Stop) N·m 4.1 7.8 - 10.5
Max Allowable Average Load Torque N·m 3.1 5.1 - 8.7
Max Instantaneous Allowable Torque N·m 8.2 15 - 23
Max Allowable Input Speed rpm 8500 8500 - 8500
Allowable Average Speed rpm 3500 3500 - 3500
Moment of Inertia ×10⁻⁴ kg·m² (value not visible in image) (value not visible in image) - (value not visible in image)
Backlash Arcsec ≤20 ≤20 - ≤20
