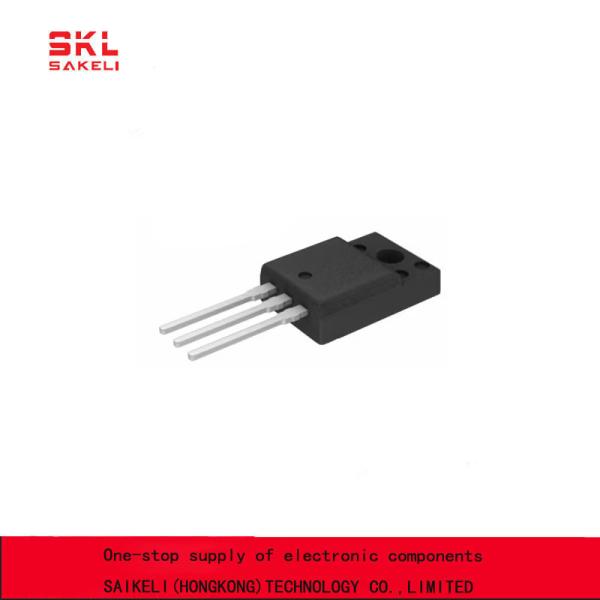

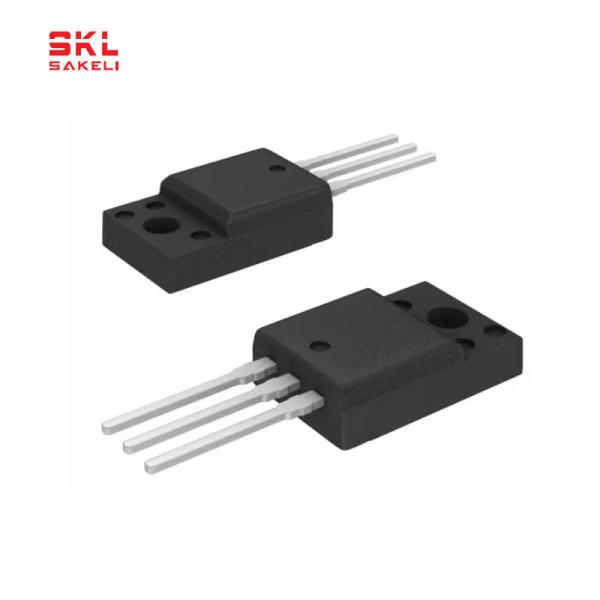

FDPF18N50 MOSFET Power Electronics TO-220-3 500V N-Channel Device Voltage Current Applications
FDPF18N50 MOSFET Power Electronics TO-220-3 500V N-Channel Device Voltage Current Applications
FDPF18N50 MOSFET Power Electronics TO-220-3 500V N-Channel Device Voltage Current Applications
FDPF18N50 MOSFET Power Electronics TO-220-3 500V N-Channel Device Voltage Current Applications
Specifications
Brand Name :
onsemi
Model Number :
FDPF18N50
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
500V
Mounting Type :
Surface Mount
Vgs (Max) :
±30V
Operating Temperature :
-55°C ~ 150°C (TJ)
Description
FDPF18N50 MOSFET Power Electronics
TO-220-3 500V N-Channel Device Voltage Current Applications

FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
500 V
Current - Continuous Drain (Id) @ 25°C
18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
265mOhm @ 9A, 10V
Vgs(th) (Max) @ Id
5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
60 nC @ 10 V
Vgs (Max)
±30V
Input Capacitance (Ciss) (Max) @ Vds
2860 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
38.5W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Through Hole
Supplier Device Package
TO-220F-3
Package / Case
TO-220-3 Full Pack

The FDPF18N50 is an N-channel enhancement mode Field-Effect Transistor (FET) with a maximum drain current of 18A and a drain-source voltage of 500V. It is housed in a TO-220-3 package, which features a 3-pin configuration and is made of thermally conductive material to provide improved cooling. This power MOSFET is specifically designed to minimize on-state resistance and provide higher switching performance. It features a fast switching time, low gate charge, and low forward voltage drop. The FDPF18N50 is suitable for various applications, such as motor control, power supplies, DC-DC converters, and other power management systems.
