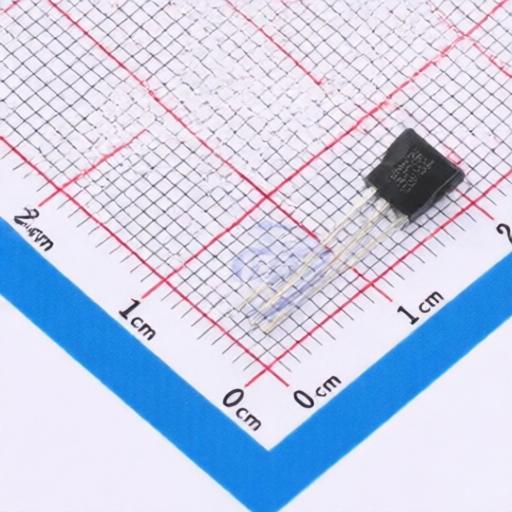

N Channel Switch onsemi J111 Designed for Analog Switching and Chopper Stabilized Amplifiers
N Channel Switch onsemi J111 Designed for Analog Switching and Chopper Stabilized Amplifiers
Specifications
Ciss-Input Capacitance :
-
Pd - Power Dissipation :
-
Drain Current (Idss) :
-
FET Type :
-
RDS(on) :
-
Gate-Source Breakdown Voltage (Vgss) :
-
Gate-Source Cutoff Voltage (VGS(off)) :
-
Description :
TO-92-3L JFETs RoHS
Mfr. Part # :
J111
Model Number :
J111
Package :
TO-92-3L
Description

ON Semiconductor J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113 N-Channel Switch

This device is designed for low-level analog switching, sample and hold circuits, and chopper-stabilized amplifiers. Sourced from process 51, the source and drain are interchangeable.

Product Attributes

  • Brand: ON Semiconductor
  • Origin: Fairchild Semiconductor integration
  • Trademarks: ON Semiconductor, Fairchild Semiconductor

Technical Specifications

Part NumberTop MarkPackagePacking MethodVDG (V)VGS (V)IGF (mA)TJ, TSTG (C)PD (mW)RJA (C/W)V(BR)GSS (V)IGSS (nA)VGS(off) (V)ID(off) (nA)IDSS (mA)rDS(on) ()Cdg(on)/Csg(on) (pF)Cdg(off) (pF)Csg(off) (pF)
J111J111TO-92 3LBulk35-3550-55 to 150625200-35-1.0-3.0 to -10.01.02030285.05.0
J111J111TO-92 3LTape and Reel35-3550-55 to 150625200-35-1.0-3.0 to -10.01.02030285.05.0
J111J111TO-92 3LAmmo35-3550-55 to 150625200-35-1.0-3.0 to -10.01.02030285.05.0
J112J112TO-92 3LBulk35-3550-55 to 150625200-35-1.0-1.0 to -5.01.05.050285.05.0
J112J112TO-92 3LTape and Reel35-3550-55 to 150625200-35-1.0-1.0 to -5.01.05.050285.05.0
J112J112TO-92 3LTape and Reel35-3550-55 to 150625200-35-1.0-1.0 to -5.01.05.050285.05.0
J112J112TO-92 3LAmmo35-3550-55 to 150625200-35-1.0-1.0 to -5.01.05.050285.05.0
J113J113TO-92 3LBulk35-3550-55 to 150625200-35-1.0-0.5 to -3.01.02.0100285.05.0
J113J113TO-92 3LAmmo35-3550-55 to 150625200-35-1.0-0.5 to -3.01.02.0100285.05.0
J113J113TO-92 3LAmmo35-3550-55 to 150625200-35-1.0-0.5 to -3.01.02.0100285.05.0
MMBFJ1116PSOT-23 3LTape and Reel35-3550-55 to 150350357-35-1.0-3.0 to -10.01.02030285.05.0
MMBFJ1126RSOT-23 3LTape and Reel35-3550-55 to 150350357-35-1.0-1.0 to -5.01.05.050285.05.0
MMBFJ1136SSOT-23 3LTape and Reel35-3550-55 to 150350357-35-1.0-0.5 to -3.01.02.0100285.05.0

2410121738_onsemi-J111_C274642.pdf
