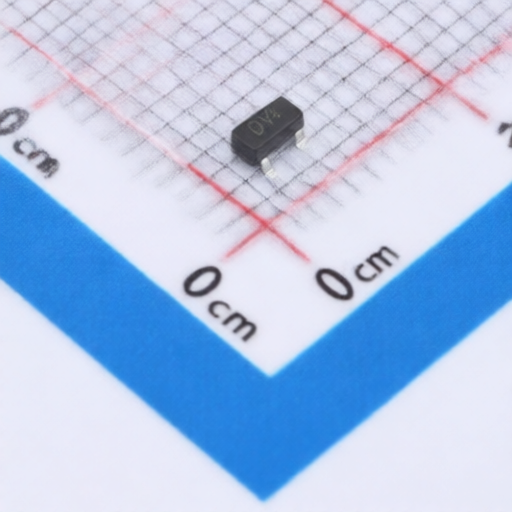

High DC Current Gain Slkor 2SD596-DV4 NPN Transistor SOT-23 Package Suitable for Electronic Circuits
High DC Current Gain Slkor 2SD596-DV4 NPN Transistor SOT-23 Package Suitable for Electronic Circuits
Specifications
Current - Collector Cutoff :
100nA
Emitter-Base Voltage(Vebo) :
5V
DC Current Gain :
400@100mA,1V
Transition frequency(fT) :
170MHz
Number :
1 NPN
Vce Saturation(VCE(sat)) :
600mV@700mA,70mA
type :
NPN
Pd - Power Dissipation :
200mW
Current - Collector(Ic) :
700mA
Collector - Emitter Voltage VCEO :
25V
Description :
400@100mA,1V 1 NPN NPN 200mW 700mA 25V SOT-23 Single Bipolar Transistors RoHS
Mfr. Part # :
2SD596-DV4
Model Number :
2SD596-DV4
Package :
SOT-23
Description

Product Overview

The 2SD596 is an NPN transistor offering high DC current gain, making it a complementary part to the 2SB624. It is designed for applications requiring efficient current amplification and is suitable for various electronic circuits.

Product Attributes

  • Brand: slkormicro
  • Product Type: NPN Transistors
  • Package: SOT-23

Technical Specifications

Parameter Symbol Rating Unit Test Conditions Min Typ Max
Absolute Maximum Ratings (Ta = 25)
Collector - Base Voltage VCBO 30 V
Collector - Emitter Voltage VCEO 25 V
Emitter - Base Voltage VEBO 5 V
Collector Current - Continuous IC 700 mA
Collector Power Dissipation PC 200 mW
Junction Temperature TJ 150
Storage Temperature Range Tstg -55 to 150
Electrical Characteristics (Ta = 25)
Collector- base breakdown voltage VCBO 30 V Ic= 100 A IE= 0
Collector- emitter breakdown voltage VCEO 25 V Ic= 1 mA IB= 0
Emitter - base breakdown voltage VEBO 5 V IE= 100A IC= 0
Collector-base cut-off current ICBO nA VCB= 30 V , IE= 0 100
Emitter cut-off current IEBO nA VEB= 5V , IC=0 100
Collector-emitter saturation voltage (Note.1) VCE(sat) V IC=700 mA, IB=70mA 0.6
Base - emitter saturation voltage (Note.1) VBE(sat) V IC=700 mA, IB=70mA 1.2
Base - emitter voltage (Note.1) VBE V VCE= 6V, IC= 10mA 0.6 0.7
DC current gain (Note.1) hFE(1) VCE= 1V, IC= 100mA 110 400
DC current gain (Note.1) hFE(2) VCE= 1V, IC= 700mA 50
Collector output capacitance Cob pF VCB= 6V, IE= 10mA , f=10MHz 12
Transition frequency fT MHz VCE= 6V, IC= 10mA 170
Classification of hfe(1)
Type
2SD596-DV1 110-180
2SD596-DV2 135-220
2SD596-DV3 170-270
2SD596-DV4 200-320
2SD596-DV5 250-400
Marking DV1, DV2, DV3, DV4, DV5
Simplified outline (SOT-23) Dimensions
DIMENSIONS (mm are the original dimensions) A A1 b c D E
max. 0.1 0.48 0.38 0.15 0.09 3.0 2.8
1.4 1.2 0.95 e 1.9 2.5 2.1
0.55 0.45 0.1 0.2

2410010103_Slkor-2SD596-DV4_C33962557.pdf
