Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry
Specifications
Brand Name :
Huihao
Model Number :
Self Cleaning Screen Mesh
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union.PAYPAL
Supply Ability :
1000PCS PER 7 DAYS
Delivery Time :
5-8 WORK DAYS
Packaging Details :
1.In bulk. 2.Stardard exported wooden boxes. 3.As your request.
Material :
Stainless Steel Wire, Low Carbon, Galvanized Steel
Type :
Plate Type Or Weave Type Or Frame Type
Dimensions :
585 × 170mm, 635 × 1253mm, 913 × 650mm, 720 × 1220mm etc.
Weight :
12-17kgs
Description

Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry


Shale Shaker Screen, Self Cleaning Screen Mesh is a kind of common oil vibrating screen mesh,which is mainly

composed of steel framework and two or three layers stainless steel net cloth.


Shale Shaker Screen ,Self Cleaning Screen Mesh is welded high strength square steel tube or flat steel,what's more,

many fortified support bars are filed.


Mesh cloth can be combined with frame through the metal plate, or glued directly on the frame.

Oil vibrating sieves mesh is attached with special rubber plug which could repair damaged screen

surface so as to save time.


Our company can manufacture various steel frame screen according to the requirements of

different customers.


>>> Introduction Of The Oil Vibrating Screens,Self Cleaning Screen Mesh

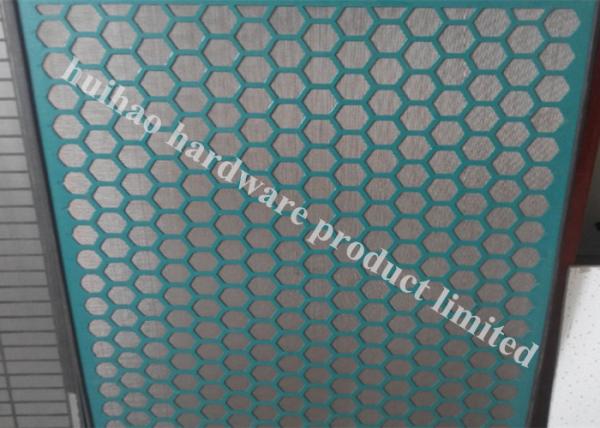

1. Plate Type Shale Shaker Screen,Self Cleaning Screen Mesh


Plate type shle shaker screen is one of the most commonly used oil vibrating screens. It can be widely used in drilling operation under different conditions. The products are usually consist of two or three layers stainless steel wire cloth glue on the hole in the metal plate. At the same time, the screen with special rubber plug to repair net surface damage, can effectively save time, reduce the production cost.


Range Of Mesh Dimension Brand Of Shaker Weight(kg)
16-325 903*1155mm SWACO BEW-3 5.6
16-325 1212*1141mm SWACO ALS-11 9
16-325 697*1050mm FLC500 Series 6
16-325 697*1053mm FLC2000 4.2
16-325 697*846mm FLC313M 4
16-325 915*1150mm BRANDT LCM-20 8.6
16-325 720*1220mm KEMTRON KTL48 Series 5.6
16-250 700*1165mm S250 4.6
16-250 1186*1280mm ZX60 9.2


Applications of Plate type shale shaker screen,Self Cleaning Screen Mesh

  • Applied in oil industry for solid removal.
  • Used in shale shaker for oil filtration.
  • Applied in well drilling equipment.

Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry

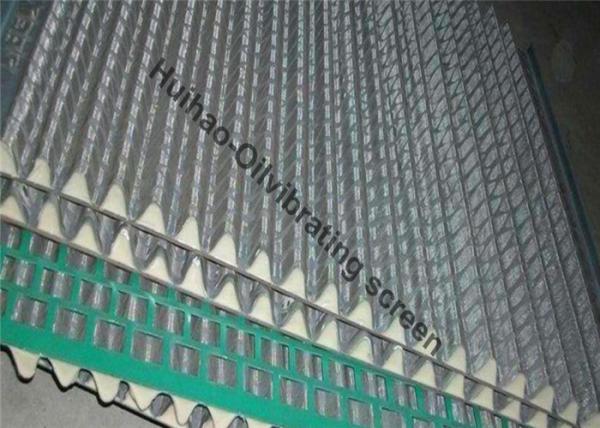

2. Wave Type Shale Shaker Screen,Self Cleaning Screen Mesh


Wave type shale shaker screen like unique wavy, installation can be hook edge or steel frame. Compared with plate type oil vibrating screen, wave type oil vibrating screen's effective area is big during high drilling fluid processing.


Range Of Mesh Dimension Brand Of Shaker Weight(kg)
80-210 635*1253mm BRANDT BL-50 17.5
80-210 697*1050mm FLC500 Series 7.5
80-210 697*1053mm FLC2000 5.8
80-210 915*1150mm BRANDT LCM-20 10


Application in Linear Motion Shale Shaker

Application in Balanced Elliptical Shale Shaker

Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry

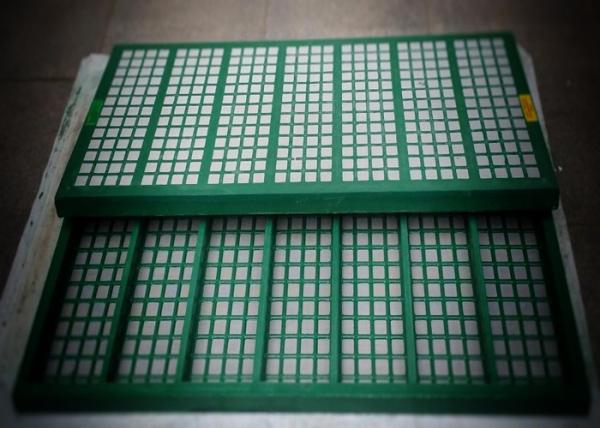

3. Frame Type Shale Shaker Screen,Self Cleaning Screen Mesh


Frame type Shale Shaker Screen is a kind of commonly used oil vibrating sieving screens. It is mainly consist of the steel framework and 2 to 3 layers of stainless steel wire mesh cloth. The framework is welded together by a high strength of square steel tube or flat steel, and with extra strengthening supporting tendons. Mesh cloth can be combined with the metal plate and frame, or directly bonded on the frame. Each screen were repaired with special rubber plug to net surface damage.


Range Of Mesh Dimension Brand Of Shaker Weight(kg)
16-325 903*1155mm SWACO NON900SE 12
16-325 623*1253mm BRANDT BL-50 13.5
16-325 913*650mm BRANDT VSM-300 12.5
16-325 720*1220mm KEMTR ON KTL48 Series 17
16-325 712*1181mm SF300 17


Specifications:

  • Screen material: stainless steel wire.
  • Screen layers: two or three.
  • Colors: black, blue, red, gray, etc.

Stainless Steel Shale Shaker Screen, Self Cleaning Screen Mesh For Oil Industry


>>> Package & Delivery of the Shale Shaker Screen,Self Cleaning Screen Mesh


1.In bulk.

2.Stardard exported wooden cases.

3.As your request.


Pls email me (david@huihaomesh.com) for better price or catalog .
