Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Hook Type Steel Wire Mesh For Quarry Screen
Specifications
Brand Name :
huihaokasite
Model Number :
Heavy Woven Wire Screens
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
20 PIECES
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 PCS PER 7 DAYS
Delivery Time :
8 WORK DAYS
Packaging Details :
PALLETS
Price :
USD45/PC
material :
high carbon steel, stainless steel
wire diameter :
1mm-12mm
aperture :
5mm-130mm
width :
less than 3 meters
length :
to your order
usage :
qurry
Description

Hook Type Steel Wire Mesh For Quarry Screen


Product details of Woven Wire Mesh Quarry Screen


Woven Wire Mesh Quarry Screen are manufactured in either High Tensile Steel or Stainless steel, in either plain or intercrimp profiles,

and a variety of weave patterns, including square, rectangular and double or triple shute.


Huihao carries an extensive stock of ‘slab’ woven screens that can be cut and hooked to size on demand. The stock profiles have

been selected based on our customers’ preferences and local conditions, to ensure downtime is minimised and customised screens

are shipped to site and ready to be installed in days.


Specification of Woven Wire Mesh Quarry Screen


Hole size

(mm)

Light types

Middle types

Heavy types

wire diameter
(mm)

open area%

wire diameter
(mm)

open area%

wire diameter
(mm)

open area%

125.0



10.0

86

12.5

83

112



10

84

12.5

81

100



10

83

12.5

79

90



10

81

12.5

77

80



10

79

12.5

75

71



10

77

12.5

72

63

8

79

10

74

12.5

70

56

8

77

10

72

12.5

67

50

6.5

79

8

74

10

69

45

6.5

77

8

72

10

67

40

6.5

75

8

69

10

64

36

5.0

77

6.5

72

8

67

32

5.0

75

6.5

70

8

64

28

5.0

72

6.5

67

8

60

25

5.0

69

6.5

64

8

57

22

4.0

72

5.0

66

6.3

60

20

4.0

69

5.0

64

6.3

58

18

4.0

67

5.0

61

6.3

55

16

3.0

70

4.0

64

5

58

14

3.0

67

4.0

60

5

54

13

3.0

65

4.0

58

5

52

11

2.5

67

3.0

61

4

54

10

2.5

64

3.0

58

4

51

9

2.0

61

3.0

61

4.0

48

8

2.0

64

2.5

58

3.0

51

7

2.0

61

2.5

55

3.0

48

6

2.0

56

2.5

50

3.0

43

5

2.0

54

2.5

44

3.0

38

4.5

1.8

51

2.2

45

2.5

41

4

1.6

51

2.0

44

2.2

41

3

1.2

50

1.5

40

2.0

38

2.0

0.8

50

1.2

41

1.5

40

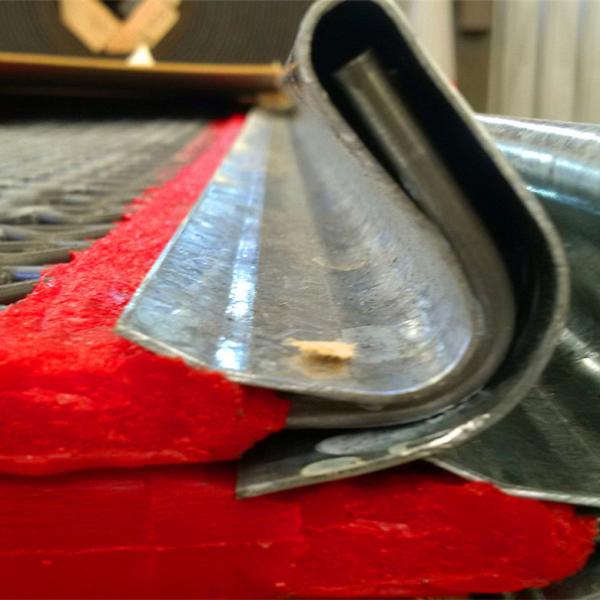

Heavy Screen Edges / Hooks of Woven Wire Mesh Quarry Screen


The most efficient heavy Woven Wire Mesh Quarry Screen are fitted with hooked edges to provide for tensioning. Unless otherwise

specified, hooked edges for heavy and medium type screen cloths are approximately 32mm long (from the inside of the bend to the

end of the hook) and at a 45-60º degree angle from the face of the screen cloth. Lighter screen cloths often use either fold back or

fold forward hooks, and are approximately 19mm high with a 13mm fold.

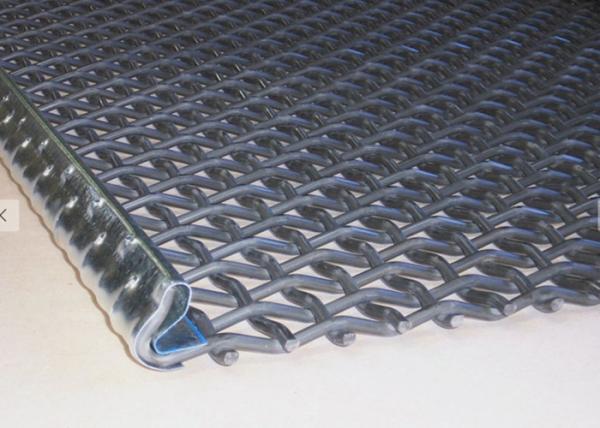

Side Edge Hooks: Suitable for most stationary inclined and horizontal screens


Hook Type Steel Wire Mesh For Quarry Screen


Different Side Clamping methods:


Hook Type Steel Wire Mesh For Quarry Screen

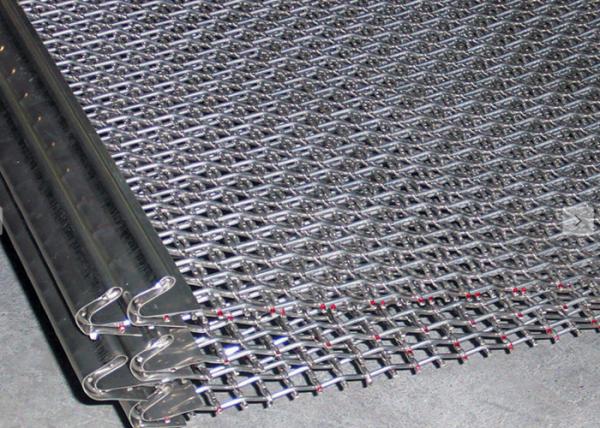

End Tensioned Hooks: Suitable for most mobile screens


Hook Type Steel Wire Mesh For Quarry Screen


End Tensioned Hooks: Suitable for Brick Plants and other industrial applications.


Hook Type Steel Wire Mesh For Quarry Screen
